150A Chassis / Panel Mount Automotive Blade Fuse Block

SKU: S6024
This high current fuse block uses standard automotive type blade fuses. 150A total (25A per fuse) Max. Max Voltage 32VDC. Tin plated copper connections. Size: 93Wx40Hx67mm
$34.55

All Prices Shown are (ex GST)

Bulk Pricing
ea $34.55
4+ $30.91
10+ $27.27
i h

Overview

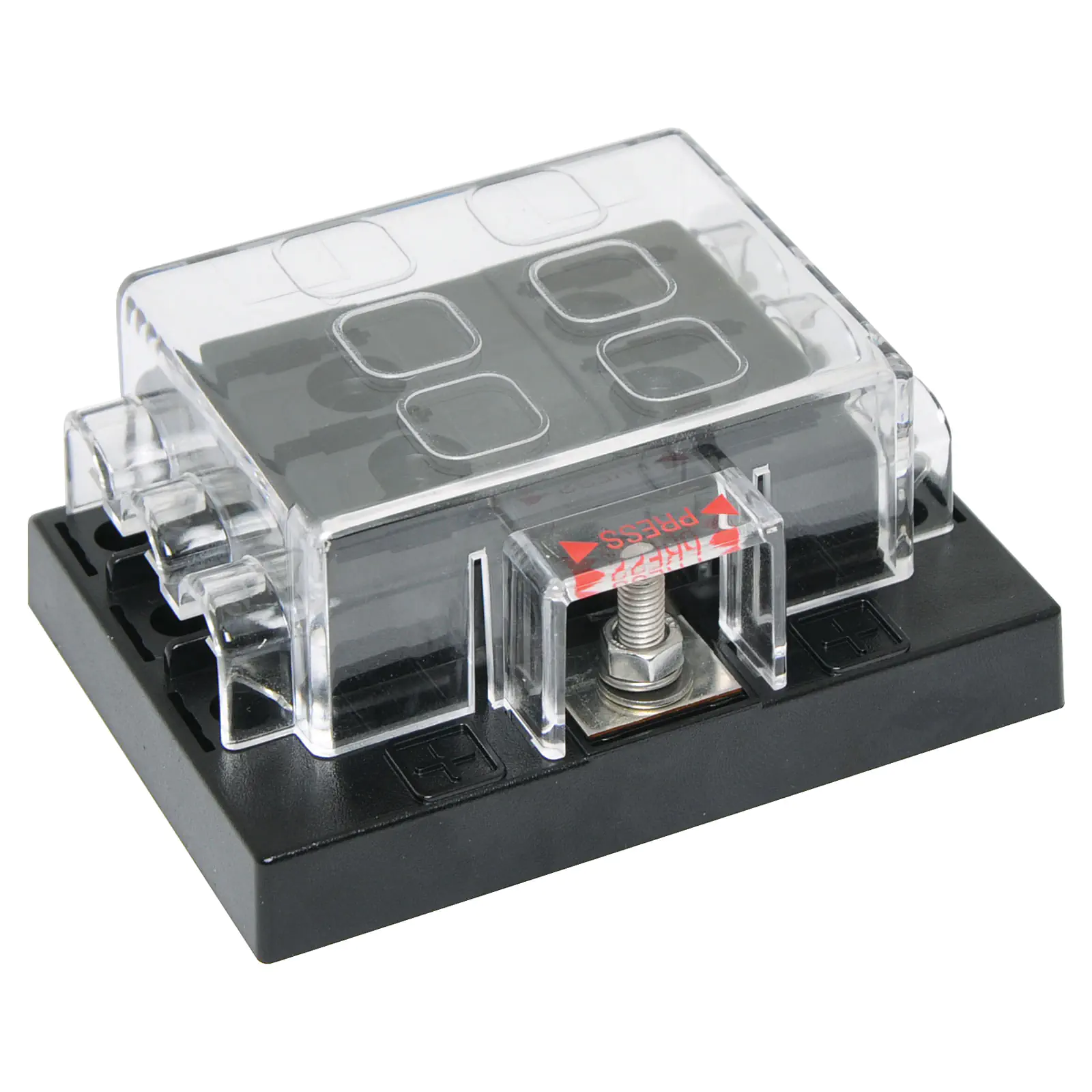

This high current chassis / panel mount fuse block uses standard automotive type blade fuses. It features a single screw terminal 150A input and 6 x spade terminal 25A outputs. 150A total (25A per fuse) Max. Max Voltage 32VDC. Tin plated copper connections. Panel mounted via 4 x 5.5mm diameter holes. Size: 93L x 40H x 67W mm.

Please Note: Fuses not included, they have only been used for photographic purposes





Specifications:



Max Voltage: 32V DC

Current Rating: 150A total (25A per fuse)

Panel Hole Diameter: 4 x 5.5 mm

Dimensions: 93W x 40H x 67 mm



Features:

  • Single screw terminal input
  • 6x 25A spade terminal outputs
  • Tin plated copper connections
