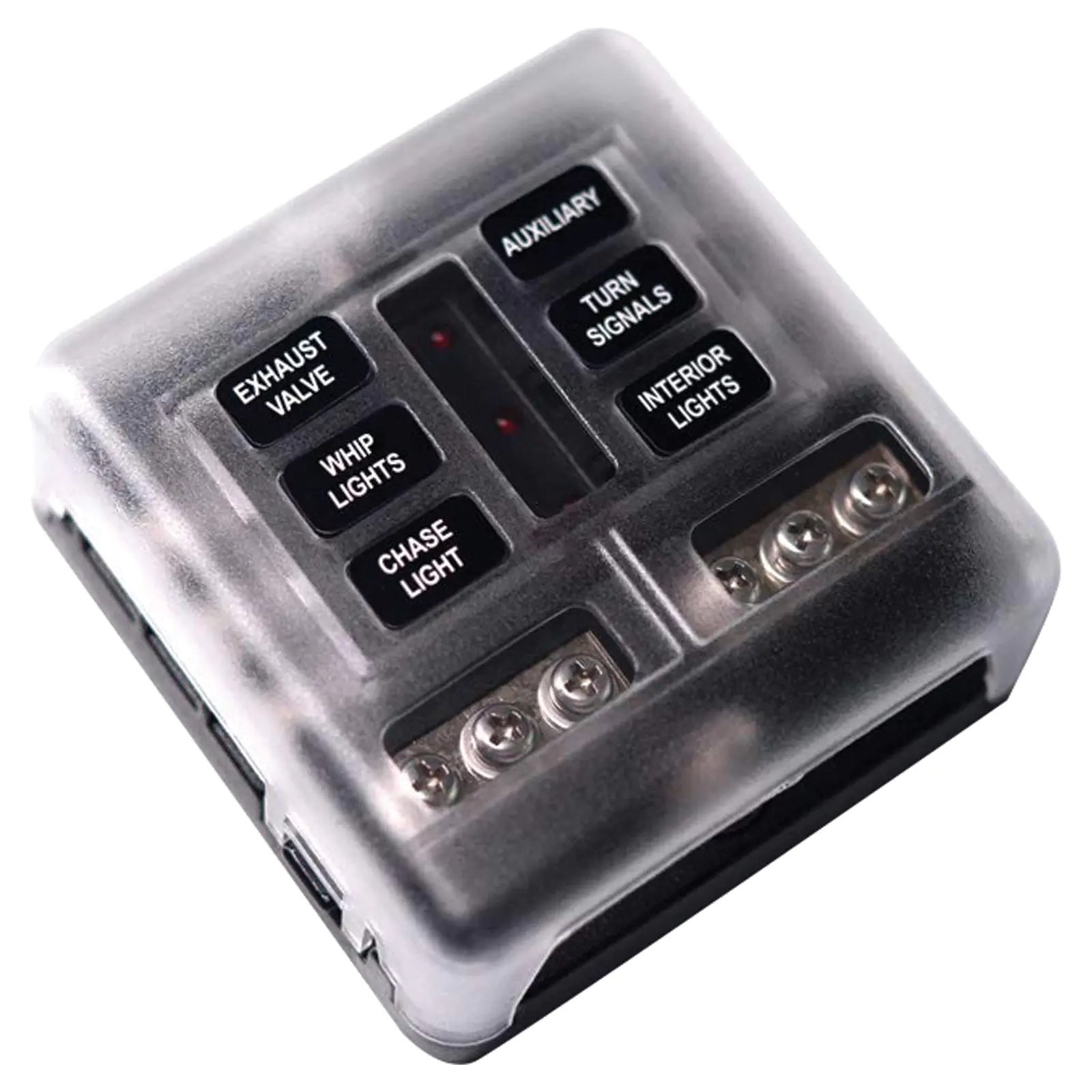

Blade Fuse Panel 6 Way With LED

SKU: S6029
Uses standard automotive type blade fuses. Dedicated earth terminals for each circuit, plus 100A rated M8 negative & positive terminals. Size: 88W x 88D x 36Hmm
$27.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $27.23
2+ $24.50
4+ $21.77
i h

Overview

Uses standard automotive type blade fuses. Dedicated earth terminals for each circuit, plus 100A rated negative & positive terminals. Size: 88W x 88D x 36Hmm. The panel comes with a variety of labels for users to customise their fuse panel to their liking.

Please Note: Not suitable for use with S5540 resettable breakers. Fuse has been used for photographic purposes and is not included.







Specifications:



Main Line

Terminal Rating: M5 threaded studs (100A 32V DC. max)

Wire Size: #4-6AWG



Single Line

Terminal Rating: M4 threaded studs (30A 32V DC. max)

Wire Size: #12-16AWG



General

Current Rating: 100A

Dimensions: 88W x 88D x 36H mm



Features:

    • Dedicated earth terminals
    • Labels for customisation
    • Red LED Indicates when fuse is broken

  •
