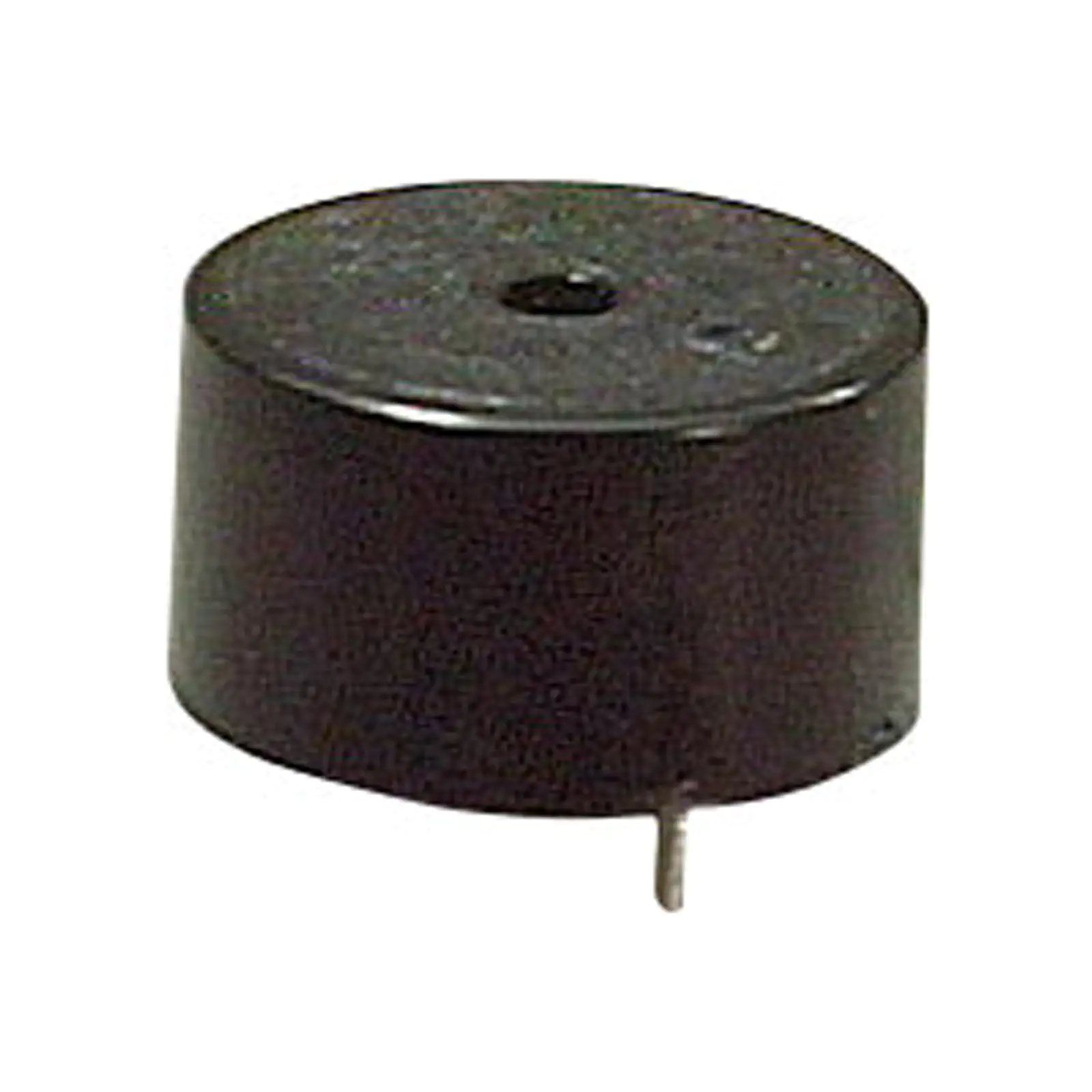

3-15V Mini Piezo High Output Sealed PCB Mount Buzzer

SKU: S6105
Fully sealed PCB mount piezo. 8mm pin spacing.PCB holes 0.8mm
$4.86

All Prices Shown are (ex GST)

Bulk Pricing
ea $4.86
5+ $4.41
20+ $3.91
i h

Overview

Fully sealed PCB mount piezo with sealed design. Powered by 3 to 15V DC. 8mm pin spacing, 14mm diameter. PCB holes 0.8mmØ





Specifications:



SPL Output: 80dB @ 10cm

Supply Voltage: 3-16V DC

Current: 7mA @ 12V DC

Frequency: 4000Hz ±500Hz

Pin Spacing: 8mm

Dimensions: 14Ø x 7.5Hmm

PCB Hole Size: 0.8mm
