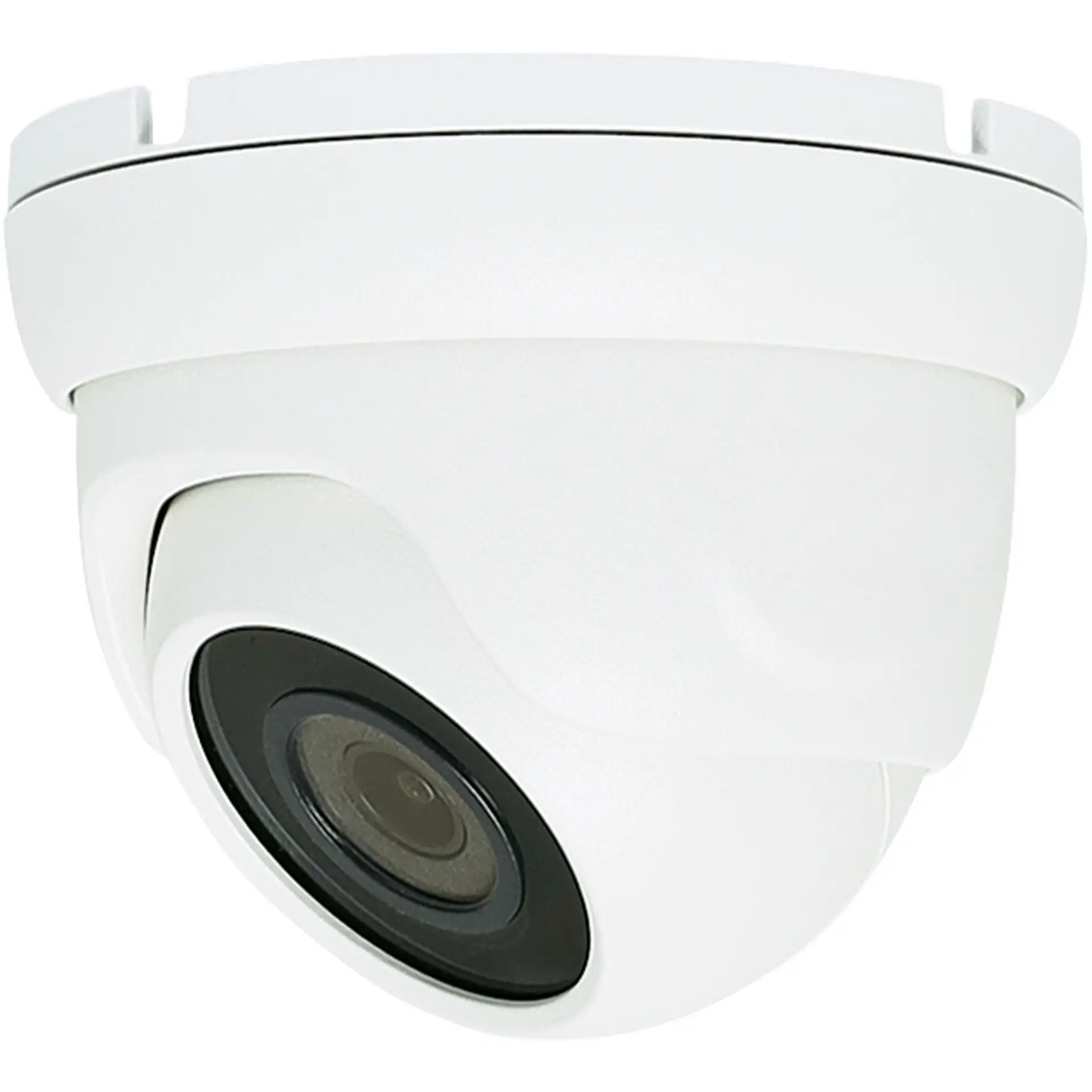

8MP White IR AHD Colour Dome Camera

by: eFocus
SKU: S9119D
Surface mount dome camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution 8MP sensor produces clear crisp video signal. Lens has a fixed 2.8mm wide focal length.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
3+ $81.82
6+ $77.27
i h

Overview

This 8MP White IR AHD Colour Dome Camera is a surface mount camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. With a IP rating of 67 it is suitable to be installed in outdoor areas. High resolution 8MP sensor produces clear crisp video signal. Lens has a fixed 2.8mm wide focal length.







Specifications:



Camera

Image Sensor: 1/2.5” CMOS sensor

Image Resolution: 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080

TV System: PAL/NTSC

Electronic Shutter: Auto

Scanning System: Progressive Scan



Lens

Focus Length: 2.8mm

Focus Control: Fixed

Lens Type: Fixed

IR Cut Filter: YES

Infrared LED: 14µ x 18PCS

Infrared Distance: 20M

IR Status: AGC Auto Control



Camera Features

Day/Night: YES/NO

OSD Menu: YES

WDR: DWDR

UTC: YES

Noise Reduction: DNR

Coaxial Audio: YES (only TVI )

White Balance: AUTO / MANUAL

Gain Control: AUTO



General

Housing: Metal, IP67

Bracket: NO

Operation Temperature: -10° ~ +60° RH95%

Max Storage Temperature: -20° ~ +60° RH95%

Max Power Source: DC12V±10%, 550mA

Dimension: f93 x 74(H) mm

Weight: 400g



Features:

  • 1/2.5” CMOS Sensor
  • AHD/CVI/TVI/CVBS 4 IN 1
  • 2.8mm Fixed Lens
  • IR Distance Max. 20m
  • IP67 Outdoor, OSD & UTC Support



Details

Products specifications

Warranty 12 Months
CCTV & Security
Type Dome Cameras
Resolution WQHD (4MP)
Output Analog Cameras

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
