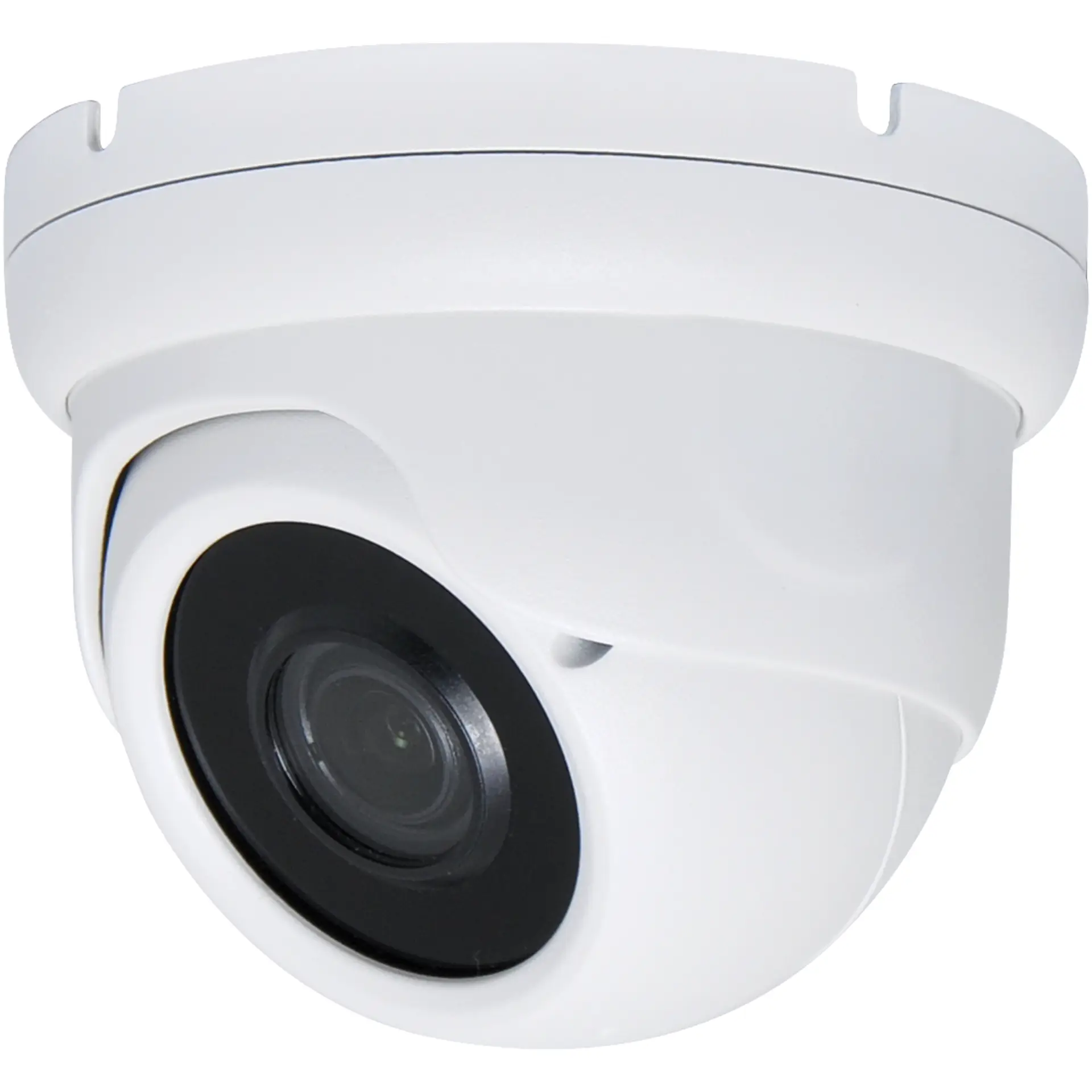

5MP Analog IR Dome Camera

by: eFocus
SKU: S9123H
Surface mount dome cameras housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution Sony sensor produces clear crisp video signal.
$113.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $113.64
3+ $104.55
6+ $95.45
i h

Overview

This surface mount dome camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution Sony sensor produces clear crisp video signal. Lens has an adjustable focal length (2.8-12mm). Specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, carparks etc. Operating temperature down to -10°C for cool room use.

The 1080P function of this camera is only compatible with 1080P AHD DVRs. Video output is selectable between AHD/TVI/CVI/CVBS via the cable toggle control.

This dome camera can be mounted to the wall using S9067 and surface mounted using S9065 - see accessories listed below.





Specifications:



Video Output Mode: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps



Camera

Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080

TV System: PAL/NTSC

Electronic Shutter: AUTO

Scanning System: Progressive Scan



Lens

Focal Length: 2.8-12mm

Focus Control: Manual

Lens Type: Varifocal



Night Vision

IR Cut Filter: YES

Infrared LED: 14µ x 24PCS

Infrared Distance: 30M

IR Status: AGC Auto Control



Camera Features

Day/Night: Yes

OSD Menu: Yes

WDR: DWDR

UTC: Yes

Noise Reduction: DNR

White Balance: Auto/Manual

Gain Control: Auto



General

Housing: Metal IP67

Bracket: No

Operation Temperature: -10℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: DC12V±10%, 750mA

Dimensions: ?119 x 98(H) mm

Weight: 800g

Details

Products specifications

Warranty 12 Months
CCTV & Security
Resolution 1080p AHD, 960H
Output Analog Cameras
Type Dome Cameras
