A 10/100 ethernet over coax transceiver for sending ethernet only (no power) over
coaxial cabling. Two units are required to form a link. Alternatively, it can be used with S 9267 4 way splitter cable to four S 9268 transceivers. Requires 12V DC from either M 9273A or existing 12V supply using P 6715. Maximum coaxial length 2000m.

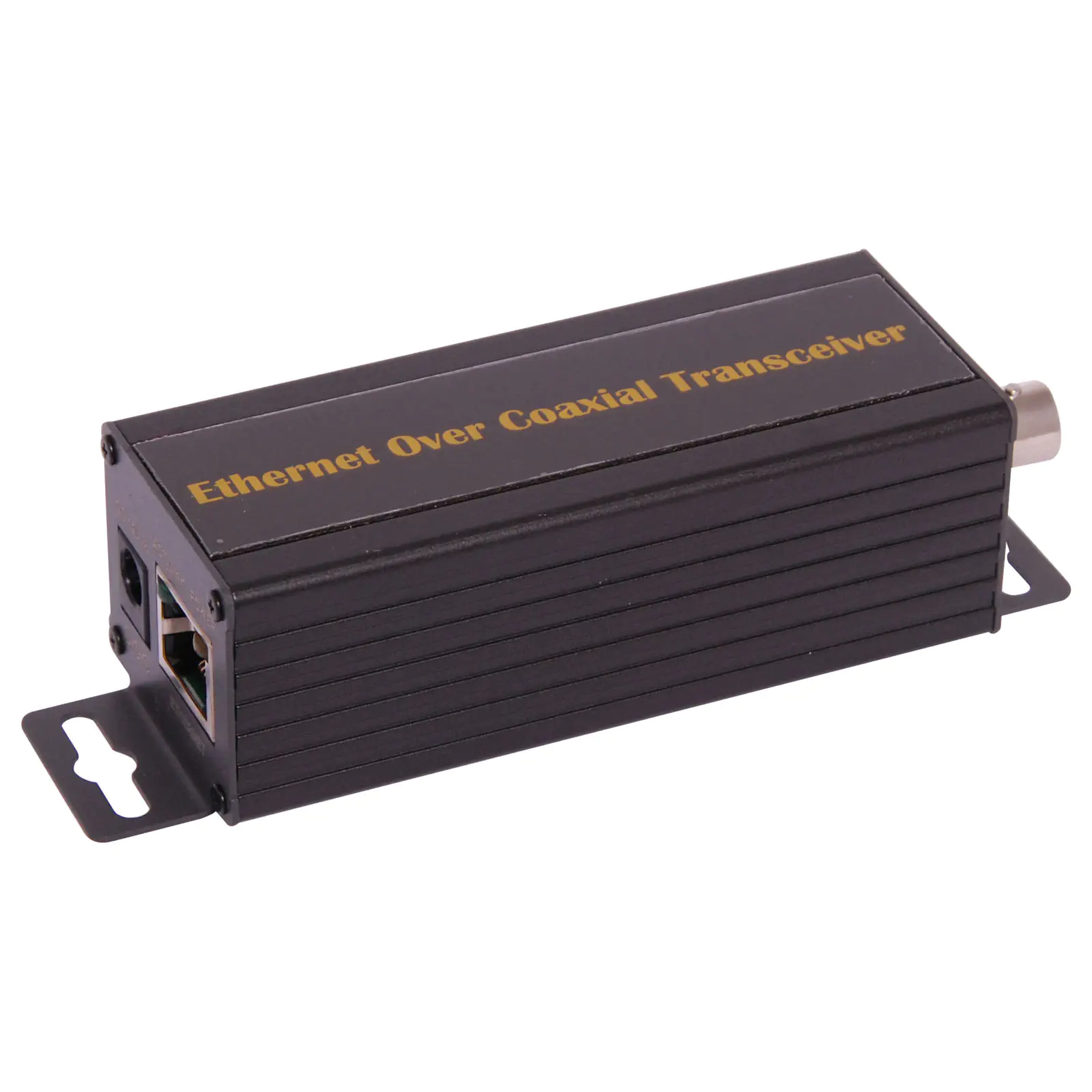

Ethernet Over Coaxial Transceiver

Name: Ethernet Over Coaxial Transceiver
SKU: S9268
Price: 177.27 AUD
Availability: InStock

SKU: S9268

A 10/100 ethernet over coax balun transceiver for sending ethernet only (no power) over coaxial cabling. Two units are required to form a link. Alternatively, it can be used with S 9267 4 way splitter cable to four S 9268 transceivers.

$177.27

All Prices Shown are (ex GST)

Bulk Pricing

ea	$177.27
5+	$168.18
10+	$159.09

i h

Overview
Details
Warranty

Overview

A 10/100 ethernet over coax transceiver for sending ethernet only (no power) over coaxial cabling. Two units are required to form a link. Alternatively, it can be used with S 9267 4 way splitter cable to four S 9268 transceivers. Requires 12V DC from either M 9273A or existing 12V supply using P 6715. Maximum coaxial length 2000m.

Specifications:

Connector Type: 1x BNC

Cable Type: 75-ohm RG59, RG6, or RG11 video-grade coaxial cable

Max. Transmission Distance: 600m (2000ft.) for the RG6 coaxial cable

Ethernet Connector: 1x RJ-45 with LEDs on Connector

Cable Type: Straight through or cross-over Cat5 Cable, Auto MDI/MDIX

Rate: IEEE 802.3x, Auto-Detection for 10/100Base-T and full / half duplex

Output Voltage: IEEE 802.3af/at PSE@ RJ45 Port

LED Indicators: Coaxial Data Signal Strength, Green: GOOD (Link speed > 60Mbps) / Amber: MEDIUM (Link speed 20~60Mbps), Red: BAD (Link speed < 20Mbps) / Off: NO LINK

Push Button: Reset / Pairing

Input Operating Voltage: DC 56V / 0.03 - 1.6A

Power Consumption: 1.5W (w/o power forwarding)

Operation Temperature: -20°C ~ 60°C

Humidity: 20% to 85% RH. (non-condensing)

Storage Temperature: -30°C ~ 80°C

Dimensions (W×D×H) mm: 38 x 120 x 33

Weight: 176g

Transmission Distance with Power Delivered: COAXIAL Cable
Power Delivered & Power Source	Not using PoE output	5.5W	7W	9W	12W	17W
Power Delivered & Power Source	Maximum Coax RG6. Data Link Distance
DC56V Power Supplied	2000m	600m	500m	400m	300m	200m

Transmission Distance with Power Delivered: UTP Cable
Power Delivered & Power Source	Not using PoE output	16W	18W	19.5W	20W	22W
Power Delivered & Power Source	Maximum Cat.5 (4-Pair) UTP Cable. Data Link Distance
DC56V Power Supplied	600m	600m	500m	400m	300m	200m
