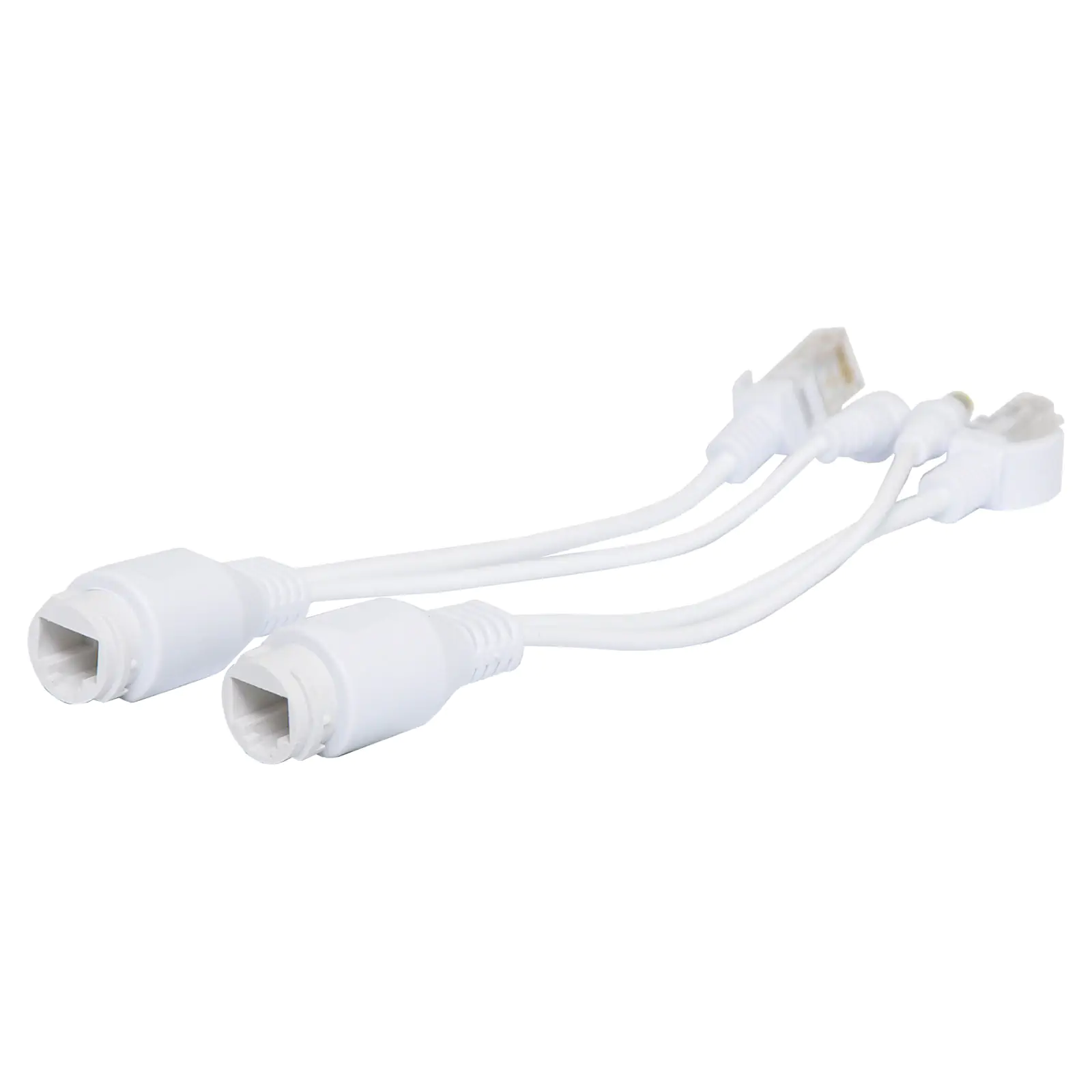

Waterproof IP PoE Camera Joiner Pair

SKU: S9274
These camera joiners come as a pair and have a transmission distance of under 70m. The input power of the joiners is 12V-48V. The joiners add to a professional appearance for IP camera power cabling. The joiners also make IP camera installation easier by saving time plus creating a more secure cable connection.
Save $4.50 $9.09 $13.59

All Prices Shown are (ex GST)
Bulk Pricing
ea
$9.09 $13.59
4+
$9.09 $12.50
6+
$9.09 $11.14
i h

Overview

This waterproof power over ethernet (PoE) splitter is Ideal for cameras in exposed installations, this waterproof splitter allows you to power non PoE equipped devices from a 802.3af Power Over Ethernet RJ45 cable (70m max). 12V, 2A max.

Features

  • 1 LAN-In (Data + Power) +1 LAN-Out (Data Only)
  • Take Power from PSE
  • 5v 12v 24v 48v Passive POE
  • 5v 12v 24v 48v Cheap price of cable type passive POE splitter
  • Splitter: RJ45 Female to RJ45 Male + Power Out
  • Passive PoE - means that input and output voltage are equal.
  • Works with all DC powered non-PoE devices
  • Supports 5V, 12V, 24V, 48V
  • Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.
  • Uses industry standard 5.5mm x 2.1mm power plugs
  • Can work up to 150ft (depending on the quality of the cable and the power draw of the device)



Specifications

Power Output Specification

Data : Pins 12 / 36

Power : Pins 45(+) / 78(-)

Data in : PC / Hub / Switch

Connector : RJ-45

Wires : UL standard

Data rate : 10/100 Mbps

Ethernet cable : TIA/EIA 568 Cat.5 or Cat.5e

General Specification

Operation Temperature : 0°C ~ +40°C

Storage Temperature : -40°C ~ +70°C

Operation Humidity : 10% - 80% RH

Storage Humidity : 5% - 90% RH

Case of material : PVC

DC Plus & Jacks : 2.1x5.5x12mm /2.5x5.5x12mm

Cable Length : 150mm +10mm

Details

Products specifications

Warranty 12 Months
Tech & Data
Type Power Over Ethernet
