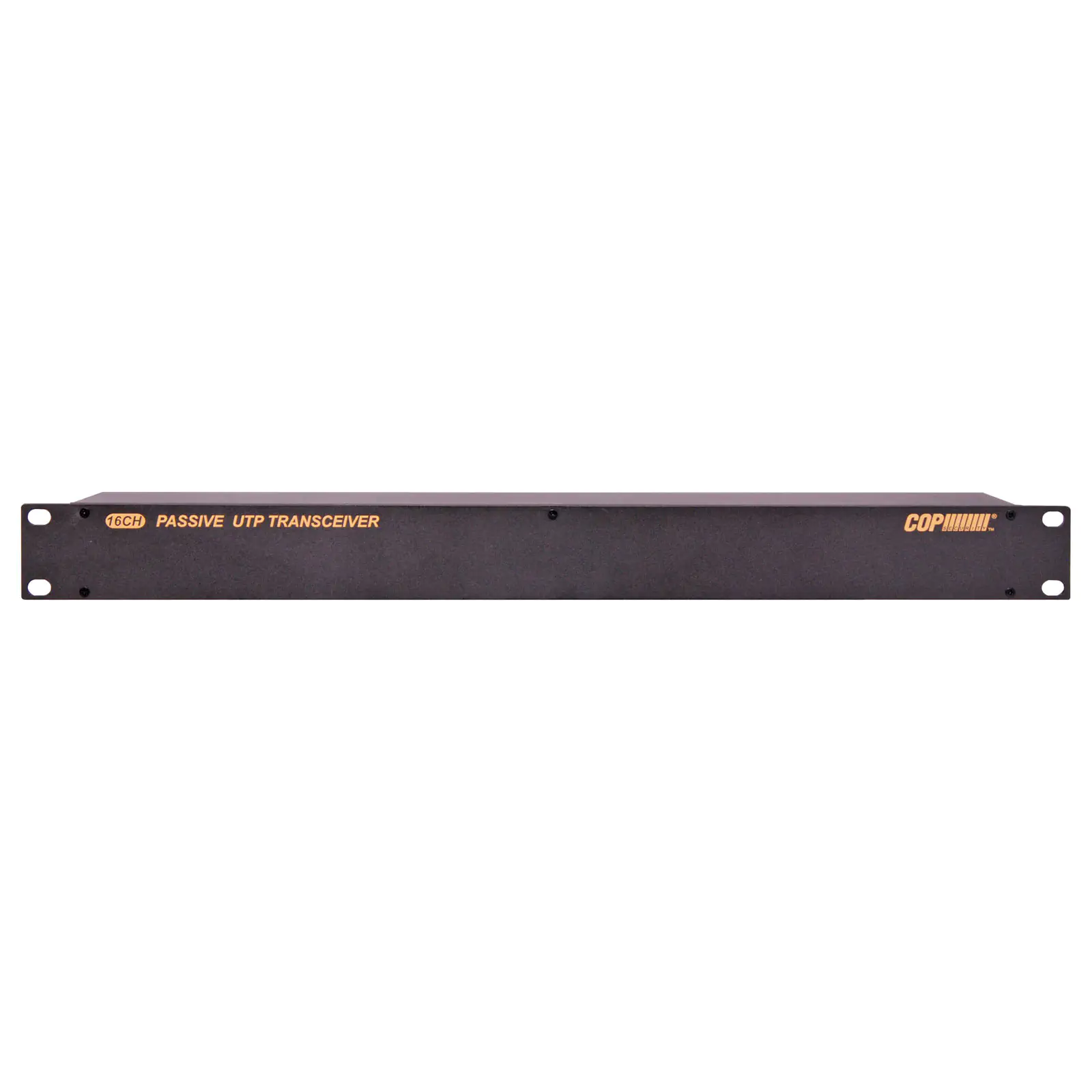

16 Channel UTP Passive Video Receiver

SKU: S9280
This rack mount passive distributor accepts up to 16 inputs from UTP baluns located up to 300m away (colour). Ideal for distributed CCTV systems. 16 x BNC outputs for connection to your DVR. UTP connection via spring loaded terminals. Requires no power.
Save $226.37 $45.45 $271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea
$45.45 $271.82
2+
$45.45 $259.09
4+
$45.45 $240.91
i h

Overview

This rack mount passive distributor accepts up to 16 inputs from UTP baluns located up to 300m away (colour). Ideal for distributed CCTV systems. 16 x BNC outputs for connection to your DVR. UTP connection via spring loaded terminals. Requires no power.

Designed to work in conjunction with S 9244A UTP Tranceivers





Specifications:



Video input port: 16 Port Terminal Block / RJ45 x 4

Video output port: 16 Port (BNC Connector)

Transmission distance: Mono.600m / Color 300m

Cable: Twisted Pair CAT5

Dimensions: 440 x 80 X 44 mm

Weight: 1.48kg



Features:

  • 16 Terminal blocks or 4 x RJ45 to 16 x BNC.
  • Built in high balanced mode of transmission for extra interference immunity.
  • Transmit a full motion monochrome video signal up to 600M color video signal up to 300M.
  • Video transmission only.
  • Built-in impedance couple device + noise filter.
  • Built-in surge absorber to reduce interference.
