This 4 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage).

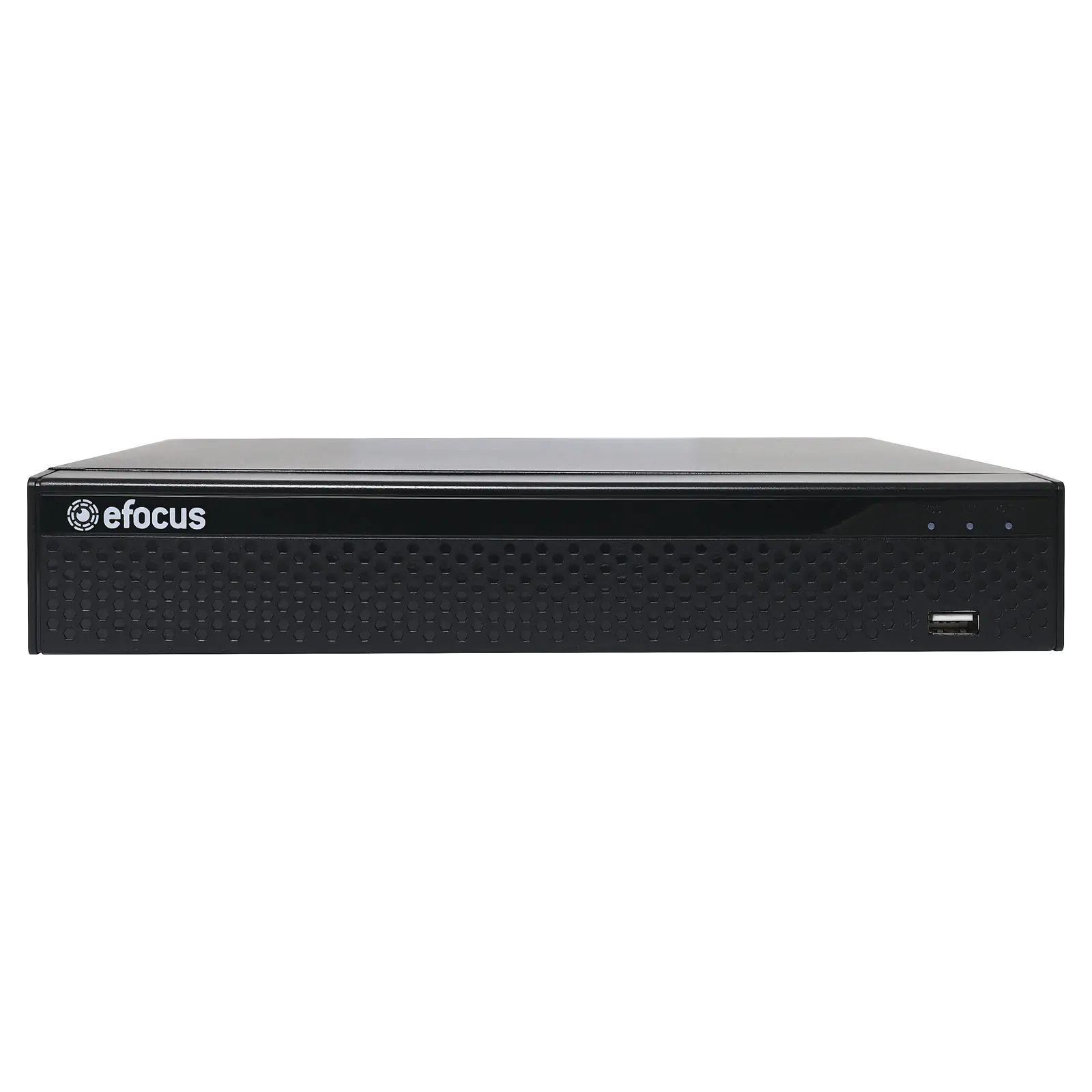

4 Channel AHD 8MP/IP/CVI/TVI Hybrid Digital Video Recorder

Name: 4 Channel AHD 8MP/IP/CVI/TVI Hybrid Digital Video Recorder
SKU: S9344P
Price: 226.36 AUD
Availability: InStock

by: eFocus

SKU: S9344P

This 4 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage).

$226.36

All Prices Shown are (ex GST)

Bulk Pricing

ea	$226.36
2+	$208.18
4+	$190.00

i h

Overview
Specifications
Details
Warranty

Overview

This 4 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage). Each channel can be individually recorded in real time 25fps @ 1080p to the internal SATA hard drive (available separately). Or 15fps @ 4MP (2560x1440px) resolution. HDMI, VGA and composite outputs are provided for connection to an external monitor. Channels may be viewed in full screen or quad modes with switching and freeze image functionality.

Recording can be continuous, scheduled or triggered via motion detection or alarm input. Four alarm inputs are provided with 1 output for triggering auxiliary equipment. USB input is provided for backup and archiving. Footage can be viewed on your PC with the included software. Includes power supply. Live viewing can be done remotely over internet or on mobile devices (apps to suit iOS & Android). 1080p display resolution. Two SATA interfaces (12TB max). Hard disk sold separately. A 4K monitor is also recommended for viewing and recording resolutions 3MP to 8MP.

NOTE: UNIT IS NOT SUPPLIED WITH HARD DRIVE. ALL HARD DRIVES AVAILABLE SEPARATELY

Features:

Support AHD/CVI/TVI/IP/Analog Camera Input
Up to HD 5MP and IP 8MP Resolution Recording
Support HD Output, VGA and CVBS Video Output
Support Max. 4CH HD or 16CH IP Camera Input
Support 1 SATA up to 6TB Capacity

Specifications

System

Main Processor: MC6650

Operating System: Embedded LINUX

Video

Input: Default - 4 x (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4 x network (Max 8MP) Analog+Network: 2 x Analog, 7 x network (Max 8MP)

Network - 16 x network (Max 8MP) (Total incoming bandwidth =80M)

Input: 4 channel BNC

Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

Output: 1x HDMI, 1x VGA, 1x CVBS

Audio

Input: 4 Channel RCA, support AOC

Output: 1 Channel RCA

Alarm

Sensor Input: 4

Output: 1

Motion Detection: 8 Channel (max 16 channel in pure network mode)

Trigger Events: Recording, email, screen tips, buzzer, push notifications (motion detection)

Email Alarm: Send image to the designated email

AI Function

Face Comparison: Yes

PTZ

Interface: RS485

Protocol: Pelco-D, Pelco-P

Baud Rate: 110~921600

Address: 0~255

Display

VGA: Resolution - 1920x1080P, 1280x1024, 1280x720, 1024x768

HD Output: Resolution - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

Display Split: 1/4/8/9/16

Privacy Masking: 3 rectangular zones (each camera)

OSD: Camera Title, Time, Video Loss, Alarm, Motion Detection, Recording

Recording

Video Compression: H.265/H.265+/H.264/H.264+

Audio Compression: G.771u/G.771a

Resolution: 8MP(3840×2160), 5MP(2560×1952), 4MP(2560×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)

Video Quality: Lowest/Low/Ordinary/Good/Better/Best

Record Rate:

Analog - PAL: 8MP(3840x2160 4 x 8fps), 5MP(2560×1952 4 x 12fps), 4MP(2560×1440 4 x 15fps), 3MP(2048×1536 4 x 18fps), 1080P(1920x1080 4 x 25fps), 720P(1280×720 4 x 25fps), 960H(960×576 4 x 25fps)

Pure IP (H.265) - PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps

Record Mode: Manual/Timer/Motion Detection/Alarm/Intelligent

Playback and Backup

Decode Capability: 4 x 1080P@30fps

Sync Playback: Pure Analog - 4CH 8M@8fps, 4CH 5M@12fps,4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps, 1CH 4K@30fps

Mix Mode - 2CH 8M@8fps, 2CH 5M@12fps,2CH 4M@15fps, 2CH 3M@18fps, 2CH 1080p@30fps, 1CH 4K@30fps,2CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Pure IPC - 1CH 4K@30fps, 1CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback: 4 Channel / 1 Channel

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Tag

Playback Functions: Play, Pause, Stop, Fast Play, Slow Play, Rewind, Single Frame Forward, Single Frame Backward, Digital Zoom, Full Screen

Smart Phone Playback: 4 Channel

Backup Mode: USB Device (with format FAT 32)/Network/FTP

Network

Interface: 1RJ45 10M/100M Adaptive Ethernet Interface

Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET

Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari

CMS Software: Support Windows 7/Windows 8/Windows 10

Extra Stream: CIF/D1 (1-30fps)

Smart Phone: iPhone, iPad, Android, Android Pad

Hard Disk

Interface Type: 1 SATA Interface

Capacity: 1 SATA Hard Disk (2.5""/3.5"" SATA, up to 8TB)

General

UTC Control: Yes

USB Interface: 2 USB 2.0 Interfaces

Power Consumption: 12V DC/2A =10W (without hard disk)

Working Environment: -10°C ~ +55°C / 10~90%

Language: Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese

Weight: 2kg (without hard disk)

Dimensions: 260 x 215 x 43 mm

Details

Products specifications

Warranty	12 Months
