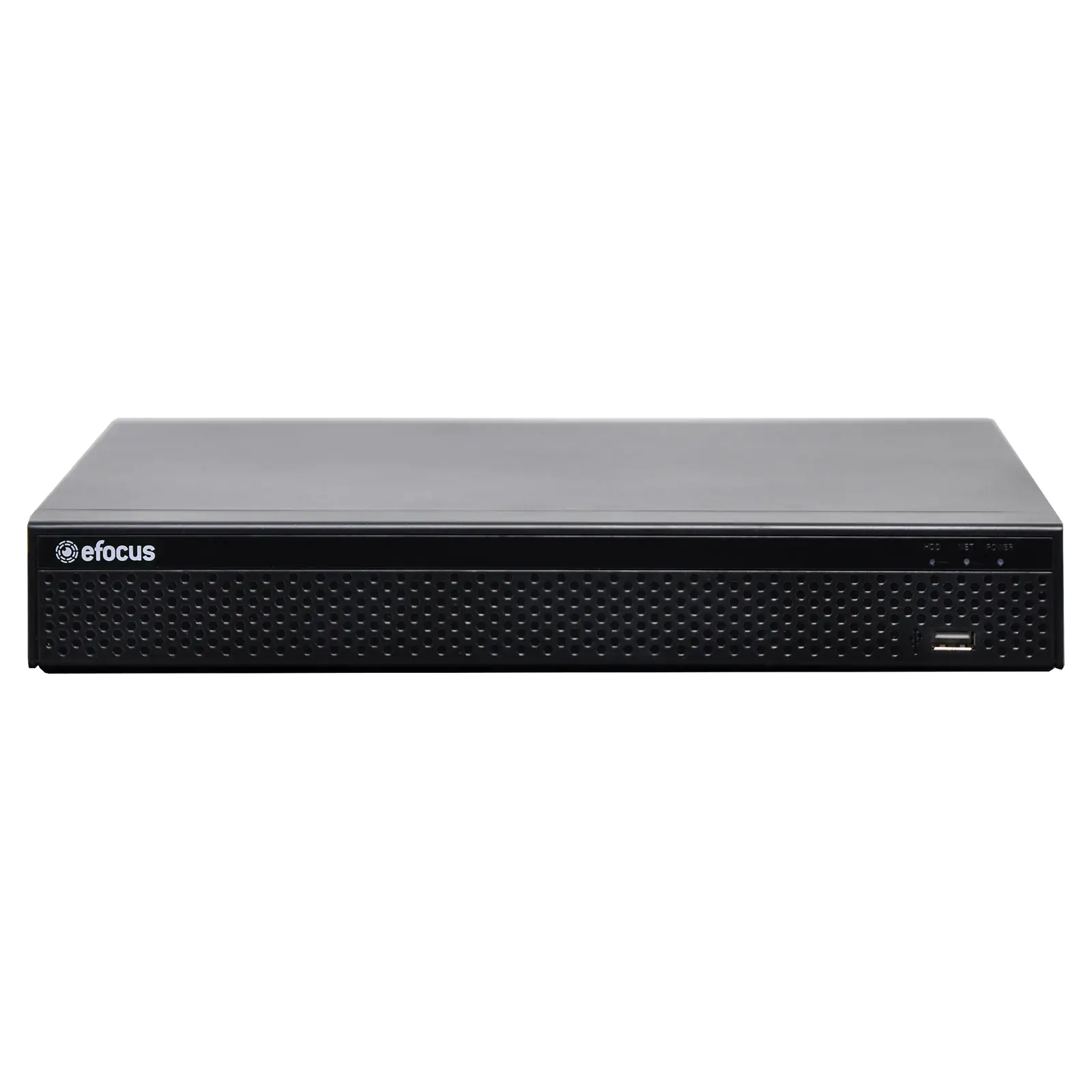

9 Channel / 4 Channel x PoE 8MP Network Video Recorder

Specifications:

System

Main Processor: ARM Cortex A7 Processor

Operating System: Embedded LINUX

Video

Input: 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output: 1 VGA, 1 HD

Audio

Input: 1 Port RCA

output: 1Port RCA (Linear, 1kΩ)

Audio Bit Rate: 64kbps

Audio Compression standard: G711u, G711a, ADPCM_DVI4

intercom: Support (two-way)

Alarm

Sensor Input: 4

Output: 1

Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

HD Output1: 1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1920x1080/60Hz,4K(3840x2160)/30Hz

HD Output2: N/A

VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split: 9CH/8CH/6CH/4CH/1CH

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

Video Compression: H265/H264/H265+/H264+

Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)

Record Rate:

PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp

Record Mode: ManualTimerMotion Detection AlarmSmart Event

Playback & Backup

Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps

Decode Capability: 4CH 1080P(1920x1080)@30fps

Remote Sync Playback: Yes

Search Mode: ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log

Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio

Backup Mode: USB Device/Network

Network

interface: 1xRJ45 10M/100M Adaptive Ethernet Interface

Incoming Bandwidth: 80MB

Network Functions: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE

Onvif: onvif S,onvif T

Web Browser: Edge,IE8-11, Google Chrome, Firefox, Safari

CMS Software: Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS

Cloud Support: Yes

Smart phone: iPhone, iPad, Android, Android Pad

POE: 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output%E2%89%A4 50W, Support Plug and Play, Support network cable extended mode Max. 200M

Wifi: N/A

Storage

Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)

Capacity: Up to 8TB capacity

eSATA: N/A

General

Language UI: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese

USB Interface: 2 USB 2.0 Interfaces

RS485: N/A

Power consumption: DC52V/1250mA =20W (Without Hard Disk and POE)

Working Environment: -10~55°C/10~90%

Dimension(W×D×H): 260*215*43(mm)

Weight: 2kg(without HDD)

Features:

• H.264+/265+ compression
• 4K HDMI monitor output
• Recording up to 8MP @ 25fps per ch
• Supports iOS and Android remote viewing
• 4 x 15.4W PoE network interfaces
• Internal SATA interface, max 8TB
• USB backup
• Dedicated network interface
• Audio input & output
• ONVIF S/T support
