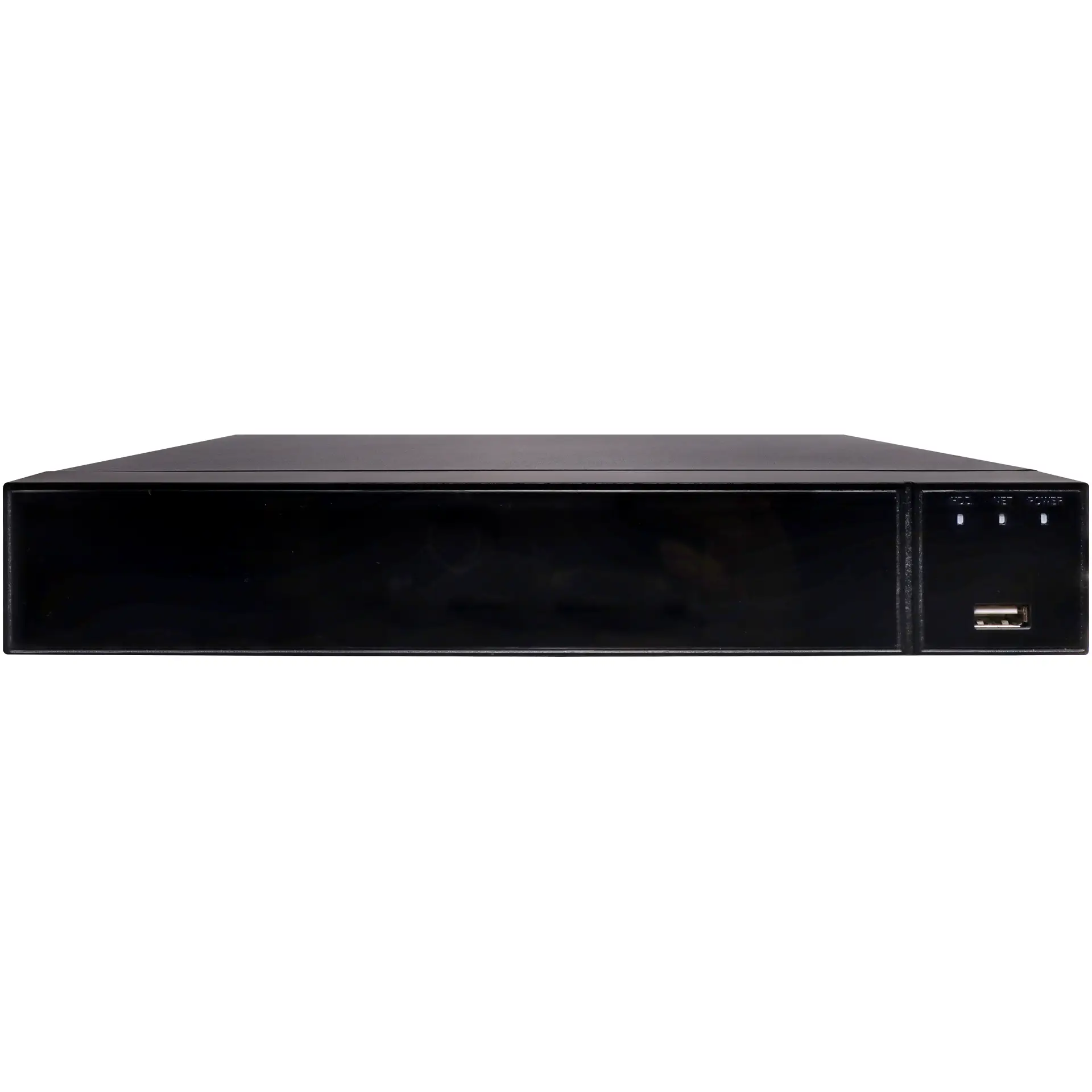

9 Channel 12MP Network Video Recorder

Features:

• H.264+/265+ compression
• 4K HDMI monitor output
• Recording up to 12MP @ 25fps on 6 channels
• Supports iOS and Android remote viewing
• 4 x 15.4W PoE network interfaces
• Internal SATA interface, max 10TB
• USB backup
• Dedicated network interface
• Audio input & output
• ONVIF S/T support

Specifications:

System

Main Processor: Dual Cortex A53

Operating System: Embedded LINUX

Video

Input: 9CH(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)

Output: 1 VGA, 1 HD

Audio

Input: 1 Port RCA. support 9CH IPC audio input

output: 1Port RCA (Linear, 1kΩ) HD output

Audio Bit Rate: 64kbps

Audio Compression standard: G711U, G711A, AAC, MP2L2

intercom: Support (two-way)

Alarm

Sensor Input: N/A

Output: N/A

Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center

Display

HD Output1: 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*

HD Output2: N/A

VGA: Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768

Display Split: 9CH/8CH/6CH/4CH/2CH/1CH

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Event

Smart Event: Intrusion Detection, Line Crossing Detection,Region Entrance,Region Exiting,Loitering Detection,People Gathering Detection, Face Detection, Illegal Parking, Line, Crossing Count

Normal Event: Motion, Video Tampering, Video Loss, Audio Detection

Recording

Video Compression: H265/H264/H265+/H264+

Resolution: 12MP(4000*3000),8MP(3840 ×2160),6MP(3072*2048),5MP(2592 ×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),1280x1024,960P(128 0x960),720P(1280×720),960H(960x480),D1(720 ×576/720×480)

Record Rate:

PAL: 12MP@6CHx25fps,4K@9CHx25fps,5MP@9CH ×25fps,4MP@9CHx25fps,3MP@9CH ×25fps,1080P@9CH×25fps, 960P@9CH×25fps,720P@9CH×25fps,

D1@9CH×25fps

NTSC: 12MP@6CHx30fps,4K@9CHx30fps,5MP@9CH ×30fps,4MP@9CH×30fps,3MP@9CH×30fps,1080P@9CH ×30fps,

960P@9CH×30fps,720P@9CH ×30fps,D1@9CH×30fps

Record Mode: Manual, Timer, Motion Detection\=, Smart Event

Playback & Backup

Local Sync Playback: 1CH 12MP@30fps,1CH 8MP@30fps,2CH 5MP@30fps,4CH 4MP@30fps,7CH 1080P@30fps,9CH 720P@30fps,9CH D1@30fps

Decode Capability: 1080P(1920x1080)@210fps

Remote Sync Playback: Yes

Search Mode: ALL, Timing Video, Motion Detection, Tag search, Smart Event, Picture, Log

Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio

Backup Mode: USB Device/Network

Network

Interface: 1xRJ45 10M/100M Adaptive Ethernet Interface

Incoming Bandwidth: 80Mbps

Outgoing Bandwidth: 80Mbps

Network Functions: IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE, SNMP

Onvif: Profile S, Profile T

Web Browser: Edge,IE8-11, Google Chrome, Firefox, Safari

CMS Software: Support Windows 10/Windows 11/MAC OS

Cloud Support: Yes

Smart phone: iPhone, Android

POE: 4 x Independent 100Mbps POE Network Interfaces(Output Power AT mode 30W per Interface, AF mode 15W per Interface), 45/78 line order, Total Power Output 45W, Support Plug and Play, Support network cable extended mode Max. 200M

Wifi: N/A

Storage

Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)

Capacity: Up to 10TB capacity

eSATA: N/A

General

Language UI:

Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh, Hebrew

USB Interface: 2 USB 2.0 Interfaces

RS485: N/A

Power consumption: DC48V/1.36A ≤ 10W (Without Hard Disk)

Working Environment: -10~50°C/10~90%

Dimensions: 260W x 230D x 43H(mm)

Weight: 0.74kg(without HDD)
