This multi channel network video recorder offers 8MP resolution recording at 25fps for up to 10 cameras (or 14ch of 5MP @ 25fps).

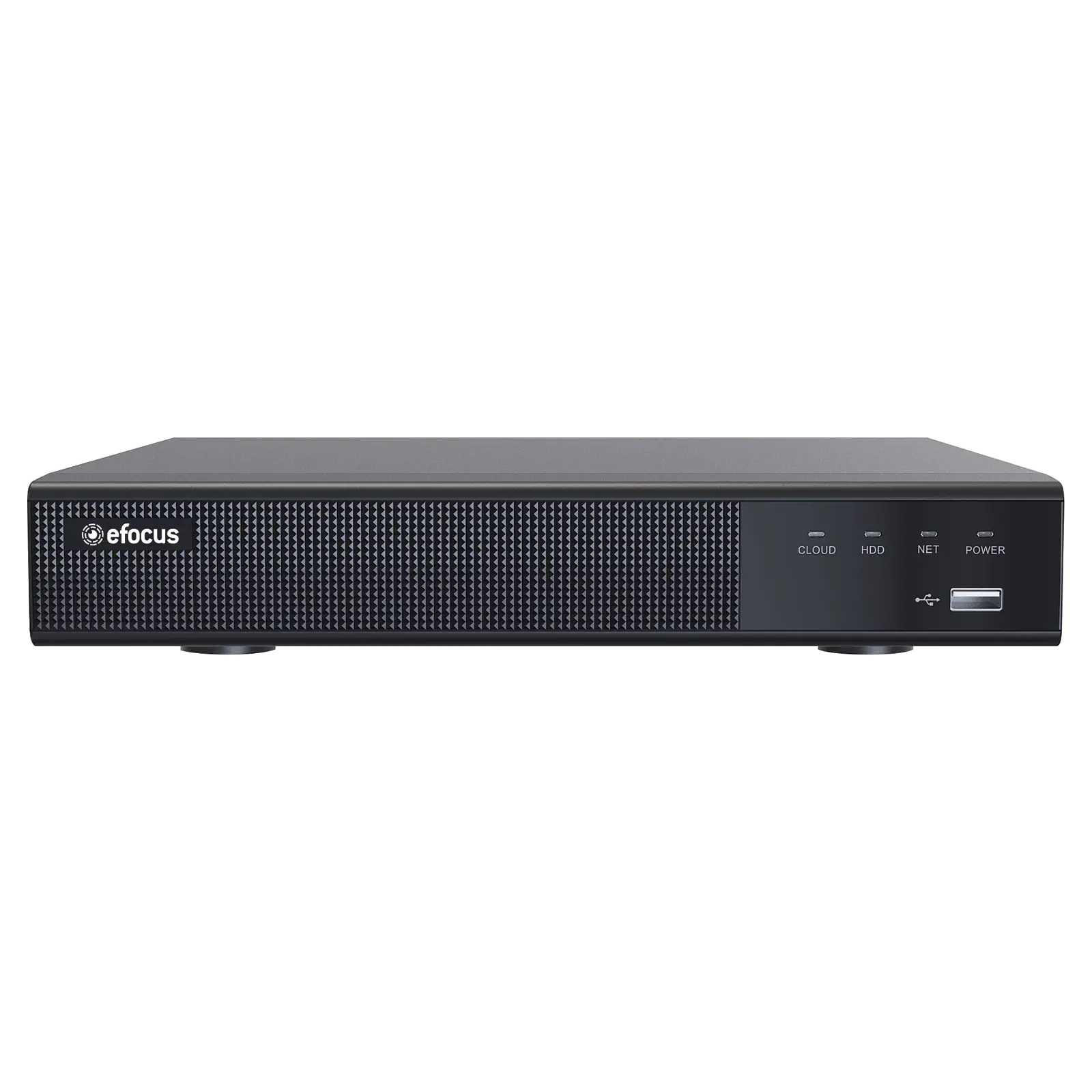

16 Channel / 8 Channel x PoE 4K NVR

Name: 16 Channel / 8 Channel x PoE 4K NVR
SKU: S9367D
Price: 344.55 AUD
Availability: InStock

by: eFocus

SKU: S9367D

This multi channel network video recorder offers 8MP resolution recording at 25fps for up to 10 cameras (or 14ch of 5MP @ 25fps).

Save $50.90 $344.55 ~~$395.45~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$344.55 $395.45
2+	$344.55 $362.73
4+	$344.55

i h

Overview
Details
Warranty

Overview

This multi channel network video recorder offers 8MP resolution recording at 25fps for up to 10 cameras (or 16ch of 5MP @ 25fps). For ease of installation, 8 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.8 support. Recording can be manually set, scheduled or triggered by motion detection. Supports one internal hard disk, maximum storage 8TB. Hard drives sold separately.

Specifications:

System

Main Processor: ARM Cortex A7 Processor

Operating System: Embedded LINUX

Video

Input: 16CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output: 1 VGA, 1 HD

Audio

Input: 1 Port RCA, support 16CH IPC audio input

Output: 1 Port RCA (Linear, 1kΩ), HD output

Audio Bit Rate: 64kbps

Audio Compression standard: G711u, G711a, ADPCM_DVI4

Alarm

Sensor Input: 4

Output: 1

Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

HD Output: 4K (3840*2160), 1920*1080, 1280*1024, 1280*720, 1024*768

VGA: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Display Split: 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

Video Compression: H265/H264/H265+/H264+

Resolution: 4K(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480)

Record Rate: PAL: 4K@10x25fps, 5MP@16×25fp, 4MP@16x25fp, 3MP@16×25fp, 1080P@16×25fp, 960P@16×25fp, 720P@16×25fp, D1@16×25fp

NTSC: 4K@10x30fps, 5MP@16×30fp, 4MP@16×30fp, 3MP@16×30fp, 1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp

Record Mode: Manual/Timer/Motion Detection/Alarm/Smart Event

Playback & Backup

Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps

Decode Capability: 4CH 1080P (1920x1080) @30fps

Remote Sync Playback: YES

Search Mode: ALL, Timing Video, Motion Detection, Alarm, Tag, Search, Smart Event, Picture, Log

Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio

Backup Mode: USB Device/Network

Network

Interface: 1xRJ45 10M/100/1000M Adaptive Ethernet Interface

Incoming Bandwidth: 120MB

Network Functions: TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE

Onvif: onvif S,onvif T

Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari

CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS

Cloud Support (P2P): Yes

Smart Phone: iPhone, iPad, Android, Android Pad

POE: 8 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order

Total Power Output: = 96W

Support Plug and Play

Support network cable extended mode Max. 200M

Storage

Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)

Capacity: Up to 8TB capacity

General

Language: Simplified Chinese, English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese

USB Interface: 2 USB 2.0 Interfaces

Power Supply: DC48V/2500mA

Working Environment: -10~50℃/10~90%

Dimensions: 260W x 230D x 43H(mm)

Weight: 2.0KG (without HDD)

Features:

H.264+/265+ compression
4K HDMI monitor output
Recording 10 channels up to 8MP @ 25fps per ch
Supports iOS and Android remote viewing
8 x 15.4W PoE network interfaces
One internal SATA interface, max 8TB
USB backup
Dedicated network interface
Audio input & output
ONVIF 2.8
Support Plug and Play
Support network cable extended mode - Max. 200M

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
