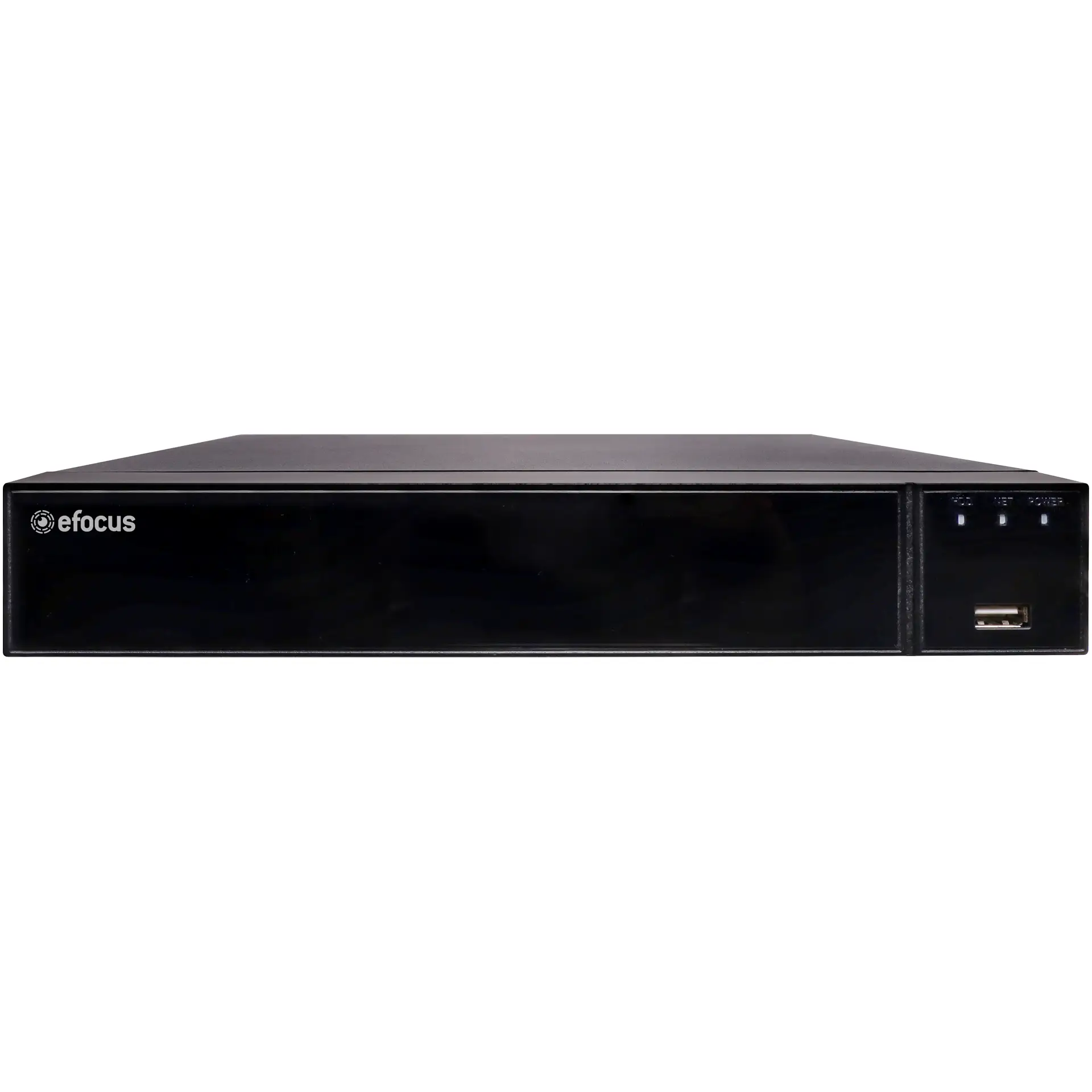

This multi channel network video recorder offers 12MP resolution recording at 25fps for up to 10 cameras (or 16ch of 4K @ 25fps).

$386.36

All Prices Shown are (ex GST)

Bulk Pricing

ea	$386.36
2+	$362.73
4+	$344.55

i h

Overview
Details
Warranty

Overview

This multi channel network video recorder offers 12MP resolution recording at 25fps for up to 10 cameras (or 16ch of 4K @ 25fps). For ease of installation, 8 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF S/T support. Recording can be manually set, scheduled or triggered by motion detection. Supports one internal hard disk, maximum storage 10TB. Hard drives sold separately.

Specifications:

System

Main Processor: Dual Cortex A53

Operating System: Embedded LINUX

Video

Input: 16CH (12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF)

Output: 1 VGA, 1 HDMI

Audio

Input: 1 Port RCA, support 16CH IPC audio input

Output: 1 Port RCA (Linear, 1kΩ), HD output

Audio Bit Rate: 64kbps

Audio Compression standard: G711U, G711A, AAC, MP2L2

Intercom: Supports 2-way

Alarm

Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center

Display

HD Output: 4K (3840x2160) / 2K(2560x1440) / 1920x1080 / 1280x1024 / 1280x720 / 1024x768

VGA: Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768

Display Split: 16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

Video Compression: H265/H264/H265+/H264+

Resolution: 12MP(4000 x 3000),8MP(3840 × 2160),6MP(3072 x 2048),5MP(2592 x 1944),4MP(2688 × 1520 / 2560 × 1440), 3MP(2048 × 1536),1080P(1920 × 1080),1280 x 1024,960P(1280 x 960),720P(1280 × 720),960H(960 x 480),D1(720 × 576 / 720 × 480)

Record Rate: 12MP@10CHx25fps, 4K@16CHx25fps, 5MP@16CH ×25fps, 4MP@16CHx25fps, 3MP@16CH ×25fps, 1080P@16CH ×25fps, 960P@16CH×25fps, 720P@16CH ×25fps, D1@16CH×25fps

Record Mode: Manual/Timer/Motion Detection/Alarm/Smart Event

Playback & Backup

Local Sync Playback: 1CH 12MP@30fps, 1CH 8MP@30fps, 2CH 5MP@30fps, 4CH 4MP@30fps, 7CH 1080P@30fps, 16CH 720P@30fps, 16CH D1@30fps

Decode Capability: 1080P(1920x1080)@210fps

Remote Sync Playback: YES

Search Mode: ALL, Timing Video, Motion Detection, Alarm, Tag, Search, Smart Event, Picture, Log

Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio

Backup Mode: USB Device/Network

Network

Interface: 1xRJ45 10M/100/1000M Adaptive Ethernet Interface

Incoming Bandwidth: 128MBps

Outgoing Bandwdith: 80MBps

Network Functions: IPv4/IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE

Onvif: onvif S,onvif T

Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari

CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS

Cloud Support (P2P): Yes

Smart Phone: iPhone, Android

POE: 8 x Independent 100Mbps POE Network Interfaces(Output Power AT mode 30W per Interface, AF mode 15W per Interface), 45/78 line order, Total Power

Output 72W, Support Plug and Play, Support network cable extended mode Max. 200M

Storage

Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)

Capacity: Up to 10TB capacity

General

Language: Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh

USB Interface: 2 USB 2.0 Interfaces

Power Supply: DC48V/1.87A ≤ 10W (Without Hard Disk)

Working Environment: -10~50℃/10~90%

Dimensions: 260W x 230D x 43H(mm)

Weight: 780g (without HDD)

Features:

H.264+/265+ compression
4K HDMI monitor output
Recording 10 channels up to 12MP @ 25fps per ch
Supports iOS and Android remote viewing
8 x 30W PoE network interfaces - total power 72W max.
One internal SATA interface, max 10TB
USB backup
Dedicated network interface
Audio input & output
ONVIF S/T profiles
Support Plug and Play
Support network cable extended mode - Max. 200M

Details

Products specifications

Warranty	12 Months
