This multi channel network video recorder offers 5MP resolution recording at 25fps for up to 25 cameras (or 12ch of 4K @ 25fps). For ease of installation, 16 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.4 support.

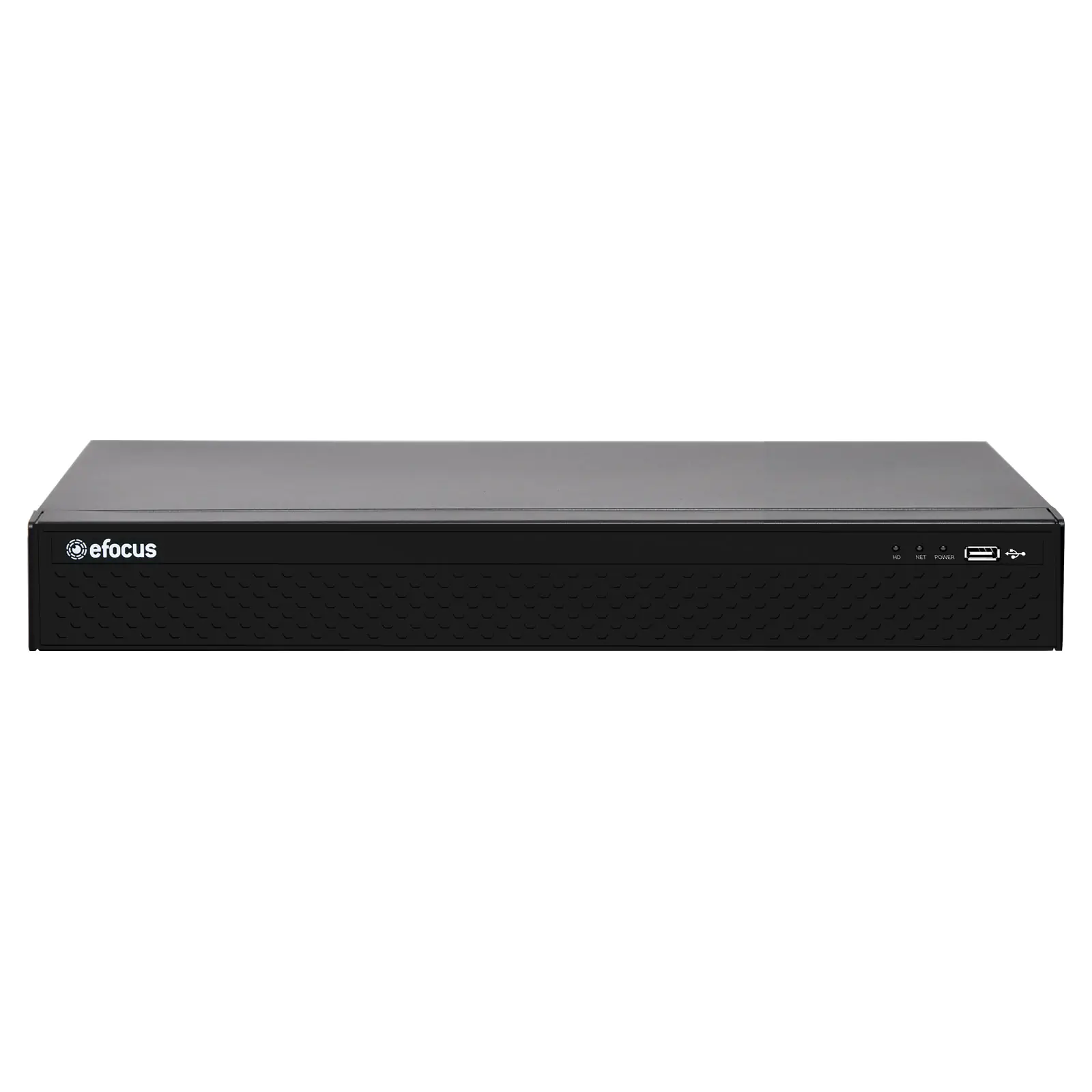

25 Channel / 16 Channel x PoE 4K Network Video Recorder

Name: 25 Channel / 16 Channel x PoE 4K Network Video Recorder
SKU: S9369
Price: 317.27 AUD
Availability: InStock

by: eFocus

SKU: S9369

This multi channel network video recorder offers 5MP resolution recording at 25fps for up to 25 cameras (or 12ch of 4K @ 25fps). For ease of installation, 16 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.4 support.

Save $318.18 $317.27 ~~$635.45~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$317.27 $635.45
2+	$317.27 $590.00
4+	$317.27 $544.55

i h

Overview
Specifications
Details
Warranty
Downloads

Overview

This 25 Channel / 16 Channel x PoE 4K Network Video Recorder offers 5MP resolution recording at 25fps for up to 25 cameras (or 12ch of 4K @ 25fps). For ease of installation, 16 dedicated PoE ports are in-built. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.4 support. Recording can be manually set, scheduled or triggered by motion detection. Supports four internal hard disks, maximum storage 32TB. Hard drives sold separately.

Download the platform software guide suitable for windows and mac

Features:

H.264+/265+ compression
4K HDMI monitor output
Recording 25 channels up to 5MP @ 25fps per ch
Supports iOS and Android remote viewing
16 x 15.4W PoE network interfaces
Four internal SATA interface, max 32TB
Remote control & mouse
USB backup
Dedicated network interface
Audio input & output
ONVIF 2.4 support

Specifications

System

Main Processor: ARM Cortex A7 Processor

Operating System: Embedded LINUX

Video

Input: 25CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output:1 VGA, 1 HD

Audio

Input:1 Port RCA

Output: 1 Port RCA(Linear, 1kΩ)

Audio Bit Rate: 64kbps

Audio Compression standard: G711u, G711a

Alarm

Sensor Input: 16CH Input

Output: 4CH Output

Motion Detection: 25 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

HD Output: Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split: 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection

Recording

Video Compression: H265/H264/H265+/H264+

Resolution: 4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)

Record Rate: PAL :4k@12×25fp,5MP@20×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp

NTSC: 4k@12×30fp,5MP@20×30fp,4MP@25×30fp,3MP@25×30fp,1080P@25×30fp, 960P@25×30fp, 720P@25×30fp, D1@25×30fp

Record Mode: Manual Timer Motion Detection

Playback & Backup

Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Decode Capability: 1CH 4K(3840×2160)@30fps

Remote Sync Playback: YES

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom

Backup Mode: USB Device/Network

Network

Interface: 16 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface

Incoming Bandwidth: 120MB

Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p

Onvif Version: Support Onvif 2.4

Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

CMS Software: Support Windows 7/ Windows 8/Windows 10

Cloud Support(P2P)Yes

Smart Phone: iPhone, iPad, Android, Android Pad

POE: 16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 12/36 line order, Total Power Output?200W, Support Plug and Play

Storage

Interface Type: 4 SATA Interface

Capacity: Up to 32TB capacity

General

Languages: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

USB Interface: 2 USB 2.0 Interfaces

RS485: 1xRS485

Power Supply: AC 100-240V

Working Environment: -10~55?/10~90%

Dimensions: (W×D×H)493*367*69(mm)

Weight: 9.8kg (without HDD)

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

User Manual

PDF
