These network video recorders are designed to capture streams from up to 25 IP cameras with event notification via a remote monitoring app for Android or iOS devices.

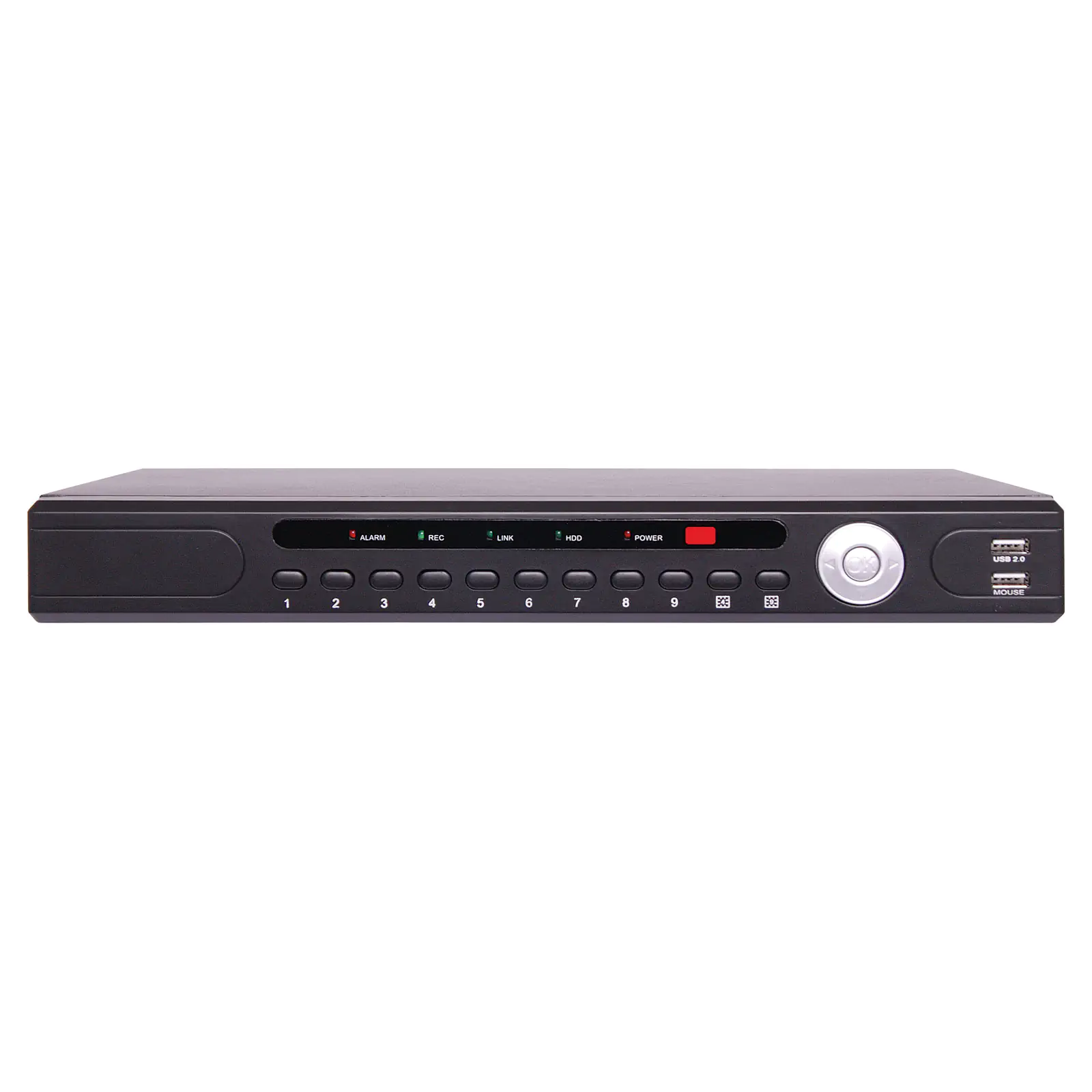

25 Channel 5MP Network Video Recorder

Name: 25 Channel 5MP Network Video Recorder
SKU: S9379
Price: 180.91 AUD
Availability: InStock

SKU: S9379

These network video recorders are designed to capture streams from up to 25 IP cameras with event notification via a remote monitoring app for Android or iOS devices.

Save $136.36 $180.91 ~~$317.27~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$180.91 $317.27
2+	$180.91 $295.45
4+	$180.91 $271.82

i h

Overview
Details
Warranty

Overview

These network video recorders are designed to capture streams from up to 25 IP cameras with event notification via a downloadable remote monitoring app for Android or iOS devices. It offers high definition recording & output for crystal clear live viewing and footage playback. 2 USB ports are is provided for additional storage or external backup. Smart recording function automatically adjusts the video resolution to optimise the recording efficiency. May be fitted with up to two SATA drives, providing a maximum of 12TB of storage space. Several recording modes are provided for flexible recording. These include events such as manual, Timer and motion detection. Includes power supply. Hard drives sold separately.

NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

HD Video Recording
- HD real-time recording brings users clear images while video recording and playback
- 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors.

Multi-platform Remote Access
- Fully compatible with iPhone & iPad, and Internet Explorer on Windows operating system
- AVTECH free CMS program on both Windows and MAC OS

Powerful Storage Capacity
- Support up to 3 hard disks for long-term recording and saving large amount of recording data.

Smart Recording
- High video resolution switch for events to optimize the recording efficiency of the hard disk.

External Disk Array Support for More Video Storage
- eSATA interface built-in to connect a disk array (up to 4-bay disk array with RAID 0 and 1) for more video storage.

Full HD HDMI Video Output
- 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors.

RS485 Communication
- Capable of external device connection to extend the functionality and flexibility of your NVR.

Specifications:

System

Main Processor: ARM Cortex A9 Processor(Hi3535)

Operating System: Embedded Linux

Video

Input: 25CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output: 1 x VGA, 1 x HDMI

Alarm

Sensor Input: Normally Open

Output: Normally open

Motion Detection: 25 Channel

Email Alarm: Supported

Display

VGA: Resolution: 1920×1080/1280×1024/1280×720

HDMI: Resolution: 1920×1080/1280×1024/1280×720

Display Split:

- 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP

Digital Zoom: Yes

OSD: Camera Title, Time, Video Loss, Recording, Motion Detection

Recording

Video Compression: H.264

Resolution: 5M/4M/3M/1080P/960P/720p, etc (All Real Time)

Record Rate:

- PAL :5MP@600fps,4MP@600fps,3MP@600fps,1080P@600fps, 960P@600fps,720P@600fps, D1@600fps

- NTSC: 5MP@720fp,4MP@720fp,3MP@720fp,1080P@720fps, 960P@720fps 720P@720fps, D1@720fps

Record Mode: ManualTimerMotion Detection

Playback & Backup

Local Sync Playback: 1CH@5M/4CH@1080P

Remote Sync Playback: Yes

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

Playback functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom

Backup Mode: USB Device/Network

Network

Interface: 1RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interface

Network Functions: HTTP, IPv4, TCP/IP, DNS, DHCP, NTP, DDNS

ONVIF Version: 2.4

Web Browser: IE6-11, Firefox, Chrome (Under Windows System)

CMS Software: Support Windows XP / Windows Vista / Windows 7/ Windows 8

Cloud Support (P2P): Yes

Incoming Bandwidth: 105MB

Smart Phone: iPhone, iPad, Android, Android Pad

Hard Disk Drive

Interface Type: 2 x SATA

Capacity: Up to 12TB

General

Language:

Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean

USB Interface: 2xUSB2.0 & 1xUSB3.0

Power Supply: 12V DC

Dimensions: 354W x 280D x 50H mm

Weight: 4.5kg

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
