This compact DVR can achieve up to 25x 12MP channels at 25fps or 36x 5MP channels at 25fps! Suitable for use with an external dedicated PoE switch (see below) it offers high resolution surveillance solution for installations requiring a large number of cameras.

36 Channel 12MP Network Video Recorder

Name: 36 Channel 12MP Network Video Recorder
SKU: S9380A
Price: 253.64 AUD
Availability: InStock

by: eFocus

SKU: S9380A

This compact DVR can achieve up to 25x 12MP channels at 25fps or 36x 5MP channels at 25fps! Suitable for use with an external dedicated PoE switch (see below) it offers high resolution surveillance solution for installations requiring a large number of cameras.

$253.64

All Prices Shown are (ex GST)

Bulk Pricing

ea $253.64

i h

Overview
Details
Warranty
Downloads

Overview

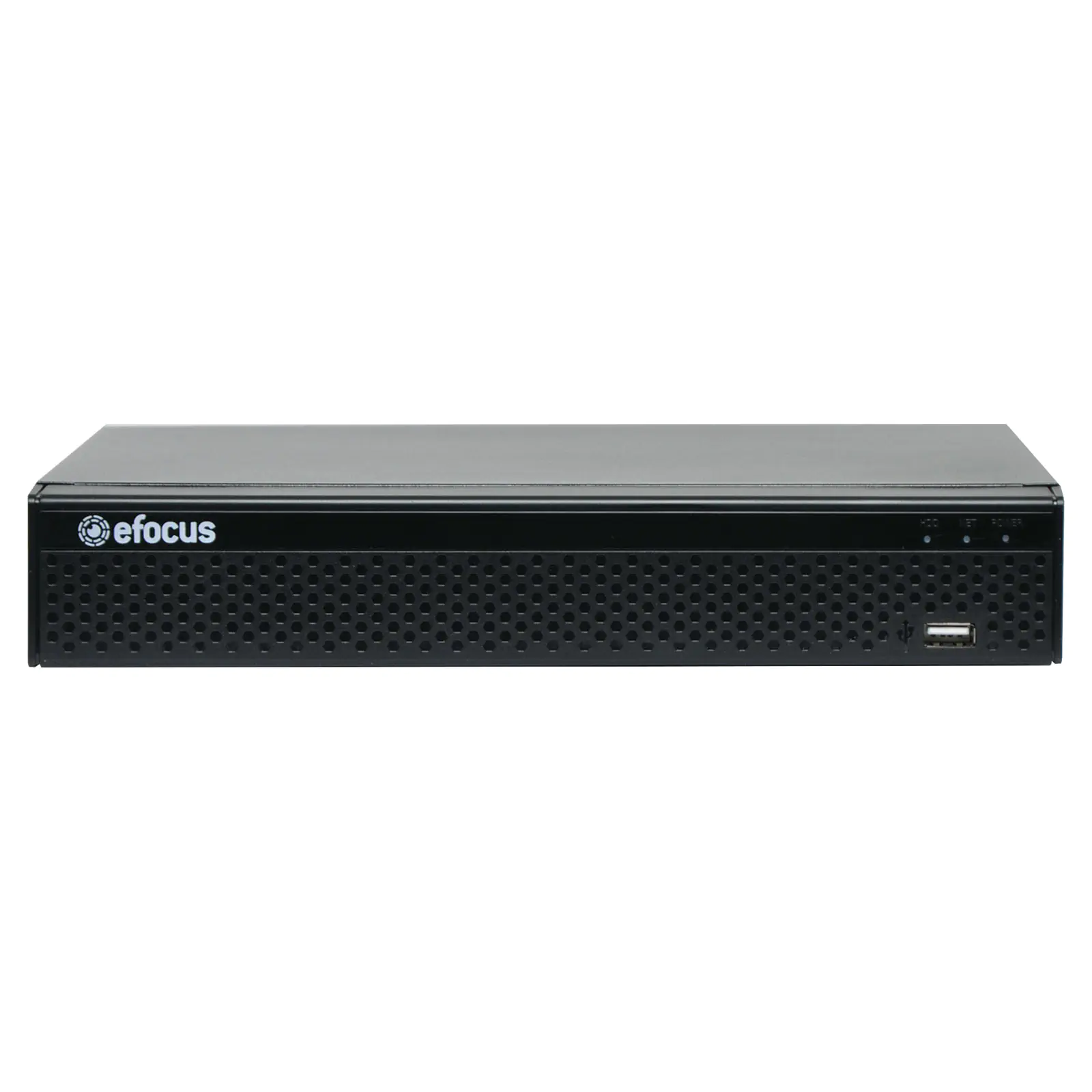

This compact NVR can achieve up to 25x 12MP channels at 25fps or 36x 5MP channels at 25fps! Suitable for use with an external dedicated PoE switch it offers high resolution surveillance solution for installations requiring a large number of cameras. It utilises H.264/H.265+ compression to maximise your hard disk space and has wide camera compatibility with ONVIF 2.8 support. Recording can be manually set, scheduled or triggered by motion detection. Supports two internal hard disks, maximum storage 12TB. Hard drives sold separately. Dimensions: 310W x 295D x 46H(mm)

Specifications:

System:

Main Processor: ARM Cortex A17 Quad-core Processor

Operating System: Embedded LINUX

Video:

Input: 36CH (4000×3000, 4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

Output: 1 VGA, 1 HD

Audio:

Input: 1 Port RCA

Output: 1 Port RCA(Linear, 1kΩ)

Audio Bit Rate: 64kbps

Audio Compression standard: G711u, G711a, ADPCM_DVI4

Alarm

Sensor Input: NO

Output: NO

Motion Detection: 36 Channel, MD Zones: 396 (22 × 18)

Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display:

HD Output1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split: 36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP

Digital Zoom: YES

OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording:

Video Compression: H265/H264/H265+/H264+

Resolution: 12MP(4000×3000),4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)

Record Rate:

PAL :12MP@25×25fp,4k@30×25fp,5MP@36×25fp,4MP@36x25fp,3MP@36×25fp,1080P@36×25fp, 960P@36×25fp,720P@36×25fp, D1@36×25fp

NTSC: 12MP@25×30fp,4k@30×30fp,5MP@36×30fp,4MP@36×30fp,3MP@36×30fp,1080P@36×30fp, 960P@36×30fp, 720P@36×30fp, D1@36×30fp

Record Mode: Manual, Timer, Motion Detection, Smart Alarm

Playback & Backup:

Local Sync Playback: 3CH 12MP@15fps, 4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps

Decode Capability: 4CH 4K(3840×2160)@30fps

Remote Sync Playback: YES

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm

Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom

Backup Mode: USB Device/Network

Network:

Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface

Incoming Bandwidth: 300MB

Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p

Onvif Version: Support Onvif 2.8

Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS

Cloud Support(P2P): Yes

Smart Phone: iPhone, iPad, Android, Android Pad

Storage

Interface Type: 2 SATA Hard Disk Interface (3.5" SATA)

Capacity: Up to 12TB capacity

General

Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,

German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese

USB Interface: 1 USB 2.0 Interfaces ,1 USB 3.0 Interface

Power Supply: DC 12V/4A

Working Environment: -10~55℃/10~90%

Dimensions: 310W x 295D x 46H(mm)

Weight: 3.5KG (without HDD)

Features:

H.264+/265+ compression
4K HDMI monitor output
Recording 25 channels up to 12MP @ 25fps per channel
Supports iOS and Android remote viewing
Two internal SATA interface, max 12TB
Remote control & mouse
USB backup
Dedicated network interface
Audio input & output
ONVIF 2.8

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
