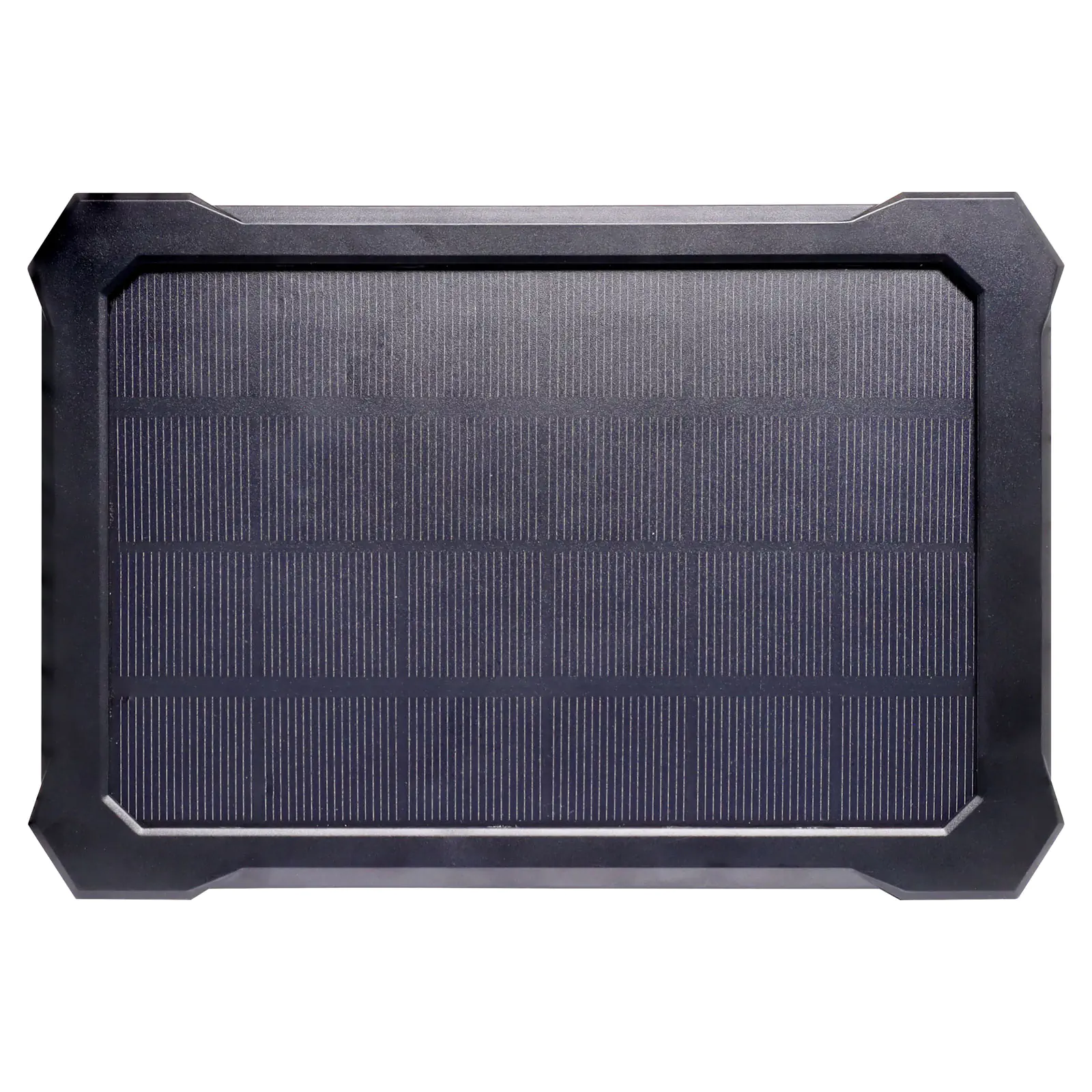

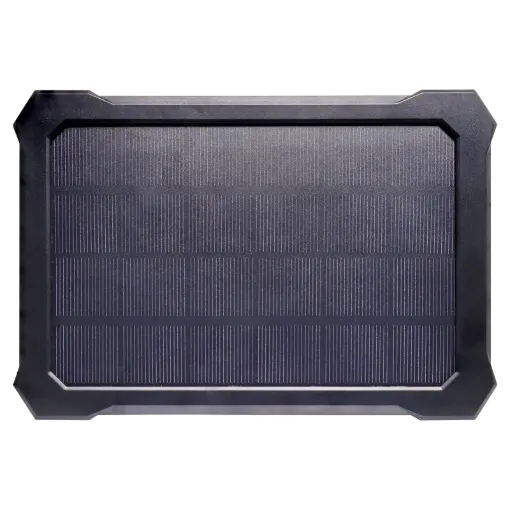

5200mAh Solar Power Bank Charger For Scouting Cameras

SKU: S9449
This 5200mAh solar panel has been specifically designed to be used in conjunction with our scouting cameras, however is compatible with a range of other devices.
$90.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $90.00
2+ $80.91
4+ $71.82
i h

Overview

This 5200mAh solar panel has been specifically designed to be used in conjunction with our scouting cameras, however is compatible with a range of other devices. As its IP66 rated its suitable to be used both indoors and outdoors in a varity of weather coniditons. Provides self recharging self sufficient power for long periods of recording without the need for mains power.

Indicators

1. Red LED flashes 60s and turns off when battery voltage is lower than 3.4V

2. Blue LED lights ON 30s and turns OFF to start working.

3. Green LED keeps ON when solar panel charges the batteries.

4. Blue LED flashes when batteries is charged by DC input,

5. Blue LED keeps ON when the battery is fully charged,

6. Red and Blue LED flicker alternately when 2 or more devices connection are detected. This solar panel charger only supports one output one time. Please make sure only one output cable is pluged in the solar panel.

Package Contents

1x Solar Panel Charger

1x 1m USB Type-A to 2.1mm DC output cable

1x DC input cable: USB to DC 2.1mm, length 1m

1x 1.5m DC 2.1mm to DC 2.1mm output cable

1x 1.5m DC 2.1mm to DC 1.7mm output cable

1x 1.5m DC 2.1mm to DC 1.35mm output cable

1x Wall mount bracket set

1x User manual





Specifications:



DC Outputs: Output 1: 6V/2A, Output 2: 9V1.3A, Output 3: 12V/1A

Standby current (no device connected): 12µA

No-load current: lower than 300µA

Solar panel: Monocrystal Silicon PET 3W, 6V/500MA

Built-in battery: 18650, 5200MA

DC Input: 5V 2A, 2.1mm DC

DC Output 1: 6V 2A, 2.1mm DC

DC Output 2: 6V 2A, 2.1mm DC

DC Output 3: 6V 2A, 2.1mm DC

Holder: M6

Operation Temperature: -20°C to 60°C

Operating humidity: 5% to 90%

Power Source: 5V DC 2A

IP Rating: IP66



Features:

  • Built-in 5200mAh battery
  • High efficiency
  • Super low standby power consumption
  • Compatible with different devices
  • Multi-Outputs: 6V/9V/12V
  • IP66 Waterproof

Details

Products specifications

Warranty 12 Months
