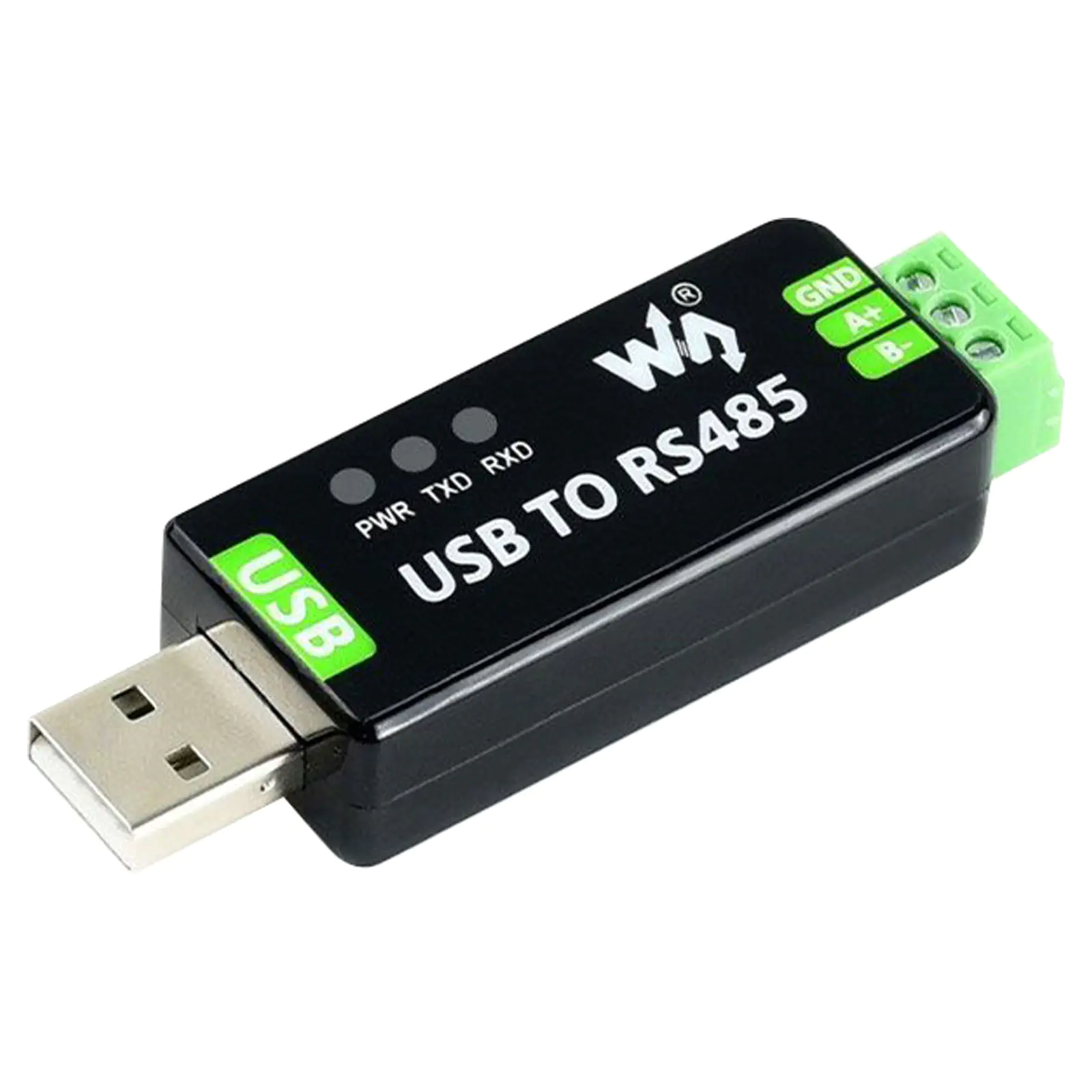

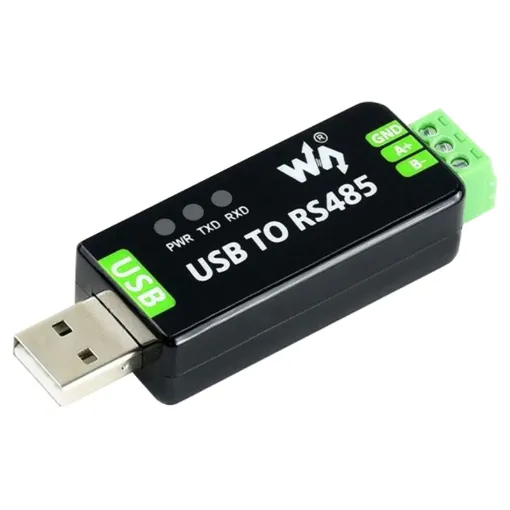

Industrial USB to RS485 Converter

SKU: S9721A
The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.
$49.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $49.95
2+ $45.00
4+ $39.95
i h

Overview

This industrial USB to RS485 converter has the original FT232RL and SP485EEN inside. It features embedded protection circuits such as lightning-proof, resettable fuse, ESD protection, and TVS diode, etc. It's pretty small in size.

The USB TO RS485 is very easy to use, allows automatic transceiving. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.





Specifications:



General:

Product type: industrial converter

Baudrate: 300-921600bps

Host port: USB

Device port: RS485

Temperature: -15? ~ 70?

Humidity: 5%RH ~ 95%RH

Operating system: Mac, Linux, Android, WinCE, Windows 10 / 8.1 / 8 / 7 / XP



USB:

Operating voltage: 5V

Connector: USB-A

Protection: 200mA self-recovery fuse, ESD protection

Transmission distance: about 5m



RS485:

Connector: screw terminal

Pins: A+, B-, GND

Direction control: hardware automatic control

Protection: 600W lightning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor)

Transmission distance: about 1200m (low rate)

Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)



LED indicators:

PWR: red power indicator, light up when there is USB connection and voltage is detected

TXD: red TX indicator, light up when the USB port sends data

RXD: red RX indicator, light up when the device ports send data back



Features:

  • USB to RS485 communication
  • Adopt original FT232RL and SP485EEN, fast communicating, stable and reliable, better compatibility
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • 3 LEDs for indicating the power and transceiver status

Details

Products specifications

Warranty 12 Months
Tech & Data
Type Serial Cables
