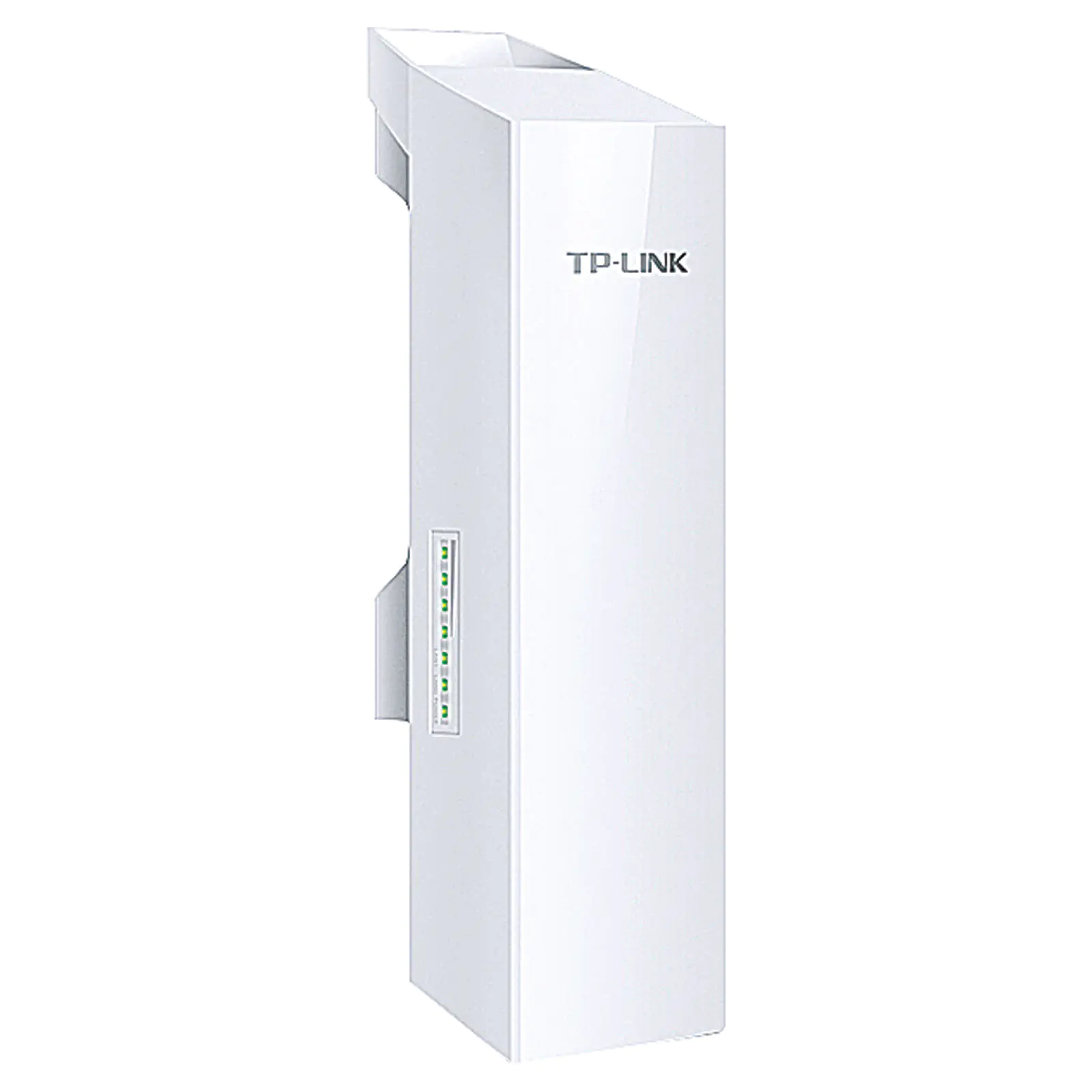

CPE510 5GHz 13dBi Wireless Access Point

by: TP-Link
SKU: S9740
TP-LINK's 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications.
$114.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $114.50
i h

Overview

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ to +70 ℃.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Package Contents:

1 x Outdoor Wireless CPE

1 x 24V 1A Passive PoE Adapter

1 x Pole Mounting Straps

1 x AC Power Cord

1 x Installation Guide

Features:

  • Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 15km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely



Specifications



Hardware Features:



Processor: Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Interface :

1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 x 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

1 x Grounding Terminal

1 x Reset Button

Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Power Consumption: 13 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.



Dimensions: 224W x 79D x 60H mm

Antenna Type: Built-in 13dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 45° (H-Plane) / 30° (E-Plane)

Protection: 15KV ESD Protection

6000V Lightning Protection

Enclosure: Outdoor ASA stabilized plastic material

IPX5 waterproof Certification



Wireless Features:

Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds: Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

Frequency: 5.15~5.85GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.



Reception Sensitivity:



802.11a:

54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm

802.11n:

MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,

MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,

MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,

MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,

MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

Transmission Power: 27dBm/500mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.



Software Features:



Wireless Configurations:

Pharos MAXtream TDMA Technology

802.11a/n Modes

Selectable Channel Width: 5/10/20/40MHz

Automatic Channel Selection

Transmission Power Control

Dynamic Frequency Selection (DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter



Wireless Advanced:

Beacon Interval/RTS Threshold/Fragmentation

Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia



Management:

Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System Log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server



System Tools:

Wireless Signal Quality Indicators:

Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute



System-level Optimizations:

Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog



POE Adapter Features:



Interfaces:

1 x AC Jack with Earth Ground

1 x 10/100Mbps Shielded Ethernet Port (Power + Data)

1 x 10/100Mbps Shielded Ethernet Port (Data)

Efficiency: 80%

Button: Remote Reset Button

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Power Status LEDs: 0~0.8A: Green, 0.8A~1.0A: Red



Output:

24VDC, 1.0A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Input Voltage: 100VA~240VAC @ 50Hz~60Hz

Dimensions: 110W x 57D x 33.5H mm

Input Current: 0.8A Max @ 100VAC

Input: 100-240VAC, 50/60Hz

Output Voltage: 24VDC(+4,5pins; -7,8pins)



Others

Certification: CE, FCC, RoHS, IPX5



Details

Products specifications

Warranty 3 Years
Tech & Data
Type Wireless Access Points
