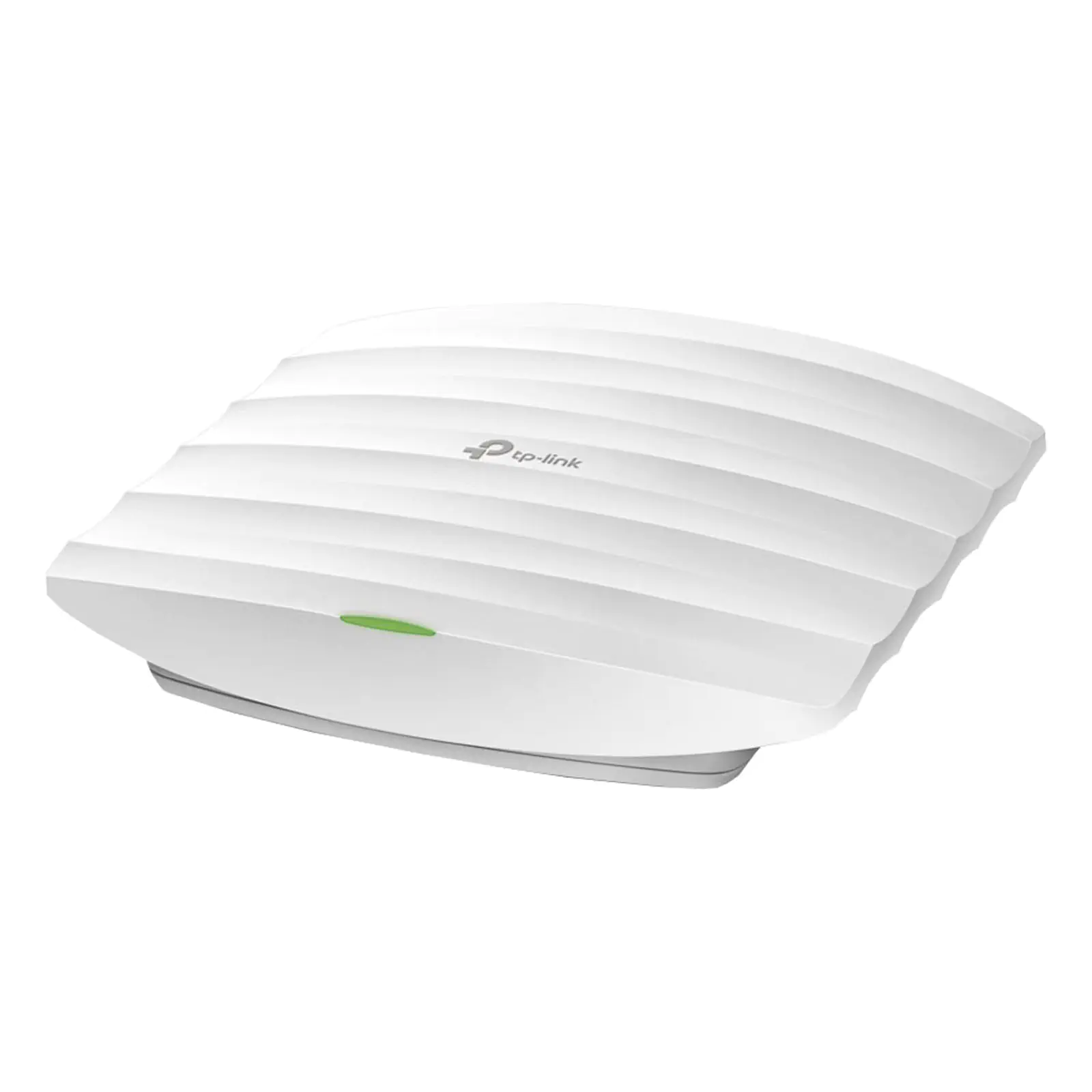

EAP110 2.4GHz 300Mbps Ceiling Mount Wireless Access Point

by: TP-Link
SKU: S9745
As a long range indoor wireless device, the EAP110 is designed to provide a multiple connection and long distance wireless networking solution. It operates seamlessly in the 2.4GHz frequency spectrum and provides wireless data transfer rates of up to 300Mb
$53.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $53.64
i h

Overview

The EAP110 is an ideal solution for large scale deployment of a wireless network system. Each access point can be managed in clusters of up to 24 units and the included software allows for hundreds of EAP110 to be controlled by any PC on the network. Its compact chassis has been designed for easy installation on ceilings or walls while the PoE connectivity means installation becomes a single cable affair. Perfect for shopping centres, hotels, universities and large businesses. 802.11N connectivity gives up to 300mbps speed. A comprehensive suite of management software is available which allows all of the features to be utilised.



Package Contents:

1 x 300Mbps Wireless N Ceiling Mount Access Point EAP110

1 x Passive PoE Adapter,

1 x Power Cord,

1 x Mounting Kits,

1 x Resource CD

1 x Installation Guide





Specifications:



Hardware Features:

Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）

Button: Reset

Power Supply: 24VDC / 1A Passive PoE Supply

Power Consumption: 7.7W

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions: 180W x 180D x 47.5H mm

Antenna Type: Internal 2* 3dBi Omni

Mounting: Ceiling /Wall Mounting (Kits included)

Physical Security Lock: Kensington Lock Slot

Watch Dog: Yes



Wireless Features:

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency: 2.4-2.4835GHz

Signal Rate:

11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)



Reception Sensitivity:

300M: -71dBm@10% PER

150M: -75dBm@10% PER

54M: -78dBm@10% PER

11M: -93dBm@8% PER

6M: -92dBm@10% PER

1M: -96dBm@8% PER



Wireless Functions:

Multiple SSIDs（Up to 8 SSIDs）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client



Wireless Security:

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK



Transmission Power:

CE: <20dBm

FCC: <26dBm



Management:

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS



Others:

Certification: CE, FCC, RoHS

System Requirements: Microsoft Windows 10/8/7/Vista/XP



Features:

  • EAP Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Passive PoE for convenient and affordable installation
  • Simple mounting design to easily mount to a wall or ceiling
  • 300Mbps wireless data rate for uninterrupted wireless connection
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Rate limit on per SSID to restrict the bandwidth of each client
  • Access Control restricts or allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to be rebooted automatically within a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Load balance ensures large numbers of users have smooth network experiences in large business networks
  • Compatible with 802.11 b/g/n products
  • Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
  • QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
  • Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

Details

Products specifications

Warranty 5 Years
Tech & Data
Type Wireless Access Points
