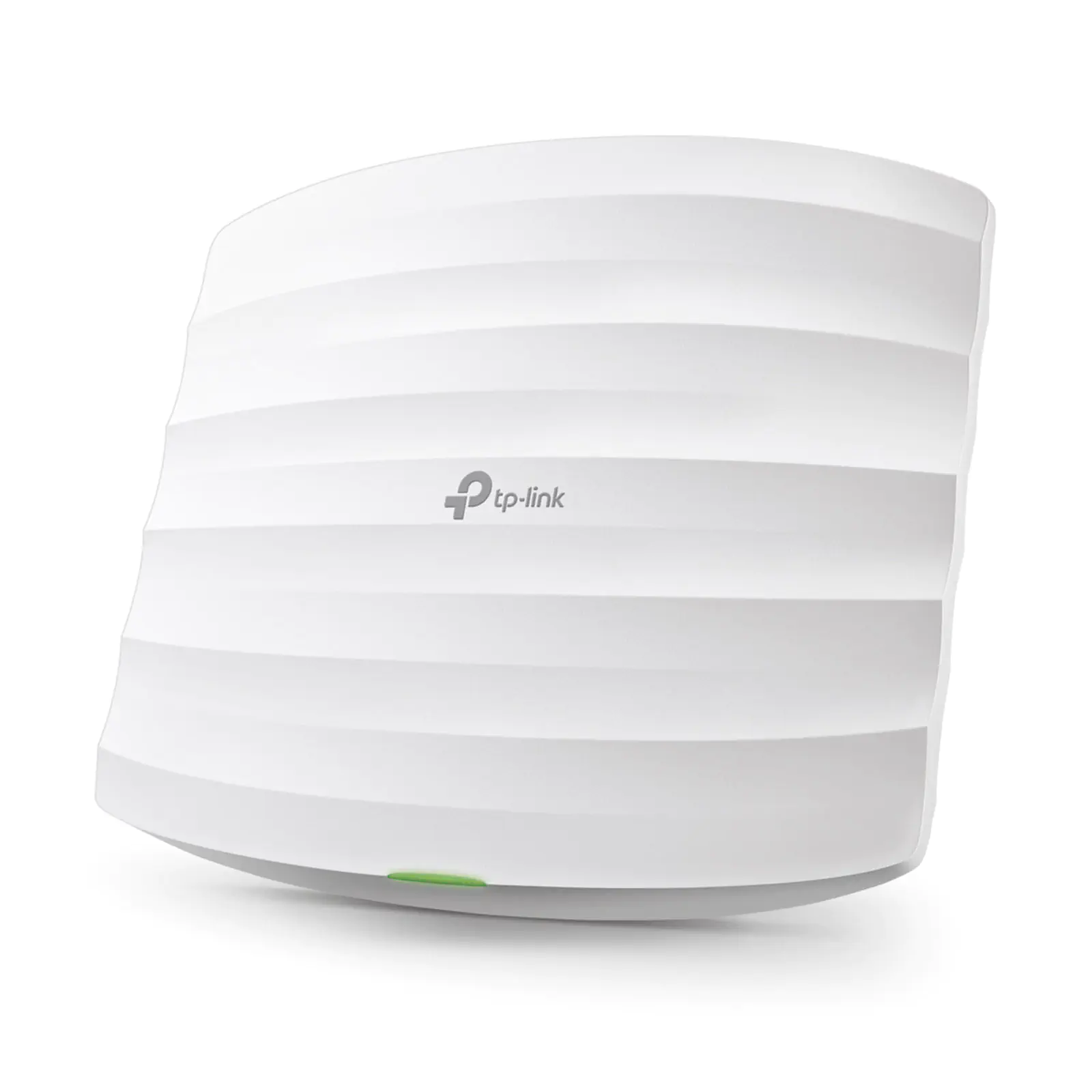

EAP225 AC1350 Wireless Gigabit Ceiling Mount Access Point

by: TP-Link
SKU: S9747
As a long range indoor wireless device, the EAP225 is designed to provide a multiple connection and long distance wireless networking solution. It operates seamlessly in the 2.4GHz and 5GHz frequency spectra and provides wireless data transfer rates of up to 1200Mb
$139.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $139.77
i h

Overview

The EAP225 is an ideal solution for large scale deployment of a wireless network system. Each access point can be managed in clusters of up to 24 units and the included software allows for hundreds of EAP225 to be controlled by any PC on the network. Its compact chassis has been designed for easy installation on ceilings or walls while the PoE connectivity means installation becomes a single cable affair. Perfect for shopping centres, hotels, universities and large businesses. 802.11AF connectivity gives up to 1200mbps speed. A comprehensive suite of management software is available which allows all of the features to be utilised. Dimensions: 205.5W × 181.5D × 37.1Hmm

Package Contents:

1 x AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225

1 x Passive PoE Adapter

1 x Power Cord

1 x Mounting Kits

1 x Installation Guide





Specifications:



Hardware Features

Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)

Physical Security Lock: Yes

Button: Reset

Power Supply: 802.3af/at PoE. 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: EU: 10.5 W, US: 12.6W

Antenna Type: 3 Internal Omni *, 2.4GHz: 4dBi, 5GHz: 5dBi

Mounting: Ceiling /Wall Mounting (Kits included)

Watch Dog: Yes



Wireless:

Wireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4GHz and 5GHz

Signal Rate: 5GHz:Up to 867Mbps, 2.4GHz:Up to 450Mbps



Wireless Functions:

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Band Steering

Load Balance

MU-MIMO *

Airtime Fairness *

Beamforming *

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client



Wireless Security:

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support



Transmission Power:



CE:

=20dBm(2.4GHz,EIRP)

=23dBm(5GHz,EIRP)



FCC:

=24dBm(2.4GHz)

=22dBm(5GHz)



Management:

Omada App: Yes

Centralized Management:

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes



General

Certification: CE, FCC, RoHS

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Operating Temperature: 0℃~60℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Features:

  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.



Details

Products specifications

Warranty 5 Years
Tech & Data
Type Wireless Access Points
