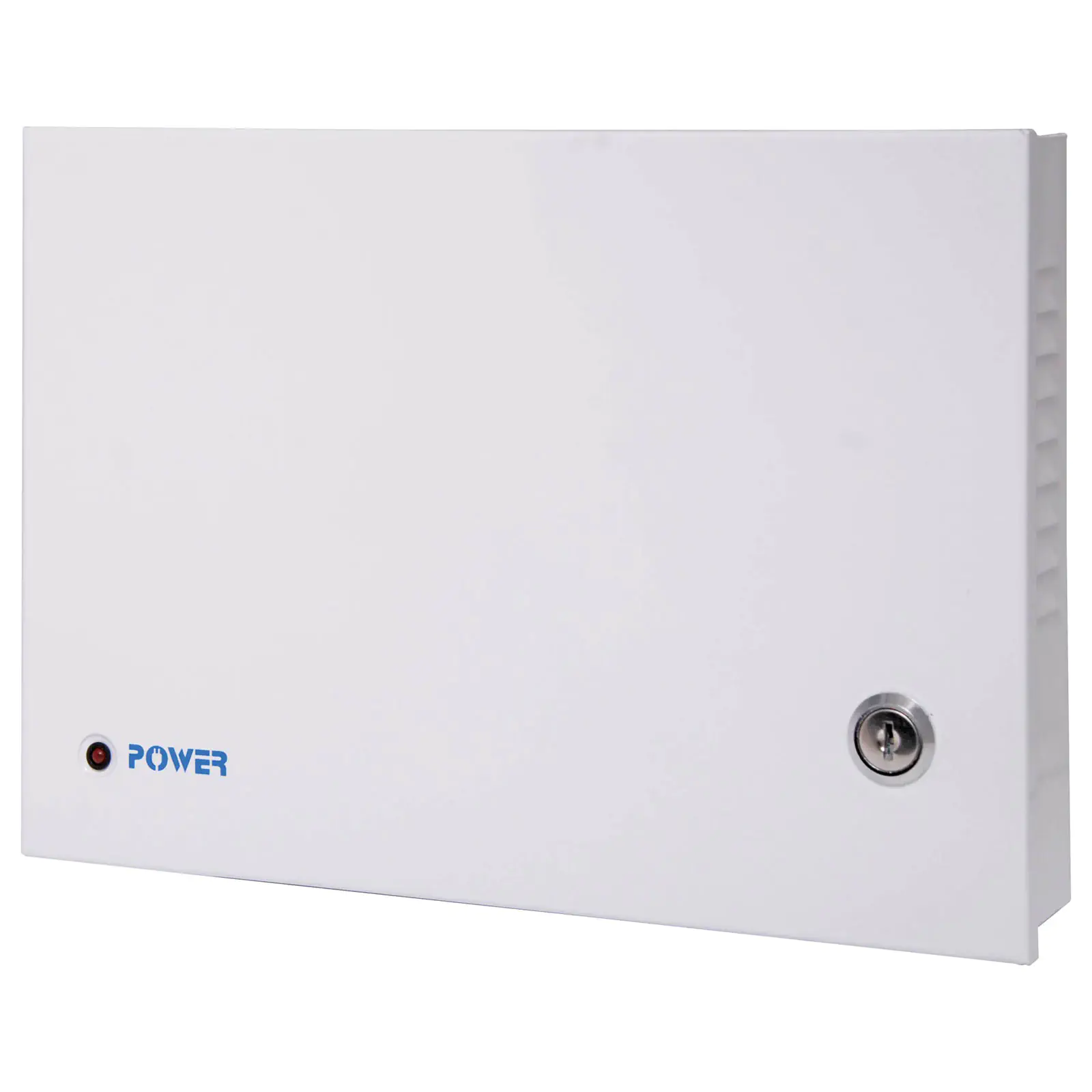

18 Way 12V DC CCTV Power Supply 15A

SKU: S9752A
Designed for powering up to a maximum of eighteen 12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers.
$208.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $208.18
2+ $195.45
4+ $172.73
i h

Overview

Designed for powering up to a maximum of 18 12V DC powered CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. Outputs are fuse protected at 1A and may be parallelled together if higher current is required for your chosen camera. Each output is protected to prevent spikes and surges damaging connected cameras. Screw terminals are provided for each circuit. Output current limiting and over voltage protection is included. Overall total max load is 15A (max 1.2A per output). Includes power lead. Indoor use only. Dimensions: 290W x 210H x 55Dmm.







Specifications:



Input Voltage: AC 100~240V 50-60Hz

Input fuse: 5A 250V

Output Voltage: DC 12V ADJ 12-14V

Output Current: 15A

Ripple current: 100mV

Dimensions: 290W x 210H x 55D mm



Features:

  • Short circuit protection
  • Over current protection
  • Over voltage protection
