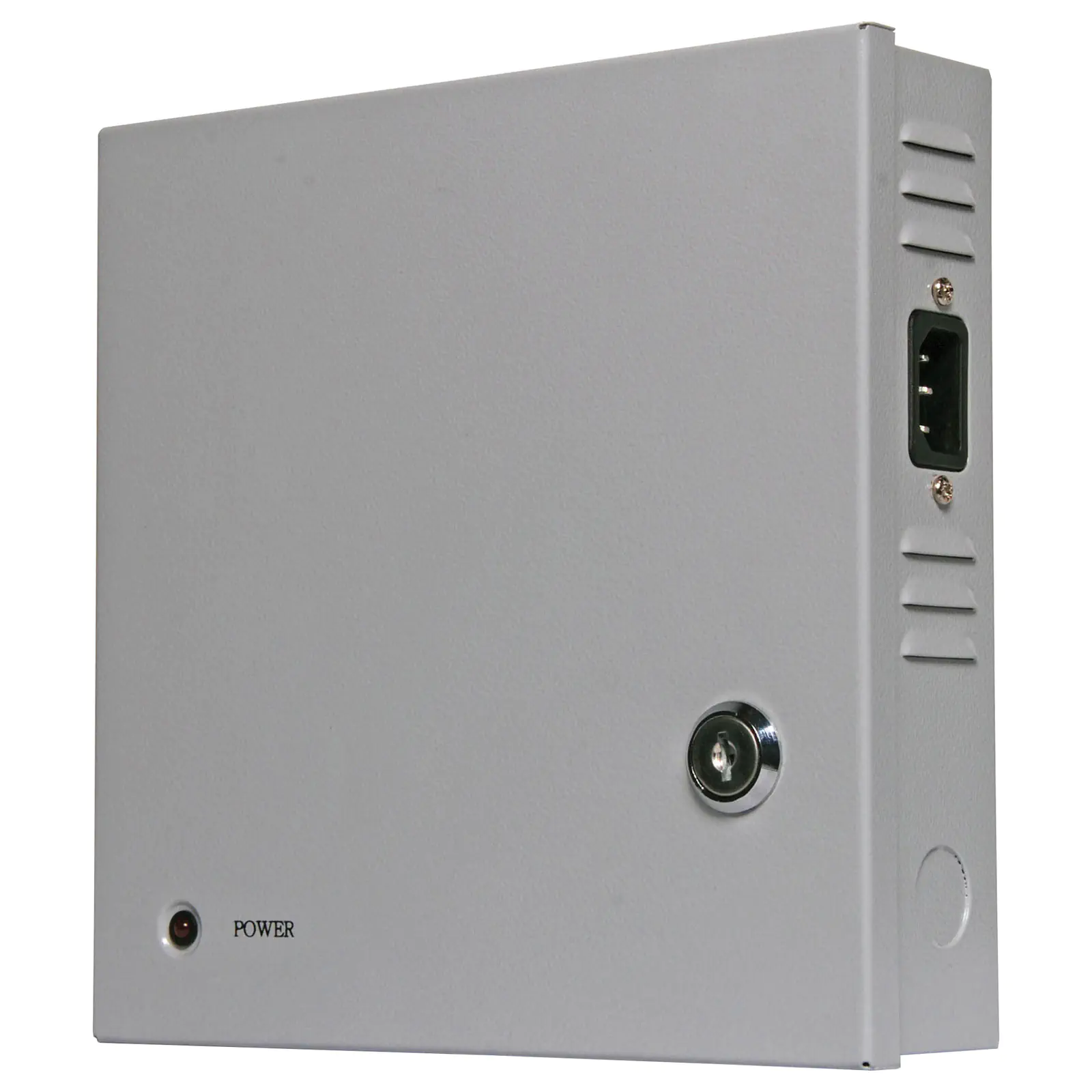

9 Way 12V DC CCTV Power Supply 7.5A

SKU: S9753B
Designed for powering up to a maximum of nine 12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. There is a host of protection on each output to prevent spikes and surges damaging the connected cameras.
$140.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $140.91
2+ $127.27
4+ $113.64
i h

Overview

Designed for powering up to a maximum of nine 12V DC CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC. Overall total continuous load is 7.5A with a peak current of 10A. Housed in a sturdy compact steel enclosure with lockable door. Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side. Indoor use only.





Specifications:



Input power: 100-240V a.c. @ 50-60Hz

Output power: 12V d.c. 10% tolerance, adjustable 11-14V d.c.

Output current (1-9): 7.5A (90W)

Peak output current: 10A (120W) max.



Features:

  • 9 individually PTC protected outputs rated 0.8A (continuous) each.
  • Short Circuit Protection
  • Overcurrent Protection
  • Overvoltage Protection

Details

Products specifications

Warranty 12 Months
CCTV & Security
Type Power Distributors

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
