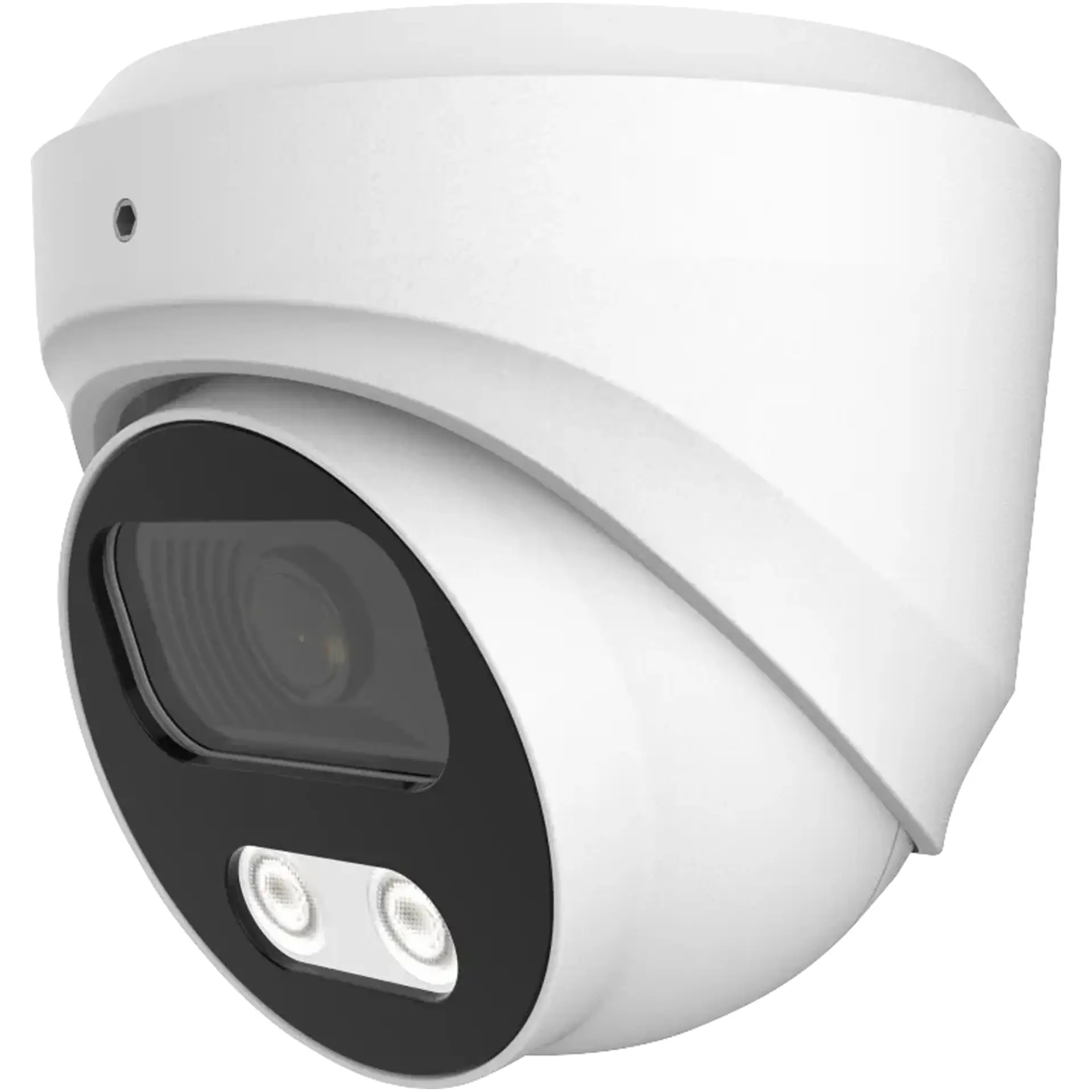

5.0 Megapixel Full Colour Dome IP Camera

by: eFocus
SKU: S9810B
A camera designed to provide full colour video day and night. The camera has a security light in-built which allows the high sensitivity sensor to reproduce colour night time imaging compared with traditional day/night cameras which only display B&W when IR is activated.
$153.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $153.64
3+ $144.55
6+ $135.45
i h

Overview

A camera designed to provide full colour video day and night. The camera has a security light in-built which allows the high sensitivity sensor to reproduce colour night time imaging compared with traditional day/night cameras which only display B&W when IR is activated. Light can also flash upon detection to deter intruders.



Features:

  • H.264, H.265+, JPEG, MJPEG compression
  • Offers night time colour video
  • Ideal for domestic installations
  • In-built LED security light
  • Motion detect flashing mode
  • Metal housing
  • Simultaneous multiple streams
  • Supports ONVIF
  • SD card slot
  • PoE receiver



Specifications:



Camera

Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

Resolution: 5MP

Effective Pixels: 2616 (H)*1964 (V)

Compression: H.264/H.265/H.264+/H.265+

Audio Compression: G711A/U,AAC,MP2L2

TV System: PAL/NTSC

Electronic Shutter Time: Auto: 1/3-1/100000Sec

Minimum Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux white light, B/W: 0 Lux with IR

S/N Ratio: 60dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional



Lens

Focus Length: Board Lens 2.8mm

Focus Control: Fixed

Lens Type: Fixed

Pixels: 5MP



Night Vision

Supplement Light: 38μ x 2PCS(Warm light LED 4000K),38μ x 2PCS IR LED

Supplement Light Distance IR: 40m, Warm light: 30m

Supplement Light Status: Auto Control

Supplement Light Power On: Smart, Manual & Timed mode



Network

Ethernet: RJ-45 (10/100Base-T)

Wireless: N/A

Protocol: TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x

ONVIF: Support ONVIF 19.12(Profile S/T)

P2P: YES

POE: Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the Lan)

Main Stream 1: 2592*1944@30fps

Main Stream 2: 2560*1440@30fps

Main Stream 3: 1920*1080@30fps, 1280*720@30fps

Sub Stream 1: 1280*720@30fps

Sub Stream 2: 720*480@30fps

Sub Stream 3: N/A

Tri Stream: N/A

IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone: iPhone, Android



AI Function

Intelligent Analysis: Intrusion Detection(based on human and Vehicle Detection), Line Cross Detection(based on human and Vehicle Detection), Loiter Detection(based on human detection), People Gather Detection(based on human detection), Motion detection based on human detection, Enter Area(based on human and Vehicle Detection), Leave Area(based on human and vehicle Detection)



Camera Features

Day/Night: Color/ B&W (IR-CUT)

Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC

Full Colour: Support

Corridor Pattern: Support

Defog Mode: N/A

ROI: Support

BLC: Support

WDR: Support

Motion Detection: Support (support enable the detection based on human movement only)

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian



Interface

Audio: Built-in MIC, Optional Audio In, Audio In&Out

Alarm: N/A or Optional 1 Channel Input/Ouput

SD Card Slot: External, Support Max 256GB

RS485: N/A



General

Housing: Metal, IP67

Anti-cut Bracket: NO

IR Cut Filter: YES

Operation Temperature: -20℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: DC12V±10%, 1000mA

Dimension: 96Ø x 91(H) mm

Weight: 430g



Details

Products specifications

Warranty 12 Months
CCTV & Security
Output IP Cameras
Type Dome Cameras
