NEW

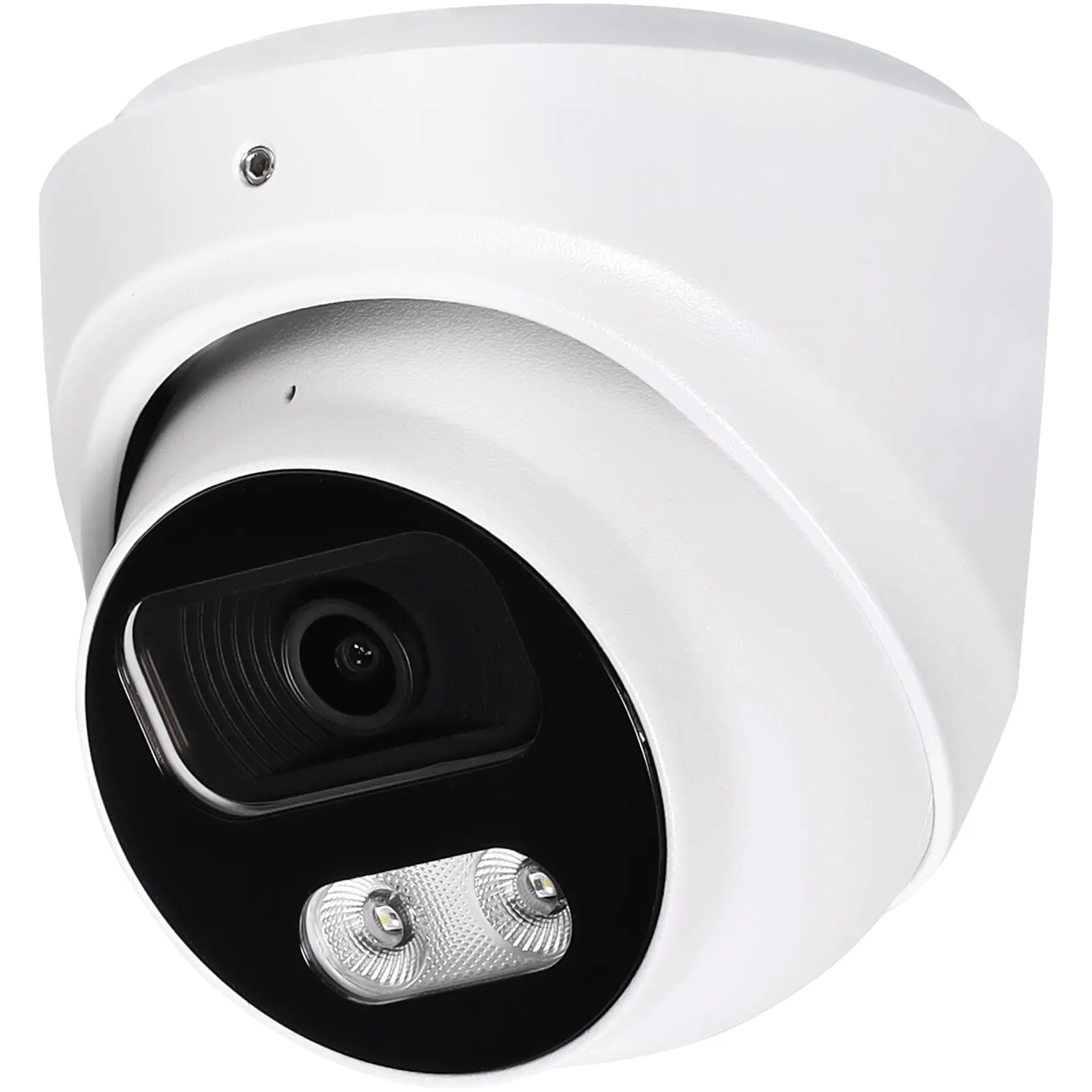

8.0 Megapixel Full Colour Dome IP Camera

by: eFocus
SKU: S9812B
Suitable for outdoor commercial installations requiring a weatherproof and vandal resistant camera. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs.
$195.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $195.45
3+ $186.36
6+ $177.27
i h

Overview

This 8 megapixel camera is suitable for outdoor commercial installations requiring a weatherproof and vandal resistant camera. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. Motion detect triggering is also available.



Features:

  • H.264+ & H.265+ compression
  • Offers night time colour video
  • Ideal for domestic installations
  • In-built LED security light
  • Motion detect flashing mode
  • Metal housing
  • Simultaneous multiple streams
  • Supports ONVIF
  • SD card slot
  • PoE receiver





Specifications:


Camera

Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

Resolution: 8MP

Effective Pixels: 3864(H)*2192(V)

Compression: H.264/H.265/H.264+/H.265+

Audio Compression: G711A/U,AAC,MP2L2

TV System: PAL/NTSC

Electronic Shutter Time: Auto: 1/3-1/100000Sec

Minimum Illumination: Color: 0.005 Lux (F1.6, AGC ON), 0 Lux white light, B/W: 0 Lux with IR

S/N Ratio: 60dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional


Lens

Focus Length: Board Lens 2.8mm

Focus Control: Fixed

Lens Type: Fixed

Pixels: 8MP


Night Vision

Supplement Light: 38μ x 2PCS

Supplement Light Distance IR: 40m, Warm light: 30m

Supplement Light Status: Auto Control

Supplement Light Power On: Smart, Manual & Timed mode


Network

Ethernet: RJ-45 (10/100Base-T)

Wireless: N/A

Protocol: TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x

ONVIF: Support ONVIF 19.12(Profile S/T)

P2P: YES

POE: Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the Lan)

Main Stream 1: 3840*2160@20fps

Main Stream 2: 2560*1440@20fps

Main Stream 3: 1920*1080@20fps, 1280*720@20fps

Sub Stream 1: 1280*720@20fps

Sub Stream 2: 720*480@20fps

Sub Stream 3: N/A

Tri Stream: N/A

IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone: iPhone, Android


AI Function

Intelligent Analysis: Intrusion Detection(based on human and Vehicle Detection), Line Cross Detection(based on human and Vehicle Detection), Loiter Detection(based on human detection), People Gather Detection(based on human detection), Motion detection based on human detection, Enter Area(based on human and Vehicle Detection), Leave Area(based on human and vehicle Detection)


Camera Features

Day/Night: Color/ B&W (IR-CUT)

Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC

Full Colour: Support

Corridor Pattern: Support

Defog Mode: N/A

ROI: Support

BLC: Support

WDR: Support

Motion Detection: Support (support enable the detection based on human movement only)

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian


Interface

Audio: Built-in MIC, Optional Audio In, Audio In&Out

SD Card Slot: External, Support Max 256GB


General

Housing: Metal , IP67

Anti-cut Bracket: NO

IR Cut Filter: YES

Operation Temperature: -20℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: DC12V±10%, 1000mA

Dimension: Ø96 x 91(H) mm

Weight: 430g

Details

Products specifications

Warranty 12 Months
CCTV & Security
Output IP Cameras
Type Dome Cameras
Resolution WQHD (4MP)

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
