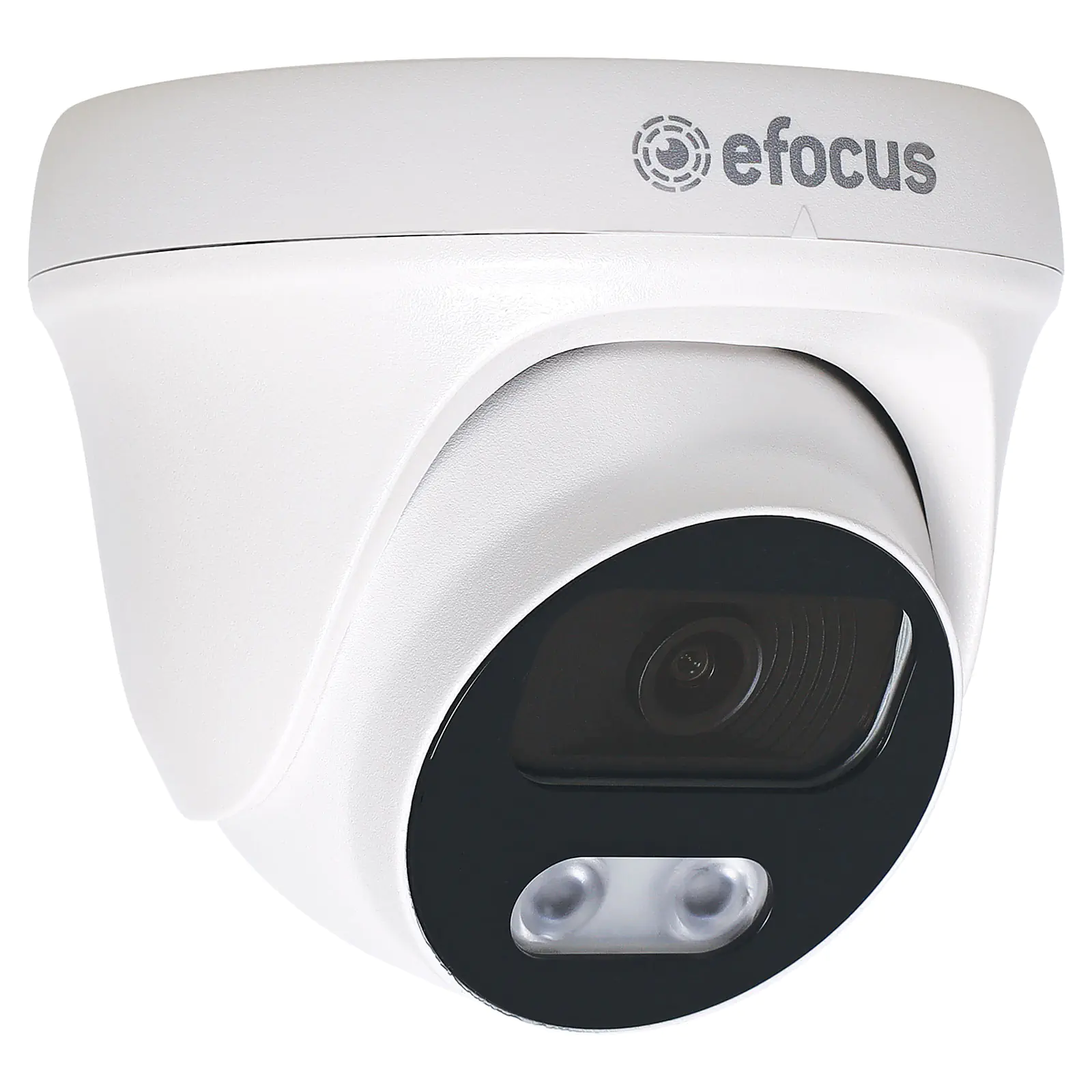

5.0 Megapixel Weatherproof IP Dome Camera

by: eFocus
SKU: S9815B
A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD network video recorders. Motion detect triggering is also available.
Save $45.46 $126.36 $171.82

All Prices Shown are (ex GST)
Bulk Pricing
ea
$126.36 $171.82
3+
$126.36 $154.55
6+
$126.36 $140.91
i h

Overview

A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD network video recorders. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders.







Specifications:



Camera

Image Sensor: 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor

Resolution: 5MP

Effective Pixels: 2616 (H) x 1964 (V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System: PAL/NTSC

Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

Minimum Illumination: 0.01Lux

S/N Ratio: =52dB

Scanning System: Progressive

Video Output: Network



Lens

Focus Length: 2.8mm

Focus Control: Fixed

Lens Type: Fixed

Pixels: 5MP



Night Vision

Infrared LED: 42µ x 2PCS

Infrared Distance: 25M

IR Status: Auto Control

IR Power On: Smart, Manual & Timed Mode



Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, UPnP, SMTP, UDP

ONVIF: Support ONVIF 2.4(Profile S/T/G)

P2P: YES, Support QR Code

POE: Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the Lan)

Main Stream 1: 2592*1944@30fp

Main Stream 2: 2560*1440@30fp

Main Stream 3: 1920*1080@30fps, 1280*720@30fps

Sub Stream 1: 1280*720@30fps, 720*480@30fps

Sub Stream 2: 352*288@30fps

Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps

IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone: iPhone, iPad, Android, Android Pad



AI Function

Intelligent Analysis Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection



Camera Features

Day/Night: Color/ B&W (IR-CUT)

Image Config: Saturation, Brightness, Contrast, Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion

Corridor Pattern: Support

Defog Mode: Support

ROI: Support

BLC: Support

WDR: HDR: 120dB

Motion Detection: Support

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese,

Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese.



Interface

Audio: 1 Built-in MIC (Optional Audio LINE IN/OUT)

SD Card Slot: Internal, Support Max 512GB,Built in 4G Storage



General

Housing: Metal , IP67

Anti-Cut Bracket: NO

IR Cut Filter: YES

Operation Temperature: -20℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: DC 12V±10%, 700mA

Dimension:￠109 x 93(H) mm

Weight: 600g



Features:

  • Pro IP Dome
  • 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • 2.8mm Fixed Lens
  • IR Distance 25M Max.
  • Internal POE and SD Card Slot



Details

Products specifications

Warranty 12 Months
CCTV & Security
Output IP Cameras
Type Dome Cameras
Resolution WQHD (4MP)

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
