A day/night high resolution IP dome camera with multi-codec support.

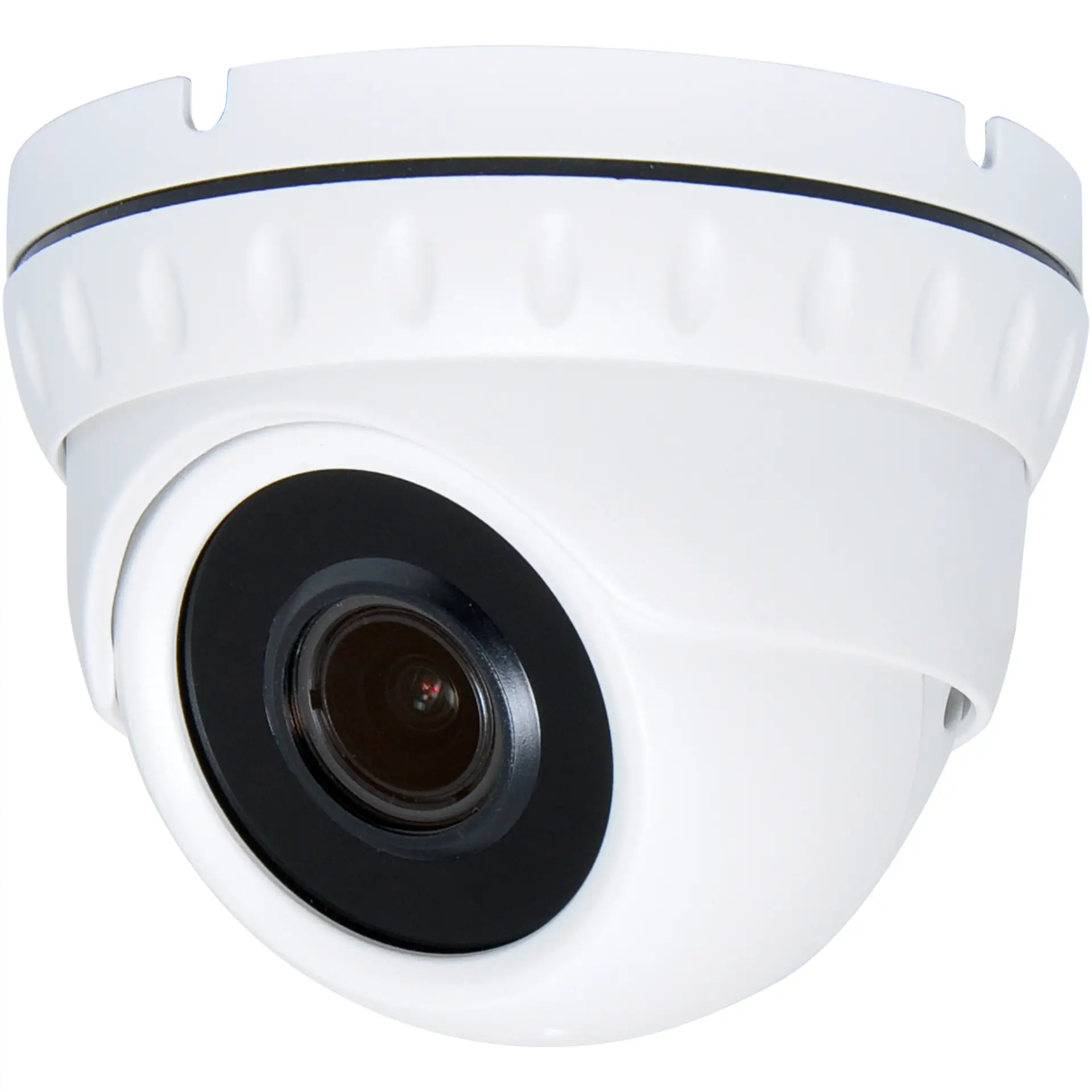

IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera

Name: IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera
SKU: S9832B
Price: 271.82 AUD
Availability: InStock

by: eFocus

SKU: S9832B

A day/night high resolution IP dome camera with multi-codec support.

$271.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$271.82
3+	$244.55
6+	$217.27

i h

Overview
Details
Warranty

Overview

This Network IP Infra-Red 5MP Vari-Focal Dome Camera With POE is a day/night high resolution IP dome camera with multi-codec support. Offering a high resolution for integration with HD network video recorders. The higher resolution 5MP sensor allows for greater detail when using digital zoom. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera also features an Infrared Distance of 30M. The camera also has a SD card slot which supports up to 512GB SD cards.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Specifications:

Camera

Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

Resolution: 5MP

Effective Pixels: 2616 (H) x 1964 (V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System: PAL/NTSC

Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Minimun Illumination: 0.01Lux

S/N Ratio: =52dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional

Lens

Focus Length: 2.7-13.5mm

Focus Control: Auto

Lens Type: Motorized

Pixels: 4MP

Night Vision

Infrared LED: 14µ x 24PCS

Infrared Distance: 30M

IR Status: Auto Control

IR Power On: Auto Control

Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP

ONVIF: Support ONVIF 2.4

P2P: YES, Support QR Code

POE: Optional/Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the Lan)

Main Stream 1: 592*1944@20fp, 2560*1920@20fps

Main Stream 2: 2560*1440@25fps

Main Stream 3: 1920*1080@30fps, 1280*720@30fps

Sub Stream 1: 720*480@15fps, 720*480@30fps

Tri Stream: 352*288@15fps, 352*288@30fps

IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)

Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

Day/Night: Color/ B&W (IR-CUT )

Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering

Corridor Pattern: Support

Defog Mode: Support

ROIS: upport

BLC: Support

WDR: DWDR: 50dB

Motion Detection: Support

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Interface

Audio: Optional

SD Card Slot: Optional, Support Max 512GB

General

Housing: Metal ,IP67

Anti-cut Bracket: NO

IR Cut Filter: YES

Operation Temperature: -20℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: DC12V±10%, 950mA

Dimension:￠131 x 93(H) mm

Weight: 800g

Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Features:

1/2.8"SONY Starvis Back-illuminated CMOS sensor
H.264/H.264+/H.265/H.265+ Compression Method
2.7-13.5mm 5X Motor Zoom Auto Focus Lens
IR Distance 30m Max.
IP67 Outdoor Metal Case

Details

Products specifications

Warranty	12 Months
CCTV & Security
Type	Dome Cameras
Resolution	WQHD (4MP)
Output	IP Cameras

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
