A day/night high resolution IP dome camera with multi-codec support.

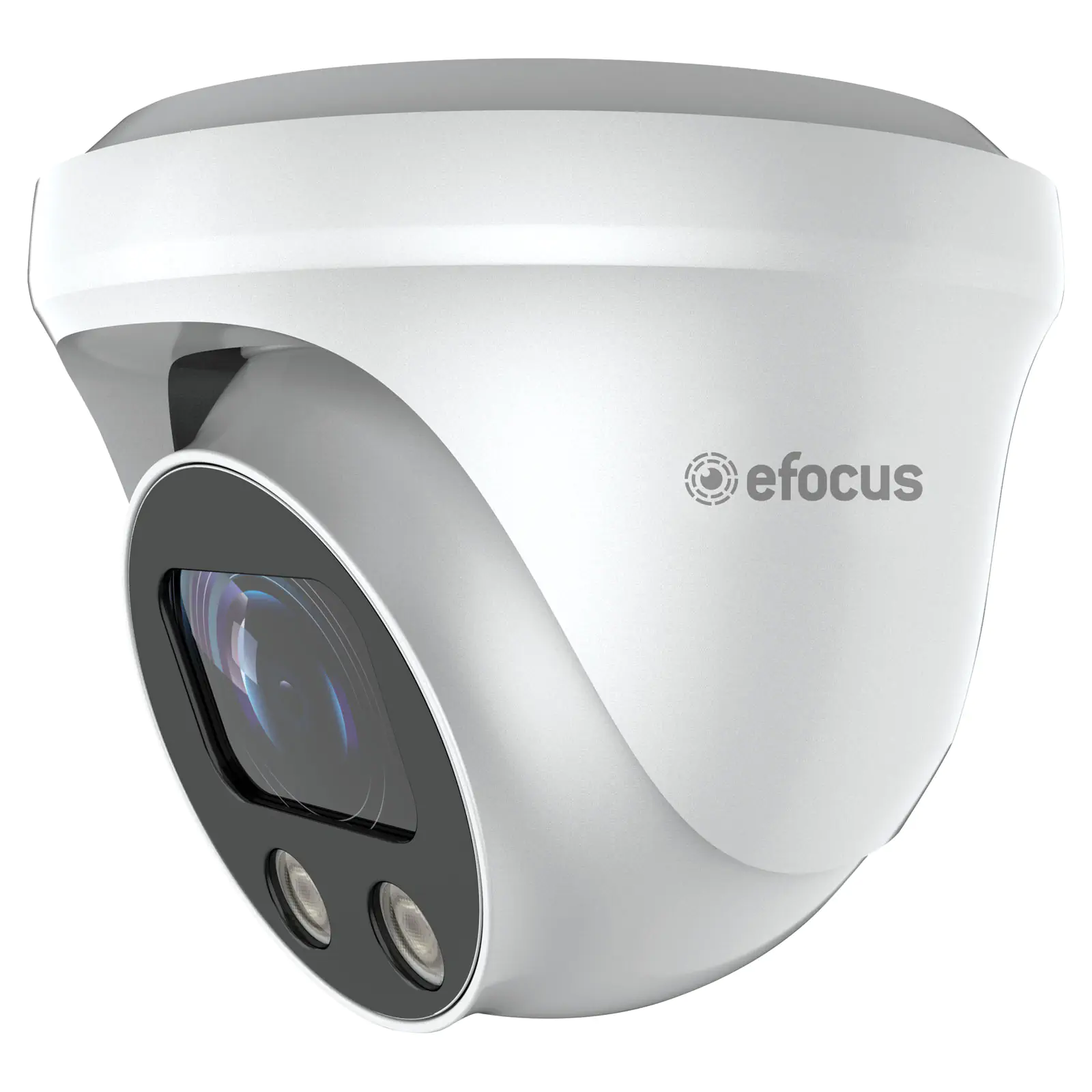

IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera

Name: IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera
SKU: S9832C
Price: 244.55 AUD
Availability: InStock

by: eFocus

SKU: S9832C

A day/night high resolution IP dome camera with multi-codec support.

Save $54.54 $244.55 ~~$299.09~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$244.55 $299.09
3+	$244.55 $280.91
6+	$244.55 $253.64

i h

Overview
Details
Warranty

Overview

This Network IP Infra-Red 5MP Vari-Focal Dome Camera With POE is a day/night high resolution IP dome camera with multi-codec support. Offering a high resolution for integration with HD network video recorders. The higher resolution 5MP sensor allows for greater detail when using digital zoom. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera also features an Infrared Distance of 30M. The camera also has a SD card slot which supports up to 512GB SD cards.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Specifications:

General

Housing: Metal, IP67

IR Cut Filter: Yes

Operation Temperature: -20°C ~ +60°C RH95% Max

Storage Temperature: -20°C ~ +60°C RH95% Max

Power Source: DC12V±10%, 700mA

Weight: 800g

Dimensions: ¢128 x 108(H)mm

Camera

Image Sensor: 1/2.8" SONY Starvis back-illuminated CMOS sensor

Resolution: 4MP

Effective Pixels: 2616 (H)*1964(V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

Audio Compression: G711A/U,AAC

TV System: PAL/NTSC

Electronic Shutter Time: Auto: 1/3-1/100000Sec

Minimum Illumination: Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR

S/N Ratio: =60dB

Scanning System: Progressive scan

Video Output: Network

Reset Button: Optional

Lens

Focus Length: 2.7-13.5mm Motor Zoom

Focus Control: Auto

Lens Type: Auto

Pixels: 4MP

Night Vision

Infrared LED: 42µ x 2PCS

Infrared Distance: 25m

IR Status: Auto Control

IR Power On: Smart, Manual & Timed mode

Network

Ethernet: RJ-45 (10/100Base-T)

Wireless: N/A

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP

ONVIF: Support ONVIF 19.12(Profile S/T/G)

P2P: Yes

PoE: Optional/Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the LAN)

Main Stream 1: 2592*1944@30fp

Main Stream 2: 2560*1440@30fp

Main Stream 3: 1920*1080@30fps; 1280*720@30fps

Sub Stream 1: 1280*720@30fps

Sub Stream 2: 720*480@30fps

Sub Stream 3: 352*288@30fps

Tri Stream: 1280*720@30fps; 720*480@30fps; 352*288@30fps

IR Browser: IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone: iPhone, Android

AI Function

Intelligent Analysis: Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detecion (based on human detection), Motion detection (based on human detection)

Camera Features

Day/Night: Colour/ B&W (IR-CUT)

Image Configuration: Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, FLK(Flicker Control), Occlusion Detection, HLC, Distortion

Full Colour: N/A

Corridor Pattern: Support

Defog Mode: Support

ROI: Support

BLC: Support

WDR: 120dB

Motion Detection: Support (support enable the detection based on human movement only)

Privacy Masking: 3 rectangular zone

Recording Mode: NVR/CMS/Web

Language: Chinese (Simplified), Chinese (Traditional), English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese

Interface

Audio: Optional 1 Built in MIC

Alarm: Optional 1 Channel Input/Output

SD Card Slot: Optional Internal/ External, Support Max 1TB, Built in 4G Storage

RS485: N/A

Features:

Pro IP Dome
1/2.8" SONY Starvis Back-illuminated CMOS Sensor
H.265+/H.265/H.264+/H.264 Compression Method
2.7-13.5mm Motorized Lens
IR Distance 25M Max.
Internal POE
