This IP 12MP Motor Zoom Dome Camera with SD Card Slot is a high resolution dome camera that will make a perfect security solution for an outdoor space

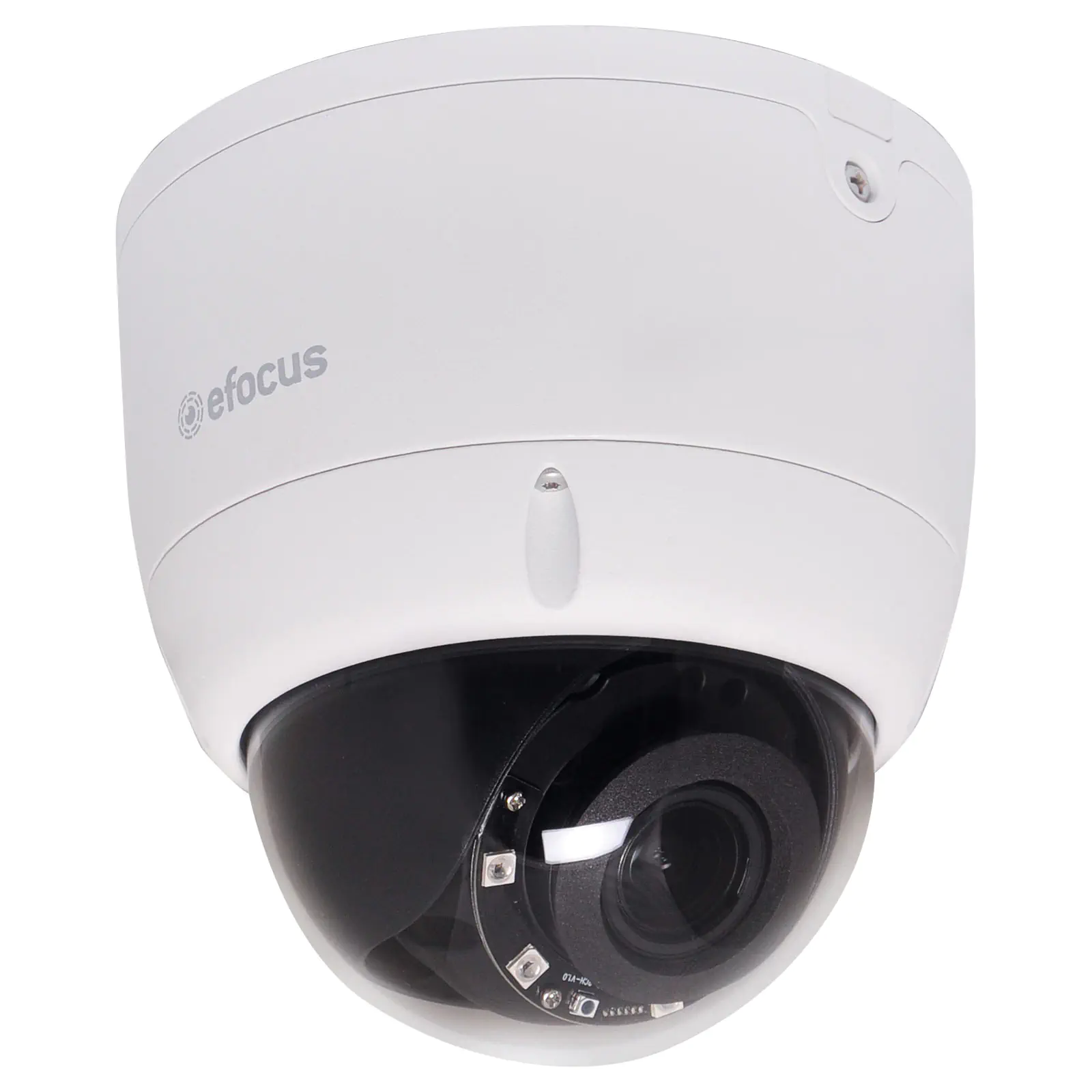

12.0 Megapixel Motor Zoom IP Dome Camera

Name: 12.0 Megapixel Motor Zoom IP Dome Camera
SKU: S9834A
Price: 362.73 AUD
Availability: InStock

by: eFocus

SKU: S9834A

This IP 12MP Motor Zoom Dome Camera with SD Card Slot is a high resolution dome camera that will make a perfect security solution for an outdoor space.

$362.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$362.73
3+	$353.64
6+	$344.55

i h

Overview
Details
Warranty
Downloads

Overview

This IP 12MP Motor Zoom Dome Camera with SD Card Slot is a high resolution dome camera that will make a perfect security solution for an outdoor space. With a IP67 metal case it will be suitable for outdoor conditions. This camera also features a 3.6-11mm 3X Motor Zoom Auto Focus Lens and a 1/1.7"SONY Low Illumination CMOS Sensor.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Specifications:

Camera

Image Sensor: 1/1.7" SONY Low Illumination CMOS Sensor

Resolution: 12MP

Effective Pixels: 4072 (H) × 3046 (V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System: PAL/NTSC

Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Minimun Illumination: 0.01Lux

S/N Ratio: =52dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional

Lens

Focus Length: 3.6-11mm

Focus Control: Auto

Lens Type: Motorized

Pixels: 12MP

Night Vision

Infrared LED: 42µ x 4PCS

Infrared Distance: 30M

IR Status: Auto Control

IR Power On: Auto Control

Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF: Support ONVIF 2.4

P2P: YES, Support QR Code

POE: Internal, Support IEEE 802.3af

Video Delay: 0.3S (Within the Lan)

Main Stream 1: 4000*3000@20fps

3840*2160 @30fps

3072*2048@30fps

Main Stream 2: 2592*1944@30fps

2560*1920@30fps

Main Stream 3: 2560*1440@30fps

1920*1080@30fps

1280*720@30fps

Sub Stream 1: 720*480@20fps

720*480@30fps

Tri Stream: 352*288@20fps

352*288@30fps

IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)

Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

Day/Night: Color/ B&W (IR-CUT )

Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering

Corridor Pattern: Support

Defog Mode: Support

ROI: Support

BLC: Support

WDR: DWDR: 50dB

Motion Detection: Support

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese

Interface

Audio: 2-Way Audio

Alarm 1: channel Input/Output

SD Card Slot: Optional, Support Max 512GB

General:

Housing: Metal ,IP67

Anti-cut Bracket: Optional

IR Cut Filter: YES

Operation Temperature: -20℃ ~ +60℃ RH95% Max

Storage Temperature: -20℃ ~ +60℃ RH95% Max

Power Source: 12V DC±10%, 950mA

Dimension: ￠142 x 142(H) mm

Weight: 1200g

Features:

1/1.7"SONY Low Illumination CMOS Sensor
H.264/H.265 Compression Method
3.6-11mm 3X Motor Zoom Auto Focus Lens
IR Distance 30m Max.
IP67 Outdoor Metal Case

Details

Products specifications

Warranty	12 Months
CCTV & Security
Output	IP Cameras
Type	Dome Cameras
Resolution	12MP

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Firmware Update

ZIP
