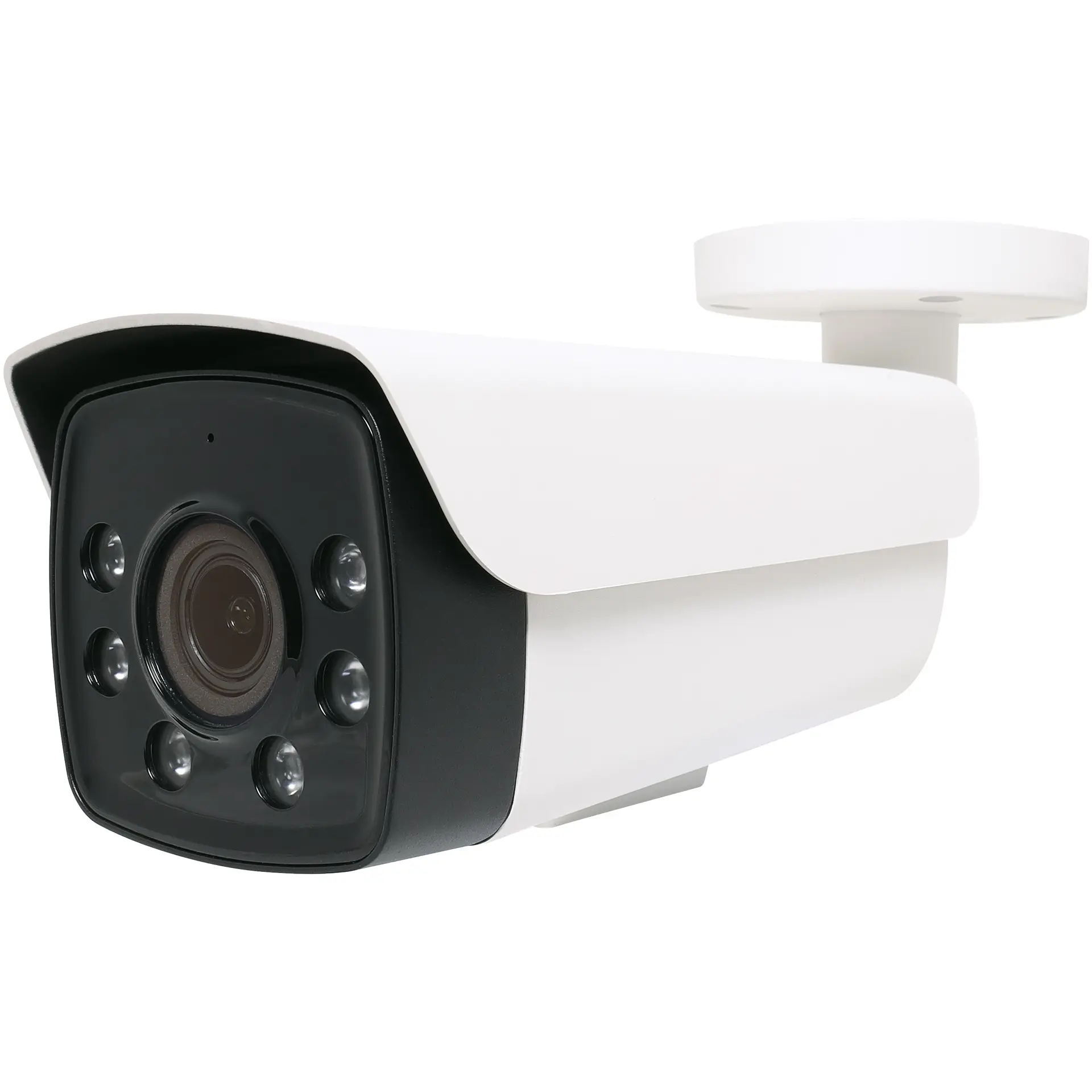

5MP Motor Zoom 2.7-13.5mm POE IP67 Bullet Camera

by: eFocus
SKU: S9839C
This 5MP Motor Zoom 2.7-13.5mm POE IP67 Bullet Camera is a day/night high resolution IP67 bullet camera with multi-codec support.
$317.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $317.27
3+ $290.00
6+ $271.82
i h

Overview

This 5MP Motor Zoom 2.7-13.5mm POE IP67 Bullet Camera is a day/night high resolution IP67 bullet camera with multi-codec support. Offering a high resolution for integration with HD network video recorders. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. It also features Infrared with a distance of 60m max.







Specifications:



Camera

Image Sensor: 1/2.8" SONY Starvis Back Illuminated CMOS Sensor

Resolution: 5MP

Effective Pixels: 2616 (H) x 1964 (V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System: PAL/NTSC

Electronics Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

Minimum Illumination: 0.01Lux

S/N Ratio:  =52dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional



Lens

Focus Length: 2.7-13.5mm

Focus Control: Auto

Lens Type: Auto

Pixels: 5MP



Night Vision

Infrared LED: 42µ x 6pcs

Infrared Distance: 60m

IR Status: Auto Control

IR Power On: Smart, Manual and Timed mode



Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP

ONVIF: Support ONVIF 19.12 (Profile S/T/G)

P2P: Yes, Support QR Code

POE: Optional/Internal, Support IEEE 802.3af

Video Delay: 0.3 seconds (Within the LAN)

Main Stream 1: 2592*1944@30fp

Main Stream 2: 2560*1440@30fp

Main Stream 3: 1920*1080@30fps, 1280*720@30fps

Sub Stream 1: 1280*720@30fps, 720*480@30fps

Sub Stream 2: 352*288@30fps

Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps

IR Browser: IE8-11, Google Chrome, Firefox , Mac Safari

Smart Phone: iPhone, iPad, Android, Android Pad



AI Function

Intelligent Analysis: Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection, Motion Detection (based on human detection)



Camera Features

Day/Night: Colour/B&W (IR-CUT)

Image Configuration: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion

Corridor Pattern: Support

Defog Mode: Support

ROI: Support

BLC: Support

WDR: HDR: 120dB

Motion Detection: Support

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese



Interface

Audio: Optional, 1 Built-In Microphone

Alarm: Optional, 1 Channel Input/Output



General

Housing: Metal, IP67

Anti-Cut Bracket: No

IR Cut Filter: Yes

Operating Temperature: -20°C ~ +60°C, RH 95% (max)

Storage Temperature: -20°C ~ +60°C, RH 95% (max)

Power Source: 12V DC ± 10%, 1100mA

Weight: 2.15kg

Dimensions: 220(W) x 109(H) x 106(D)mm



Features:

  • Pro IP Bullet
  • 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • 2.7-13.5mm Motorised Lens
  • IR Distance 60M Max.
  • With Internal POE



Details

Products specifications

Warranty 12 Months
CCTV & Security
Resolution 5MP
Output IP Cameras
Type Bullet Cameras

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
