5MP AHD Real Time CCTV Hybrid DVR + 4 Camera Bullet Package

Name: 5MP AHD Real Time CCTV Hybrid DVR + 4 Camera Bullet Package
SKU: S9901J
Price: 453.64 AUD
Availability: InStock

by: eFocus

SKU: S9901J

$453.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$453.64
2+	$408.18
3+	$362.73

i h

Overview
Specifications
Details
Warranty

Overview

This 5MP AHD Real Time CCTV Hybrid DVR + 4 Camera Bullet Package is total home or small business solution. The package includes cameras, digital video recorder, connection leads & power supplies. It's easily installs in just a few hours. Ideal for home or office.

Just add a hard drive and plug it in! This package now features 5MP AHD recording on each channel & hybrid video recording for easy integration with IP cameras (IP cameras not included in package).

Professional grade Hybrid Video Recorder (HVR).
The HVR includes professional grade features such as adjustable video quality, H.264 compression, external USB drive support, HDMI monitor connection, file management, date/time stamping, mouse & IR remote; schedule & motion. Ethernet connection provides the convenience of remote monitoring (but not archive footage playback) on most platforms and smart devices. CVI, TVI 2.0, TVI 3.0 and ONVIF compatible IP cameras may also be connected.

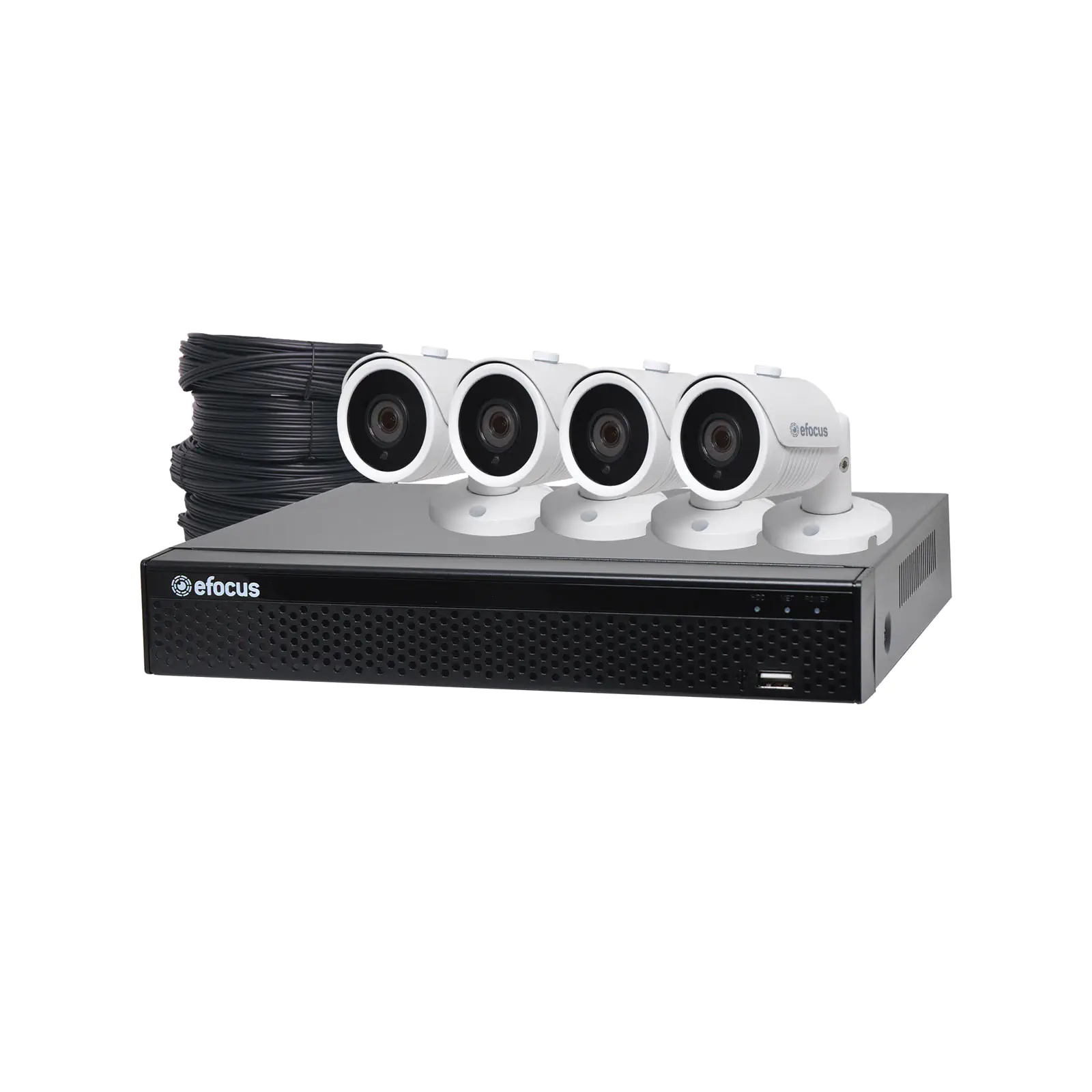

Package contents
• H.264 digital video recorder.
• 4 x bullet cameras
• 18m BNC & power combo leads.
• Power splitter lead.
• Power supply.

NOTE: Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

Features:

1 x 4CH 5MP AHD XVR Metal Case
4 x 5MP Outdoor Bullet AHD IR 25m
4 x 18M Coaxial Cable
1 x 5CH Power Splitter Cable
1 x DC12V/5A Power Adapter
1 x USB Mouse

Specifications

Package

NVR: 1x XVRDA2004HD

Camera: 4 x LBH30AD500FK

Cable: 4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)

Mouse: 1xUSB 2.0 Mouse

Hard Disk: No

Adaptor: 1xDC12V/5A

Weight: 7.9kg/SET

Camera Model

Camera

Image Sensor: 1/2.5" CMOS sensor

Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080

TV System: PAL/NTSC

Electronic Shutter: AUTO

Scanning System: Progressive Scan

Lens

Focus Length: 3.6mm

Focus Control: Fixed

Lens Type: Fixed

Night Vision

IR Cut Filter: YES

Infrared LED: 14µ x 20PCS

Infrared Distance: 25M

IR Status: AGC Auto Control

Camera Features

Day/Night: YES

OSD Menu: YES

WDR: YES

UTC: YES

Noise Reduction: DNR

White Balance: AUTO / MANUAL

Gain Control: AUTO

General

Housing: Metal, IP66

Bracket: YES

Operation Temperature: -10? ~ +50? RH95% Max

Storage Temperature: -20? ~ +60? RH95% Max

Power Source: DC12V±10%, 700mA

Dimension: 157(W) x 70(H) x 66(D)mm

Weight: 650g

DVR Model

System

Main Processor: HI3520DV400

Operating System: Embedded LINUX

Video

Input: Normal Mode: Analog: 4*(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)

Lite Mode: Analog: 4*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)

Network: 12*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth =48M)

Input: 4CH BNC

Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

Output: 1HD,1 VGA

Audio

Input: 4 Channel, RCA

Two-way Audio: NO

Output: 1 Channel, RCA

Alarm

Sensor Input: NO

Output: NO

Motion Detection: 4 Channel(max 9 Channel in pure network mode)

Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)

Email Alarm: Send Image to The Designated E-mail

PTZ

Interface: RS485

Protocol: Pelco-D, Pelco-P

Baud Rate: 110~921600

Address: 0~255

Display

VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

HD Output: Normal Mode: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

Lite Mode: Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split: 9 Channel/4 Channel / 1Channel

Privacy Masking: 3 Rectangular Zones (Each camera)

OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression: H.265/H.265+/H.264/H.264+

Audio Compression: G.711u

Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

Video Quality: worst/worse/ordinary/well/best

Record Rate: Normal Mode:

Analog: PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)

NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

Lite Mode:

Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)

Pure IP(H.265):

PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,960P@12×25fps,720P@12×25fps,D1@12×25fps

NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps, 960P@12×30fps, 720P@12×30fps, D1@12×30fps

Record Mode: ManualTimerMotion Detection

Playback & Backup

Decode Capability: 2CH 1080P@30fps

Sync Playback: Pure Analog: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps

Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 3CH 1080p@15fps

Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback: 1Channel

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen

Smart Phone Playback: 4 Channel

Backup Mode: USB Device(with format FAT 32 )/Network

Network

Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP

DDNS, Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN

Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

CMS SoftwareSupport Windows 7/ Windows 8/Windows 10

Extra Stream: CIF(1~25fps)

Smart Phone: iPhone, iPad, Android ,Android pad

Hard Disk Driver

Interface Type:1 SATA Interface

Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

General

Language: Chinese Simplified, Chinese Traditional, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese

UTC Control: YES

USB Interface: 2 USB 2.0 Interfaces

Power consumption: DC 12V =6W (Without Hard Disk)

Working Environment: -10~55?/10~90%

Dimension: (W×D×H)260*215*43(mm)

Weight: 2kg (Without HDD)

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
