This package is a total home or small business solution as it contains 4 5MP bullet cameras and 4 5MP dome camera to suit a variety of needs and spaces. Cameras plus a surveillance DVR with 5MP recording and more.

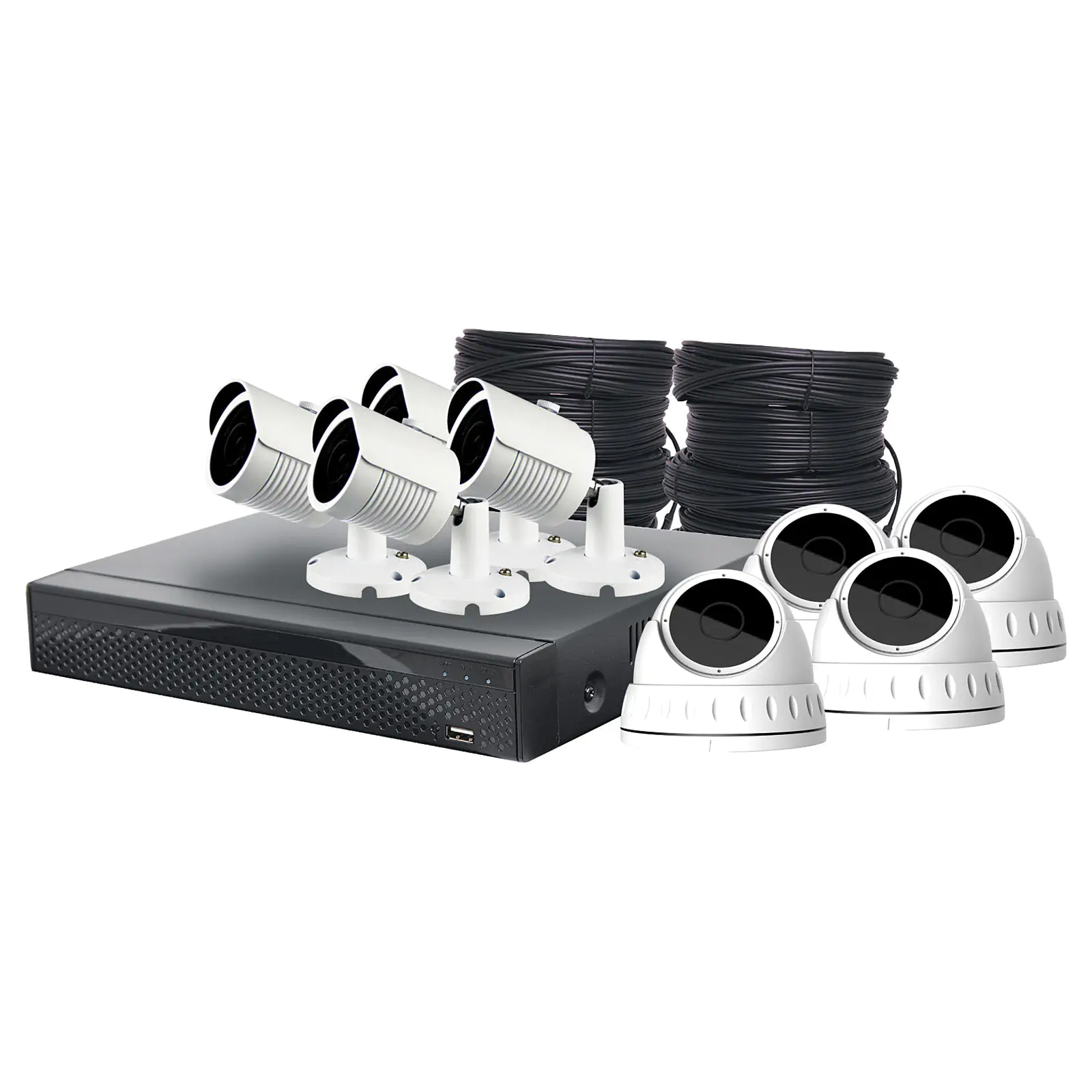

5MP Surveillance CCTV DVR +4 Dome/ +4 Bullet Camera Package

Name: 5MP Surveillance CCTV DVR +4 Dome/ +4 Bullet Camera Package
SKU: S9907D
Price: 662.73 AUD
Availability: InStock

SKU: S9907D

This package is a total home or small business solution as it contains 4 5MP bullet cameras and 4 5MP dome camera to suit a variety of needs and spaces. Cameras plus a surveillance DVR with 5MP recording and more.

Save $245.45 $662.73 ~~$908.18~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$662.73 $908.18
2+	$662.73 $862.73
3+	$662.73 $817.27

i h

Overview
Specifications
Details
Warranty
Downloads

Overview

Features:

Support AHD/CVI/TVI/IP/Analog Camera Input
Up to HD 5MP and IP 8MP Resolution Recording
Support HD Output, VGA and CVBS Video Output
Support Max. 4CH HD or 16CH IP Camera Input
Support 1 SATA up to 6TB Capacity
Includes cameras, digital video recorder, connection leads & power supplies.
Easily installs in just a few hours.
Ideal for home or office.
Suitable for DIY.
Just add a hard drive and plug it in!

Specifications

Dome Camera Specifications

Camera

Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps

Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor

DSP: NVP2475H

Image Resolution: 5MP

Effective Pixels: 5M:2592*1944 4M:2560*1440

TV System: PAL/NTSC

Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio: =50dB

Scanning System: Progressive Scan

Lens

Focus Length: 3.6mm (2.8mm/6mm Optional)

Focus Control: Fixed

Lens Type: Fixed

Pixels: 5M Pixels

Auto Iris Support: NO

Night Vision

Infrared LED: 14µ x 18PCS

Infrared Distance: 20M

IR Status: Under 10 Lux by CDS

IR Power On: CDS Auto Control

Camera Features

Day/Night: YES

OSD Menu Language: YES

White Balance: AUTO / MANUAL

Gain Control: AUTO

Noise Reduction: 2D/3D NR

Picture Adjustment: YES

WDR: YES

OSD Support: YES

UTC: YES

General

Housing: Metal, IP66

Bracket: NO

Dual Voltage: NO

IR Cut Filter: YES

Heater: NO

Operation Temperature: -10° ~ +50° RH95% Max

Storage Temperature: -20° ~ +60° RH95% Max

Power Source: DC12V±10%, 500mA

Dimensions: ¢94.5 x 76(H) mm

Weight: 450g

Bullet Camera Specifications

Camera

Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps

Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor

DSP: NVP2475H

Image Resolution: 5MP

Effective Pixels: 5M:2592*1944 4M:2560*1440

TV System: PAL/NTSC

Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio: =50dB

Scanning System: Progressive Scan

Lens

Focus Length: 3.6mm

Focus Control: Fixed

Lens Type: Fixed

Pixels: 5M Pixels

Auto Iris Support: NO

Night Vision

Infrared LED: 42µ x 2PCS

Infrared Distance: 30M

IR Status: Under 10 Lux by CDS

IR Power On: CDS Auto Control

Camera Features

Day/Night: YES

OSD Menu Language: YES

White Balance: AUTO / MANUAL

Gain Control: AUTO

Noise Reduction: 2D/3D NR

Picture Adjustment: YES

WDR: YES

OSD Support: YES

UTC: YES

General

Housing: Metal, IP66

Bracket: YES

Dual Voltage: NO

IR Cut Filter: YES

Heater: NO

Operation Temperature: -10° ~ +50° RH95% Max

Storage Temperature: -20° ~ +60° RH95% Max

Power Source: DC12V±10%, 500mA

Dimensions: 157(W) x 70(H) x 66(D)mm

Weight: 650g

DVR Specifications

System

Main Processor: HI3531A

Operating System: Embedded LINUX

Video

Input: Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

Analog+Network: 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth =200M)

Input: 8CH BNC

Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

Output: 1 HD Port,1 VGA, 1CVBS

Audio

Input: 4Channel, RCA

Two-way Audio: NO

Output: 1 Channel, RCA

Alarm

Sensor Input: NO

Output: NO

Motion Detection: 8 Channel(max 32 Channel in pure network mode)

Trigger Events: Recording, Alarm, Email, Screen tips, Buzzer

Email Alarm: Send Image to The Designated E-mail

PTZ

Interface: RS485

Protocol: Pelco-D, Pelco-P

Baud Rate: 110~921600

Address: 0~255

Display

VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

HD Output: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel

Privacy Masking: 3 Rectangular Zones (Each camera)

OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression: H.264

Audio Compression: G711u

Resolution: 5MP(2592×1944), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280× 720), 960H(P:960×576/N:960×480)

Video Quality: worst/worse/ordinary/well/best

Record Rate:

Analog:PAL: 5MP(2592×1944 8*12fps), 5MP_HALF(1296×1944 8*20fps), 4MP(2560×1440 8*15fps), 4MP_HALF(1280×1440 8*25fps), 3MP(2048×1536 8*18fps), 1080P(1920x1080 8*25fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps)

Pure IP:PAL: 4k@18×25fps, 5MP@20×25fps, 4MP@28x25fps, 3MP@28×25fps, 1080P@32×25fps, 960P@32×25fps, 720P@32×25fps, D1@32×25fps

Record Mode: Manual/ Timer/ Motion/ Detection

Playback & Backup

Decode Capability: 4CH 1080P@30fps

Sync Playback: Pure Analog: 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps, 2CH HD+14CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH HD+12CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps,4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 6CH HD+10CH IPC: 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Pure IPC: 2CH 4K@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

Remote Playback: 4 Channel / 1 Channel

Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

Playback Function: Play, Pause, Stop, Fast play, Rewind

Smart Phone Playback: 4 Channel

Backup Mode: USB Device/Network

Network

Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface

Network Functions: HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP

DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

Web Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software: Support Windows 7/ Windows 8/Windows 10

Extra Stream: CIF/D1(1~25fps)

Smart Phone: iPhone, iPad, Android, Android pad

Hard Disk Driver

Interface Type: 1 SATA Interface

Capacity: 2.5"/3.5" SATA, Up to 6TB

General

Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

UTC Control: YES

USB Interface: 2 USB 2.0 Interfaces

Power consumption: DC 12V =10W (Without Hard Disk)

Working Environment: -10~55°C/10~90%

Dimension: (W×D×H)260*215*43(mm)

Weight: 2.0kg (Without HDD)

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
