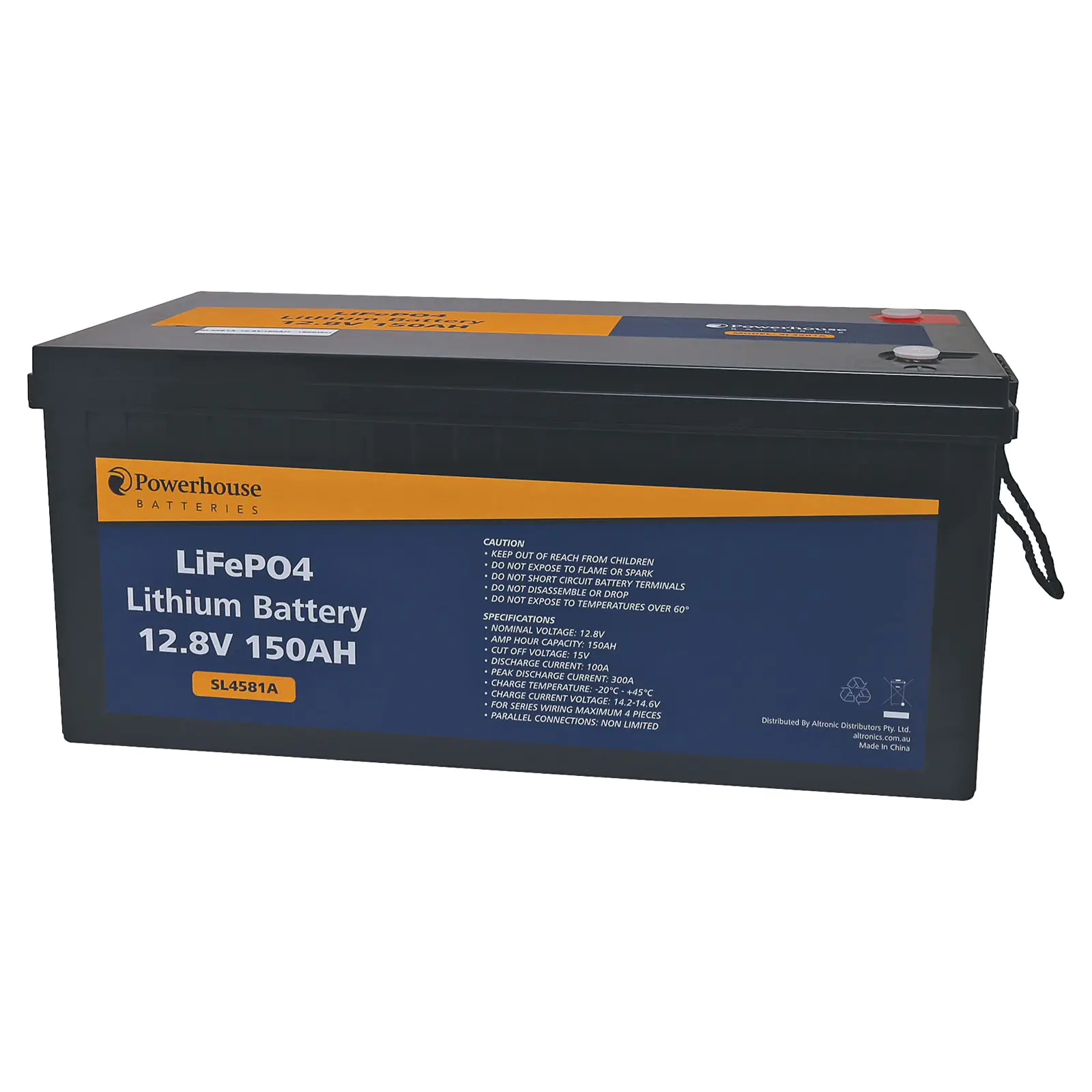

12V 150Ah Lithium LiFePO4 Battery M8

This 12V 150Ah LiFePO4 replacement battery is compatible in size with traditional 150Ah SLA batteries, but with all the benefits of cutting edge lithium technology. LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provide more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts. The latest generation in maintenance free batteries is here!

Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off. Can be wired in series and/or parallel. Regardless of your wiring configuration it is technically best to individually charge each battery to 100% capacity using the same charger before connecting them. This ensures all batteries are at the same terminal voltage and will charge/discharge evenly.

Factory supplied at 30% charge for safety compliance. Must be charged fully before use.

Excessive temperatures over 65ºC can effect the ABS housing. Need to be well ventilated in warm conditions. Not for use in engine bays.

IMPORTANT NOTE: A fixed installation of this battery in a recreational vehicle such as a caravan, camper or 4WD must adhere to Australian Standard AS/NZS 3001:2. We recommend all customers familiarise themselves with the standards requirements before using these batteries in fixed installations of this type. A professional installer should be consulted when a fixed battery installation is required in a recreational vehicle.

Specifications:

ELECTRICAL

Nominal Voltage: 12.8V

Amp Hour Capacity: 150AH

Reserve Capacity @ 30A: 300 min

Energy Density: 1920Wh

Resistance - Milliohms: <40

Efficiency - round trip: >99.5%

Self Discharge per Month: <3%

Max 4 - series connections:12-48V

Parallel connections: No Limit

MECHANICAL:

Dimensions: 521X237X217mm

Weight: 20KGS

Terminal Type: F12 (M8)

Terminal Torque: 12.4NM

Case Material: ABS

Case IP Rating: IP56

Cell Type - Chemistry: LiFePO4

Cell Type: Prismatic

TEMPERATURE:

Discharge Temperature: -20 to 60°C

Charge Temperature: -20 to 45°C

Storage Temperature: -5 to 35°C

BMS High Temp Cut Off: 80°C

BMS Reconnect Temp: 50°C

IP: 65

CHARGE:

Recommend Charge current: 50

Max Charge current: 100A

Charge current (0 to -10C): <50A

Charge currrent (-20 to -10C): <40A

Recommend Charge current voltage: 14.2 - 14.6V

BMS Charge voltage cut off: 15.0V

BMS Reconnect voltage: 14.4V

Balancing voltage: 13.6

DISCHARGE:

Max Cont Discharge current: 100A

Peak Discharge Current 3C: 300A

BMS Current Cut Off: >100.5A 10S

BMS Current Cut Off: >120A 3S

BMS Current Cut Off: >150A 1S

BMS Voltage Cut Off: 10V

BMS Reconnect Voltage: 12V
