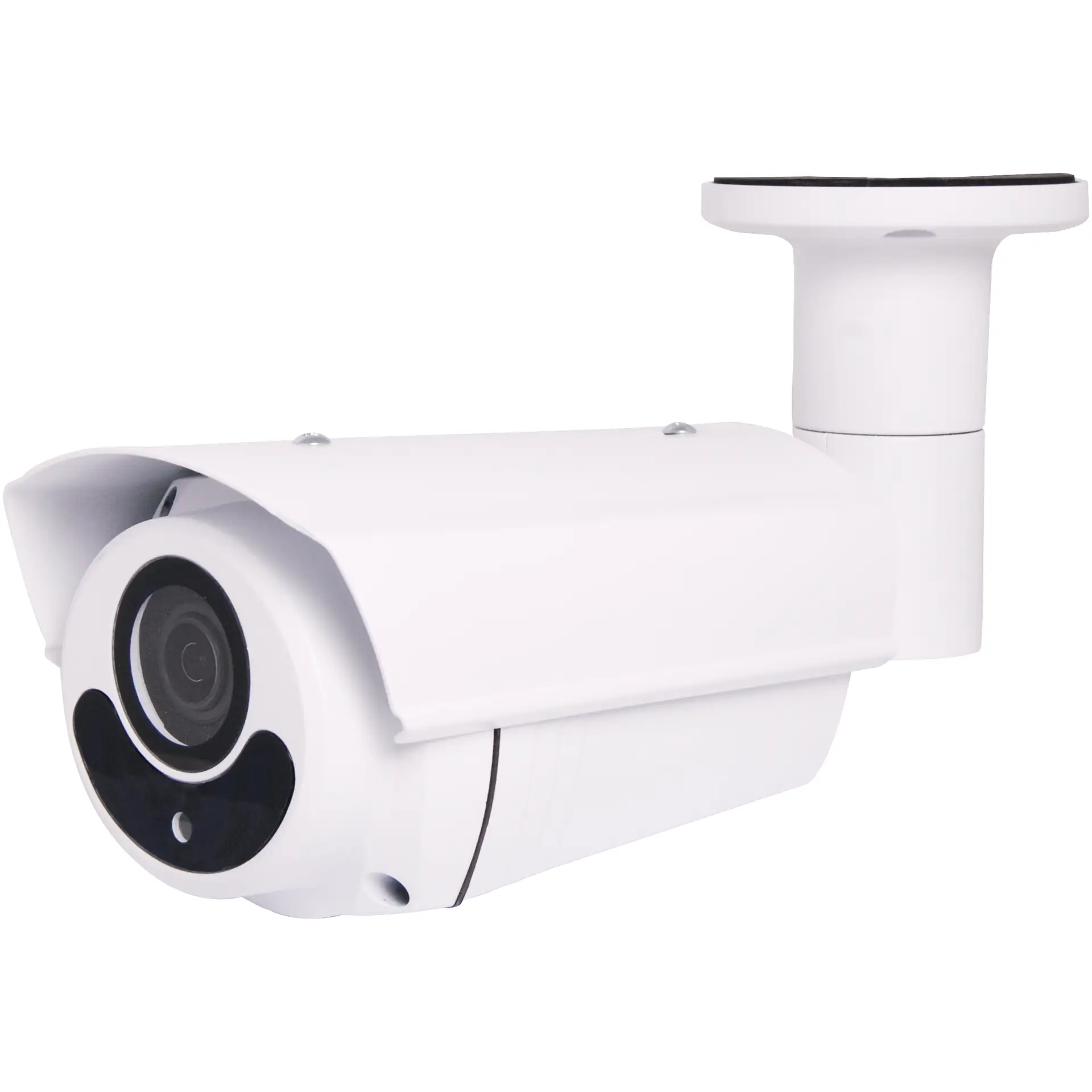

1080P TVI Motorized Zoom Vandal Resistant IR Bullet Camera

SKU: SM9137F
Surface mount bullet camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution CMOS sensor produces clear crisp video signal.
Save $40.00 $150.00 $190.00

All Prices Shown are (ex GST)
Bulk Pricing
ea
$150.00 $190.00
3+
$150.00 $177.27
6+
$150.00 $168.18
i h

Overview

Surface mount bullet camera housed in vandal resistant IP66 aluminium housing with infra red illumination for night time viewing. High resolution CMOS sensor produces clear crisp video signal. Lens has an adjustable focal length (2.8-8.0mm). Specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, carparks etc. Operating temperature down to -25°C for cool room use.

This camera is able to be set up via either mobile phone using the ''Eagle Eyes'' app which is available to download from our AV-Tech DVRs or using an existing AV-Tech DVR. This is ideal for installers as they can save time by not having to set the up the camera at the point of installation. It can simply be carried out remotely for each camera at the DVR.



Features:

  • 1/2.7” CMOS sensor with 1080P video output
  • Low light sensitivity of 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)
  • EZUM series to support focus and camera parameters adjustment remotely from AVTECH HD CCTV DVR
  • Manual adjustment of the IR LED brightness
  • Day and night 24-hour surveillance with IR effective distance up to 50 meters
  • IP66 for weather-proof application
  • Camera parameters adjustable when used with AVTECH HD CCTV DVR





Specifications:

Pick-up Element: 1/ 2.7” CMOS image sensor

Number of Pixels: 1930(H) x 1088(V)

Video Frame Rate: 1080P@30fps / 1080P@25fps

Min. Illumination: 0.1 Lux / F1.6(Wide)~F2.8(Tele), 0 Lux (IR LED ON)

S/N Ratio: More than 48dB (AGC OFF)

Shutter Speed: 1/30 (1/25) sec ~ 1/720000 (1/600000) sec

Lens motorized: f2.8 ~ f8.0mm / F1.6 ~ 2.8

Lens Angle:

- Wide: 104° (Horizontal) / 56° (Vertical) / 126° (Diagonal)

- Tele: 57° (Horizontal) / 32° (Vertical) / 65° (Diagonal)

IR LED: 4 units

IR Effective Distance: Up to 50 meters

IR Shift: YES

Day & Night Mode: YES

IRIS Mode: AES

White Balance: AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K

AGC: Adjustable

Sharpness: Adjustable

Flickerless: 50HZ / 60HZ / OFF

BLC: Adjustable

IR Brightness Adjustment: YES

IP Rating: IP66

Operating Temperature: -25℃ ~ 50℃

Operating Humidity: 90% or less relative humidity

Power Source: (±10%) DC12V / 1A

Current Consumption: (±10%) 220mA (IR LED OFF) / 900mA (IR LED ON)

Net Weight (kg): 0.75

Details

Products specifications

Warranty 12 Months
CCTV & Security
Type Bullet Cameras
Output Analog Cameras
Resolution 1080p AHD, 960H
