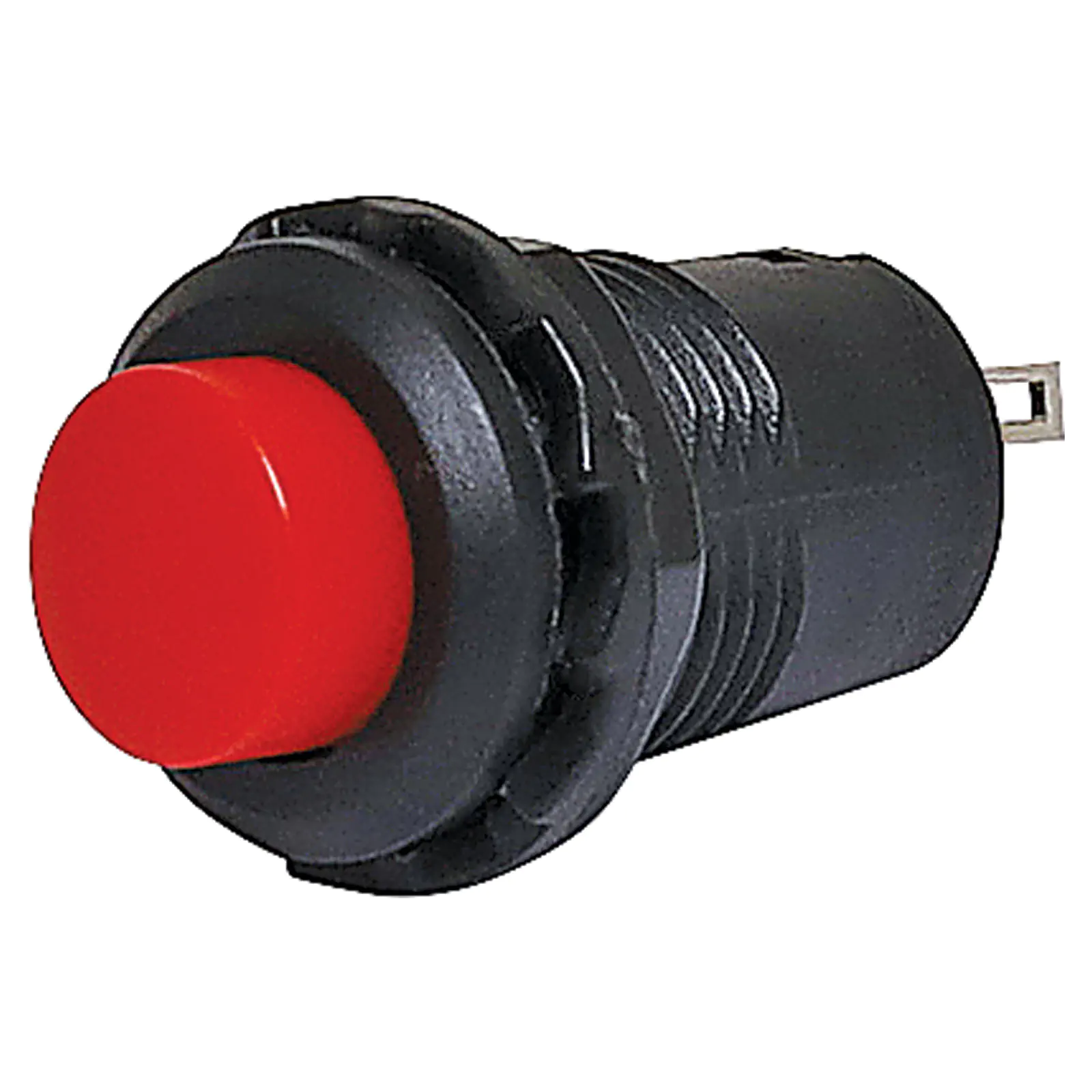

SPST Alternate Red Solder Tail Pushbutton Switch

SKU: SR1082A
Low profile red push button switch with solder tail connection. Ideal for panel mounting into projects or rack equipment etc.
$3.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.41
10+ $3.09
25+ $2.73
i h

Overview

Low profile red push button switch with solder tail connection. Ideal for panel mounting into projects or rack equipment etc. Alternate action, single pole type.





Specifications:



Colour: Red

Rated Voltage: 125V AC @ 3A

Rated Current: 250V AC @ 1.5A

Insulation Resistance: 500V DC 100MΩ (min)

Contact Resistance: 50MΩ max

Dielectric Strength: 1000V DC, 1 minute

Operating Temperature: -20°C to +85°C

Electrical Life: 10,000 cycles (min)

Mechanical Life: 50,000 cycles (min)

Function: Alternate action

Details

Products specifications

Warranty 12 Months
Switches
Contacts SPST
Type Panel Mount Switches
Connection Solder Tail
Action Alternate
