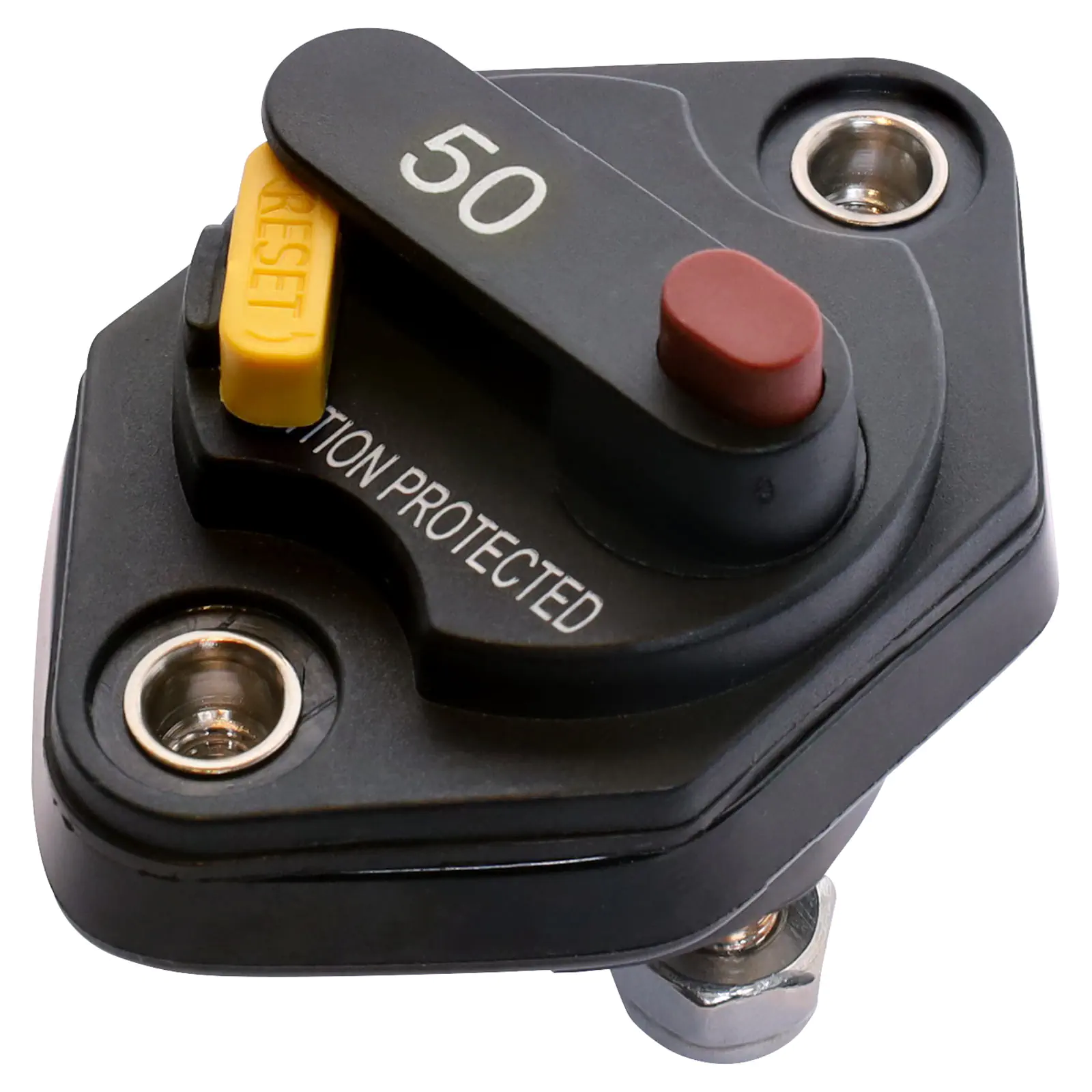

50A Compact Panel Mount IP66 Waterproof Circuit Breaker

SKU: SS5885
This 50A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It's compact profile design takes up minimal space on your switch panel and can be easily reset using the lever switch. It features a IP66 weatherproof casing with M6 terminal bolts.
$31.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.82
4+ $28.64
10+ $25.45
i h

Overview

This 50A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It's compact profile design takes up minimal space on your switch panel and can be easily reset using the lever switch.  It features a IP66 weatherproof casing with M6 terminal bolts for connection to power cabling. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J553, ABYC E-11 & SAE J1171 (ignition protected).





Specifications:



Max. Voltage: 32V DC

Rating: 50A DC

Interrupt Rating: 3000A @ 32V DC (as per SAE & ABYC E-11)

IP Rating: IP66

Operating Temperature: -40°C to 85°C

Testing: SAE J553, ABYC E-11 & SAE J1171

Material: UL94V-0

External Dimensions: 55H x 37W x 33mm

Details

Products specifications

Warranty 12 Months
Switches
Type Waterproof Circuit Breakers
