An electronic temperature controlled soldering station, designed to meet the needs of production environments. The increased heating power over the Micron 60W station provides increased temperature stability during extended periods of soldering.

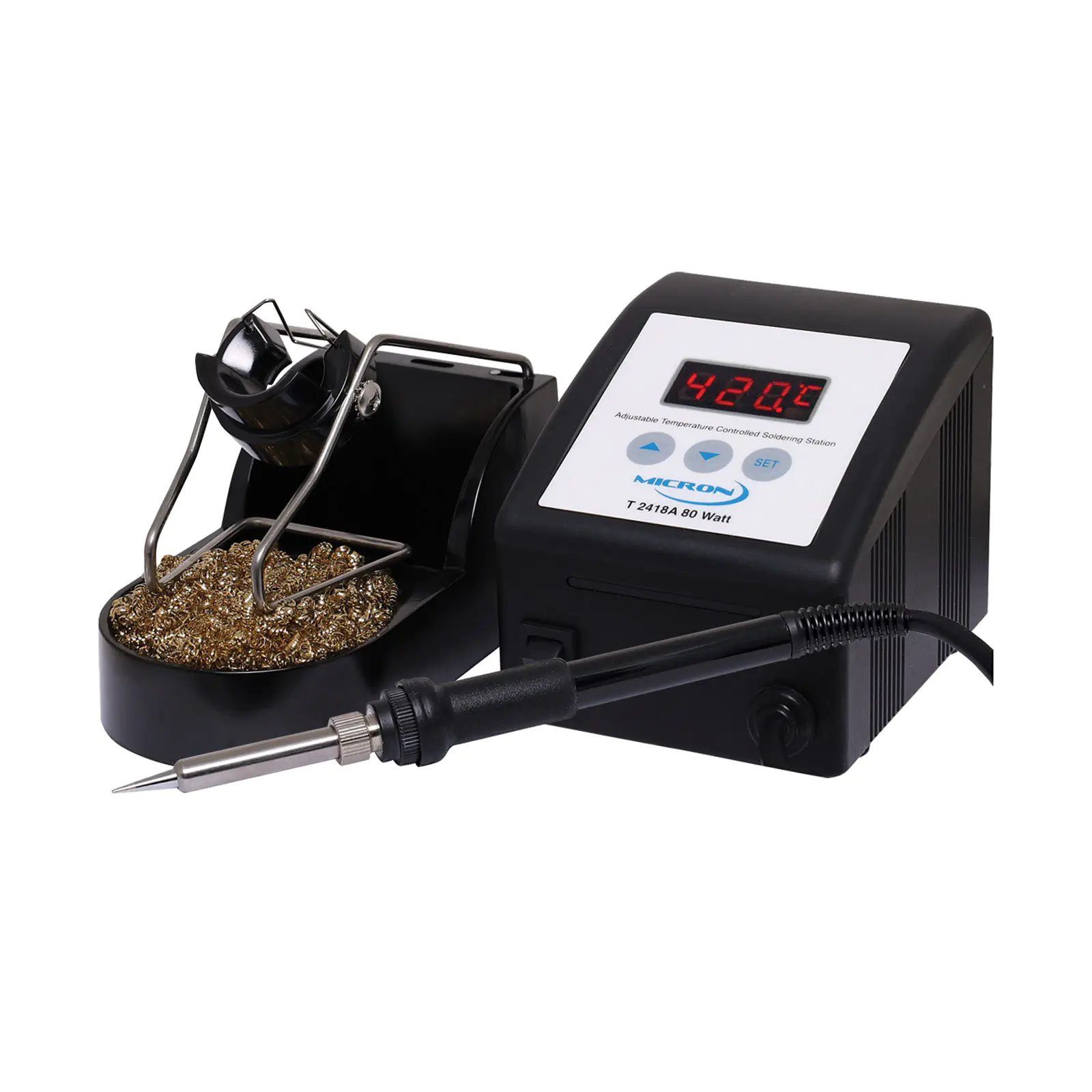

Soldering Iron Station 80W

Name: Soldering Iron Station 80W
SKU: T2418A
Price: 180.91 AUD
Availability: InStock

by: Micron

SKU: T2418A

A 240V electronic temperature controlled lead free soldering iron station, designed to meet the needs of production environments. The increased heating power over the Micron 60W station provides increased temperature stability during extended periods of soldering.

$180.91

All Prices Shown are (ex GST)

Bulk Pricing

ea	$180.91
2+	$172.73
5+	$162.73

i h

Overview
Details
Warranty
Downloads

Overview

Perfect choice for professionals, manufacturing & production facilities.
An electronic temperature controlled soldering station, designed to meet the needs of production environments. The increased heating power over the Micron 60W station provides increased temperature stability during extended periods of soldering. It features a slender ‘pencil design’ iron handle with comfortable rubberised grip, connected with a burn-resistant rubber lead. Featuring key pad temperature control from 200°C to 480°C, this soldering station eliminates the need for changing tips to perform different soldering tasks. When set, the iron will maintain tip temperature to ±5°C. RoHS compliant.

Suitable for use with Mini-Wave tips: These fine concave tips allow hand flow soldering of surface mount devices (SMD) such as chip caps, resistors, LEDs, SOIC packages and PLCC chips.

Package Includes:

1 x Soldering Station
1 x Freestanding iron holder
1 x Tip cleaner
1 x 0.8mm tip

Specifications:

Input: 220 - 240V ac

Heater: 220V ac ceramic element

Heater Insulation: <100MΩ

Nominal Power: 80W

Temperature Range: 150°C to 480°C

Temperature Correction Range: +99° to -99°C

Heat Up Time: <45sec

Leakage Voltage: <0.4mV

Weight: 1.7kg

Tip to Ground Resistance: <0.1Ω

Features:

Designed for RoHS lead free soldering
LED display
Simple key operation
Burn proof silicone rubber hand piece lead
Free standing iron holder with tip cleaner
Temperature adjustable
Temperature ‘offset’ for fine calibration
Temperature lockout
Suitable for ROHS compliant soldering
ESD safe and spike free circuitry
Grounding socket
High insulation ceramic heating element for rapid heat-up and instant recovery slimline & lightweight hand piece.

Details

Products specifications

Warranty	2 Years
Tools
Type	Soldering Iron Stations
