A high performance 60W soldering iron combined with a fume extractor, designed to keep your work area free from fumes and smoke. The all metal construction will ensure this professional station will last for years. A wide temperature range of 250&deg to 450&degC makes it suitable for a wide range of soldering tasks

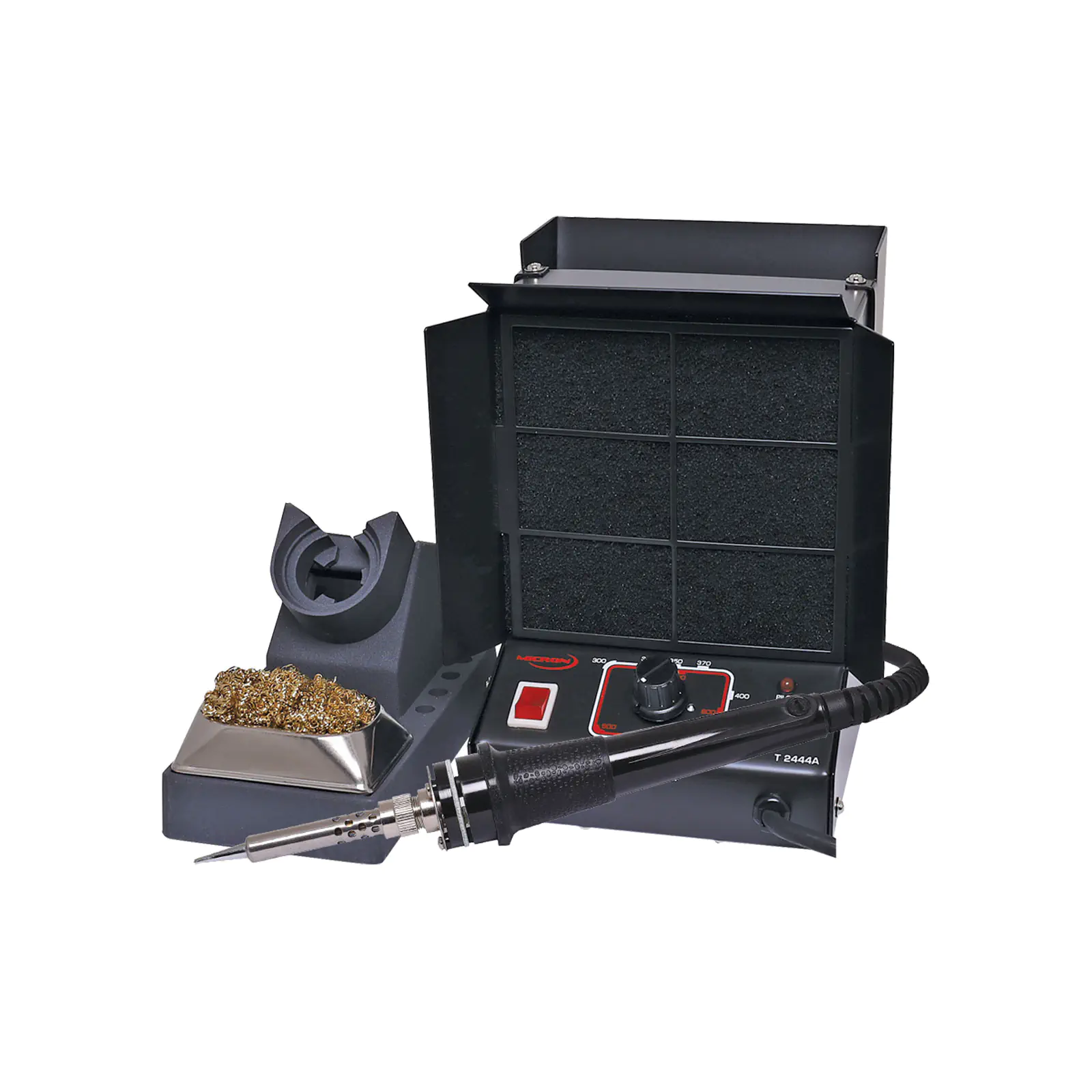

60W Soldering Iron Station With Fume Extractor

Name: 60W Soldering Iron Station With Fume Extractor
SKU: T2444A
Price: 262.73 AUD
Availability: InStock

by: Micron

SKU: T2444A

A high performance 60W 240V soldering iron combined with a fume extractor, designed to keep your work area free from fumes and smoke. The all metal construction will ensure this professional station will last for years. A wide temperature range of 250°C to 450°C makes it suitable for a wide range of soldering tasks including lead free.

$262.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$262.73
2+	$240.91
5+	$213.64

i h

Overview
Details
Warranty
Downloads

Overview

A high performance 60W soldering iron combined with a fume extractor, designed to keep your work area free from fumes and smoke. The all metal construction will ensure this professional station will last for years and the wide temperature range of 250° to 450°C makes it suitable for a wide range of soldering tasks. It comes supplied with a 1.6mm tip (T2413) and soldering iron stand.

Box Includes:

1 x Fume extraction soldering station.
3 x Active carbon filters.
1 x Filter retaining clip.
1 x 1.6mm tip.
1 x Soldering iron handle stand with dry tip cleaner.
1 x User manual.

Specifications:

Input Power: 220-240VAC

Solder Station Wattage: 60W

Temperature Range: 250 - 450°C

Tip Leakage: < 2mV

Tip To Ground Resistance: < 0.1Ω

Stability @ Idle: ±5°C

Fan Wattage: 20W

Maximum Air Volume: 95/115 CFM

Outer Dimensions: 162W X 200H X 120D mm

Weight: 1.5kg

Features:

High insulation ceramic heating element for rapid heat up and instant recovery
Burn proof iron lead
Heater insulation of over 100MΩ
Zero voltage circuit ensures no high voltage spikes or magnetic fields are present at the tip to damage sensitive components
Temperature adjustable
Powerful ball bearing fan
Sturdy metal construction
Improves work place comfort
Supplied with iron stand and dry tip cleaner
ESD safe

Details

Products specifications

Warranty	2 Years
Tools
Type	Soldering Iron Stations
