A high power 100W benchtop electric soldering station for professionals and regular solderers! Touchscreen temperature control with presets. Supplied with fine 0.8mm round tip for soldering small pad sizes.

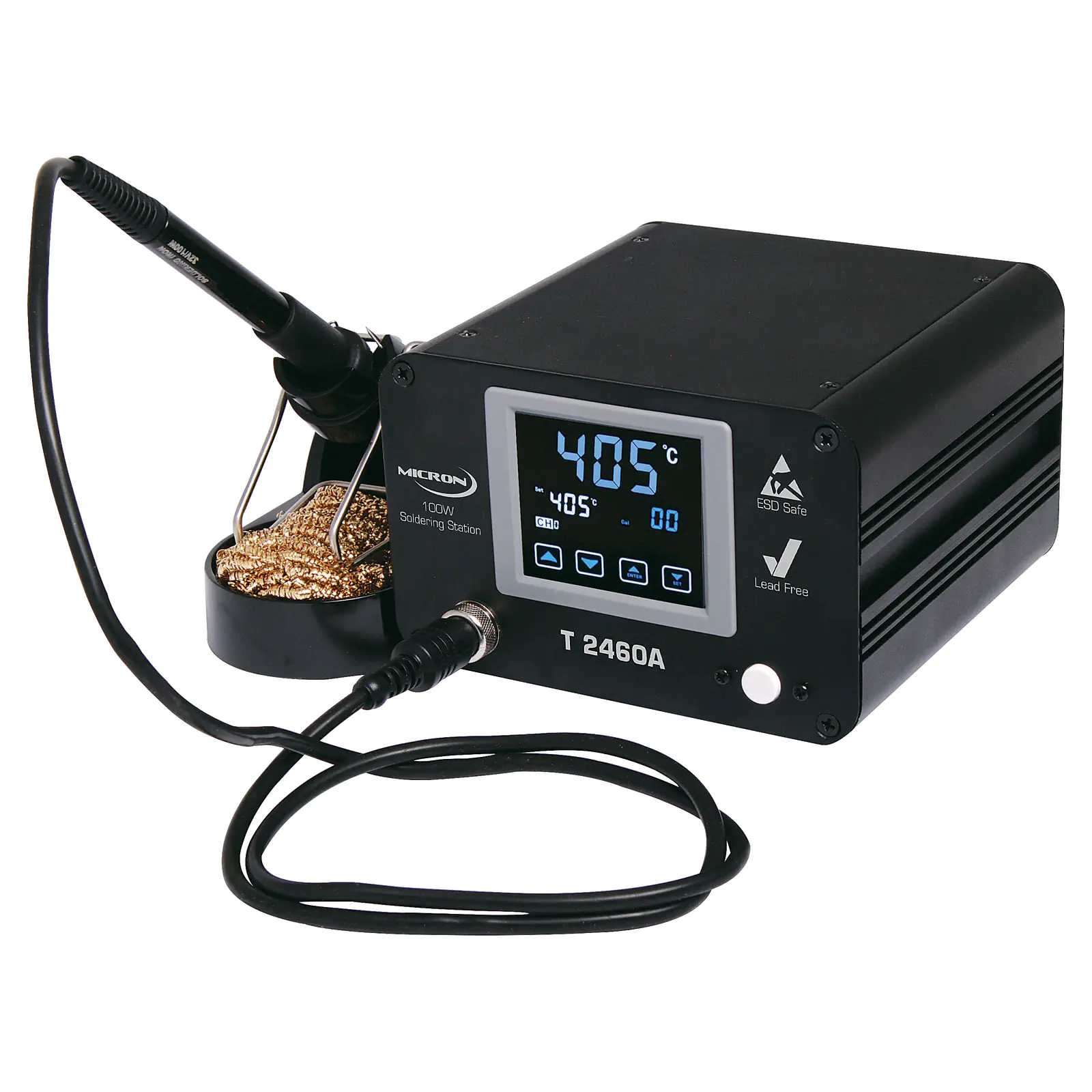

Soldering Iron Station 100W With Touchscreen

Name: Soldering Iron Station 100W With Touchscreen
SKU: T2460A
Price: 399.09 AUD
Availability: InStock

by: Micron

SKU: T2460A

A high power 100W benchtop 240V lead free soldering iron station for professionals and regular solderers! Touchscreen temperature control with presets. Supplied with fine 0.8mm round tip for soldering small pad sizes.

$399.09

All Prices Shown are (ex GST)

Bulk Pricing

ea	$399.09
2+	$362.73
4+	$326.36

i h

Overview
Details
Warranty
Downloads

Overview

The high power T2460A electronically temperature controlled soldering station with touchscreen incorporates a special intelligent chip microcomputer control design. It has been developed to meet the present and future lead-free soldering needs of the electronic production industry and suitable for work on SMD electronics. The ergonomic handle with a short distance between heating element and tip allows very fast heat up time and quick heat dispersion.

The sensor and heat transfer technology employed ensure precise temperature regulation that is essential for making consistent, reliable soldering connections. The temperature is maintained within +/-3°. The handle is fitted with a burn resistant rubber lead. The T2460A enables the user to alter tip temperature from 100 to 500°C without changing tips or heating elements.

The LCD touchscreen provides instant readout of temperature and allows quick selection of settings. The many features of the T2460A make it the ideal tool for service and repair technicians as well as production line soldering operations. The “Zero Voltage” electronic switching design also protects voltage and current sensitive components (CMOS devices. etc.) against damaging current and transient voltage spikes/ The power unit is isolated from the AC line by a transformer and allows only 32V AC to drive the heating element.

Package Includes:
1 x Soldering station
1 x Soldering iron handle
1 x Iron stand
1 x Dry tip cleaner
1 x 1mm tip
1 x Mains connection lead

Specifications:

Input: 220 - 240 VAC ~ 50 Hz

Output: 32 VAC / 100 W

Fuse (Fast type): 1A

Temperature Range: 100°C - 500°C

Temperature Correction Range: +99°~ -99°C

Default Set: 200°C

Temperature Correction Value: “00”

Soldering Iron: 306 K

Dimension: 150 x 145 x 102 mm (W x H x D)

Weight: 2.5 kg

Features:

Suitable for lead free soldering applications
Variable temperature control via LCD touch screen
Zero switching circuitry for spike suppression
High idle stability
Fast heat recovery
Interchangeable handle
Three channels for stored temperature presets
