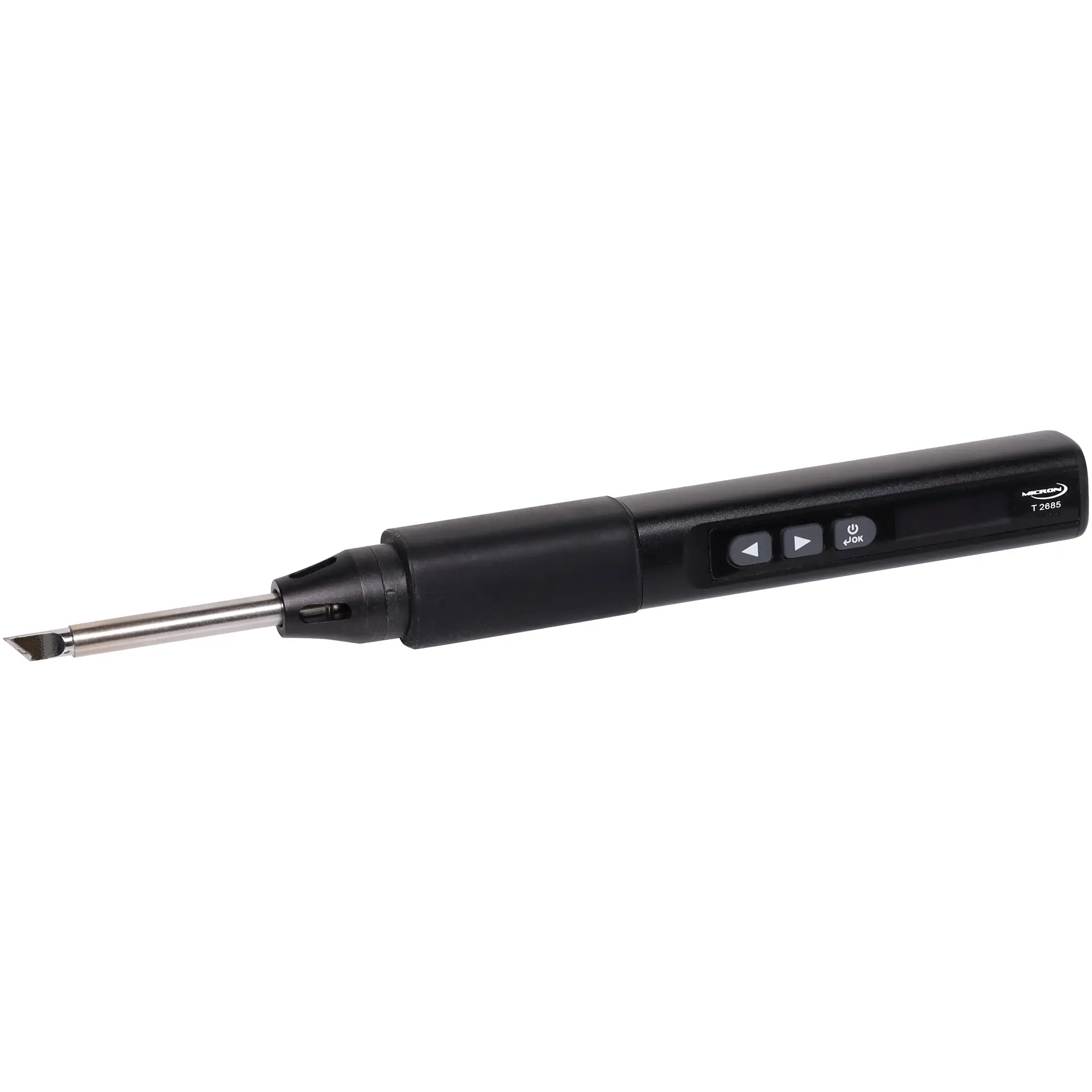

USB Soldering Iron With Mini Multimeter

by: Micron
SKU: T2685
A compact handheld USB powered pencil soldering iron and multimeter for odd jobs and repairs when you need it.
$80.91

All Prices Shown are (ex GST)

Bulk Pricing
ea $80.91
3+ $74.55
6+ $68.18
i h

Overview

Combines precision soldering with built-in multimeter functions in one sleek device. Powered by a universal USB power adapter or power bank, it delivers reliable performance. for the work bench or in the field.  The fast-heating soldering tip reaches melting temperature quickly, while the built-in multimeter functions let you measure voltage, resistance, and continuity. A clear OLED display ensures easy operation. The compact, metal-cased design with a universal soldering iron handle is both durable and portable. Ideal for on-the-go repairs, DIY projects, and field use.

 Sold separately is an accessory pack (T2686) to replace parts if required - see accessories listed below.





Kit Contents:

1x Body Handle

1x Soldering Tip

1x Multimeter tip

1x Multimeter Test Lead

1x USB C to USB C Charging Cable

1x Soldering Stand

1x Solder tip cleaner

1x User Manual





Features:

  • 2-in-1 Design: Combines soldering iron and multimeter in one tool
  • Portable Power Options: Runs on internal lithium battery or power bank/adapter
  • Quick Heating Tip: Reaches soldering temperature quickly
  • Multimeter Functions: Measures voltage, resistance, and continuity
  • Long Runtime: Extended working time in measurement mode
  • OLED Display: Clear and easy-to-read interface
  • Durable Build: Compact metal casing with universal handle
  • Switchable Parts: Interchangeable soldering tips and measurement probes





Specifications:

Display Screen: OLED High Definition

Measurement Range: Automatic

Test Rate: 3 times/second

Auto Power-off time: 5min, 10min, 15min, 20min, OFF

Soldering Iron automatic sleep mode: After 5 min of inactivity

Soldering iron temperature: 100°C to 450°C

Working Voltage: DC 5V to 20V Optional

Power: 75W Max

Supports fast charging protcol: PD/QC

Power Supply port: Type-C

Soldering Iron tip temperature calibration: Supported

Soldering iron tip model: T65

Low Battery Warning: Yes

Dimensions: 196 x 19 x 19mm

Weight: 80g

Battery Type: Lithium Polymer Rechargeable Battery 3.7V 800mAh

Material: Aluminium, ABS, Silicone

Operating Temperature: 0 to 40°C

Operating Humidity: <75%

Storage Temperature: -20 to 60°C

Storage Humidity: <80%
