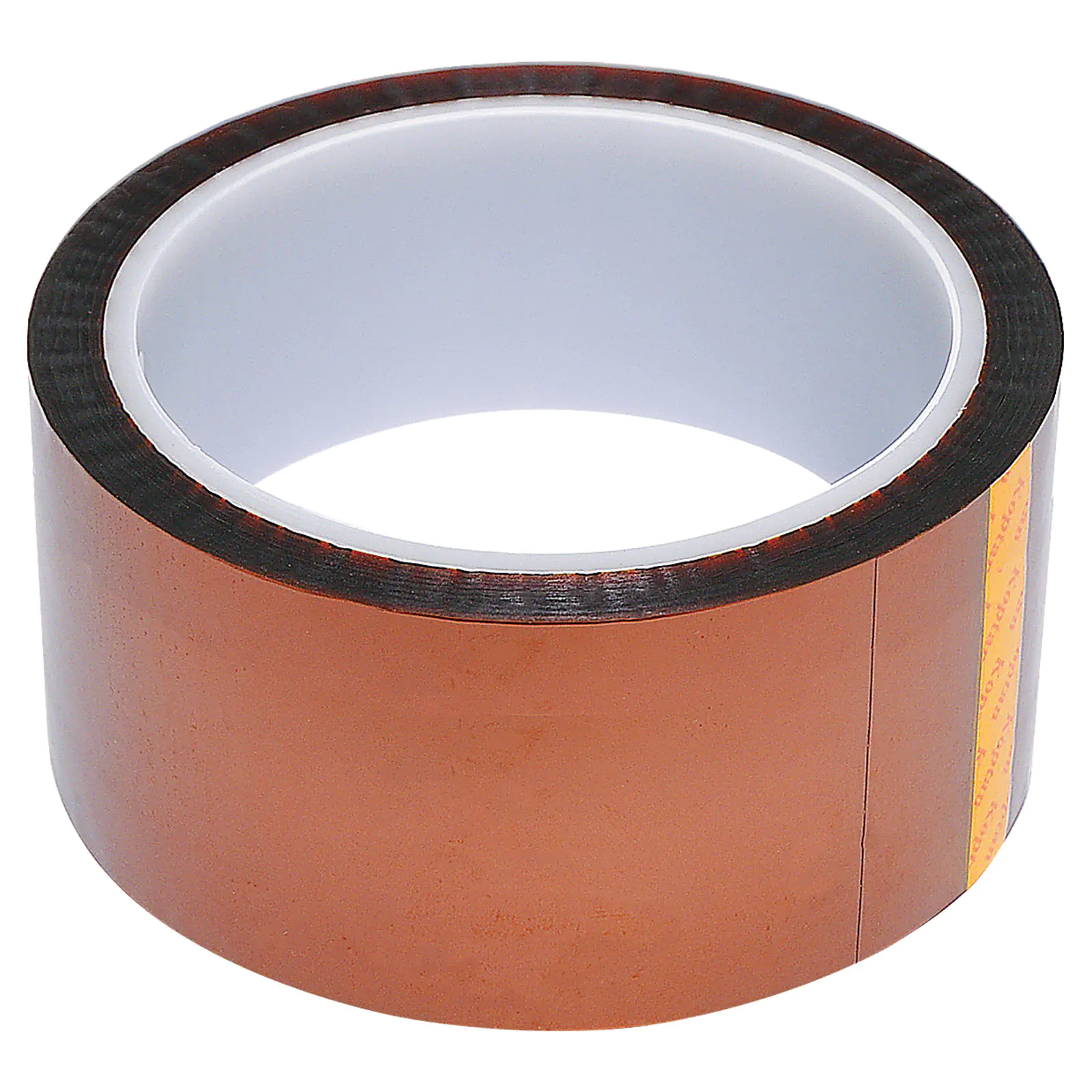

70mm x 33m High Temperature Polyimide Tape

SKU: T2978A
Offers high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue. Ideal for use in electrical insulation or masking circuit boards during wave soldering. 33m rolls.
$43.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $43.64
4+ $39.09
4+ $34.55
i h

Overview

These 33m rolls of 70mm wide high temperature polyimide tape offer high heat resistance and excellent dielectric strength. The tape removes cleanly without leaving a residue, making it ideal for use in electrical insulation or masking circuit boards during wave soldering.

Typical Applications:

Magnet wire and cable

Slot liner insulation

lnter-layer insulation in motors and transformers

Flexible PCBs

Solder masking

3D printing



Specifications:

Total Thickness: 60±2µm

Backing Thickness: 25µm

Initial Tack: 25±2

Adhesion to Steel: 6.5±1

Holding Power: =72hrs

Tensile Strength: 90

Elongation at Break: 70%

Max Temperature resistance: 260*C

Tape Structure: Silicon adhesive Pi film
