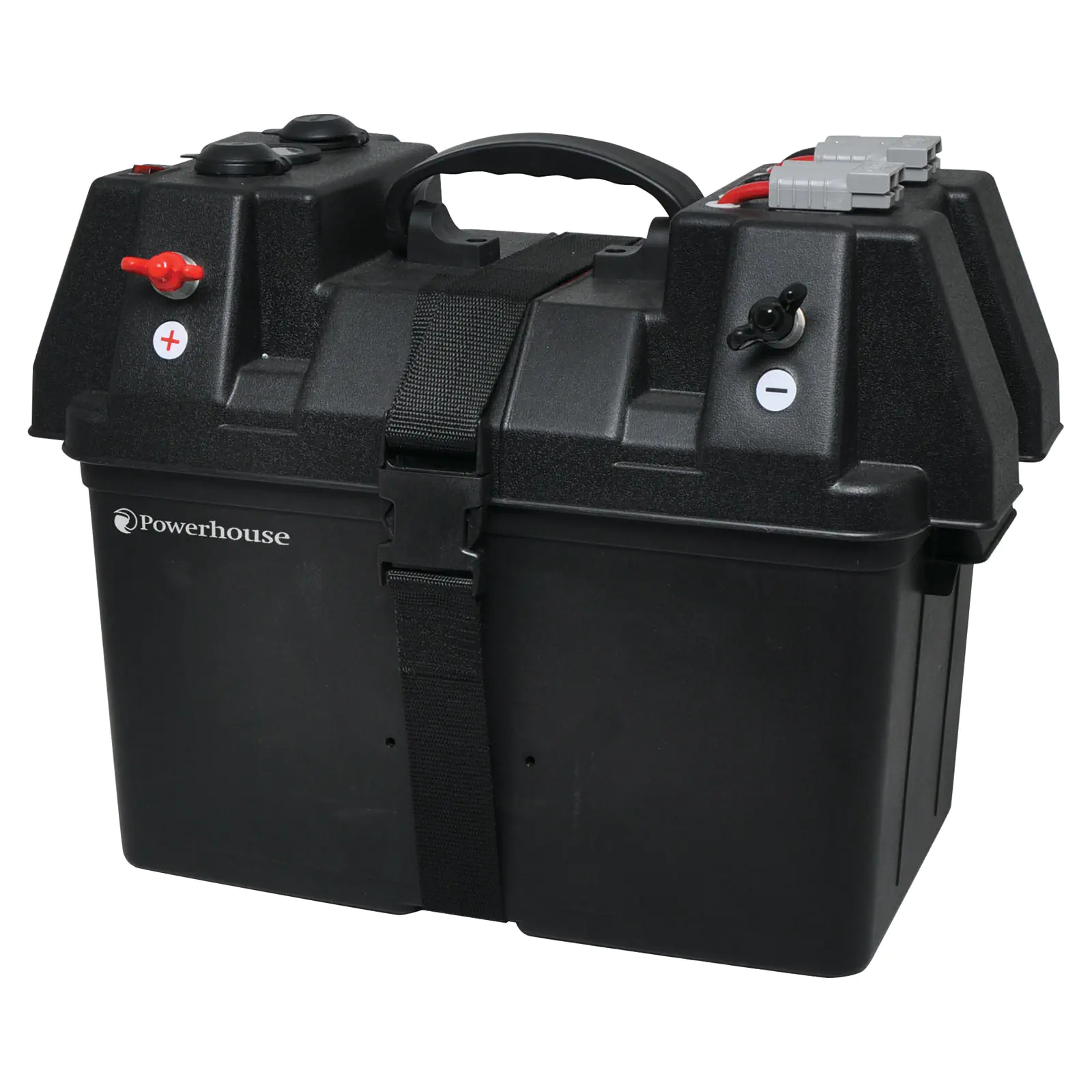

Battery Box 12V Portable Power

This 12V portable battery box features all the common connections that would typically be required for outdoor recreation power needs. It is capable of holding a deep cycle battery up to 100Ah (sold separately), which can be secured in place with the supplied webbing strap. Once fitted with a battery, the box can be used to power campsite equipment and connected to a solar panel for recharging. The box comes with carry handles so it’s easily portable and is fitted with a variety of connections for powering your portable appliances. These include two 50A Anderson plugs, insulated bolt terminals (fitted with wing nuts) and a 12V car accessory socket with over current protection in-built. For smaller devices such as phones and tablets two USB ports are provided with up to 2.4A charging current. It’s also fitted with a voltmeter to help monitor the battery level.

Not all battery boxes are the same!

Our Powerhouse unit has some key features that are not found on many models in the Australian market:

- 2 x 50A maxi blade fuses in circuit for extra protection.

- Lid with dual side clips for extra secure fit.

- High current output USB ports (2 x 2.4A) to charge high capacity devices such as tablets.

- Bar graph style LED volt meter.

Specifications:

Voltage: 12V

Voltage Range: 5V-30V

Weight: 2kg

Dual-Port USB: 5VDC 2.4A, 5VDC 2.4A

Power Socket: 12VDC, 20A

Anderson Connectors: 50A

Internal Dimensions: 338W x 220H x 206D mm

External Dimensions: 424W x 306H x 251D mm

Maximum Battery Size Dimensions: 330W x 224H x 185D mm

Features:

• Suits batteries up to 100Ah
• Dual 50A Anderson Plugs
• 12V Cigarette Socket
• 2 x 50A maxi blade fuses in circuit for extra protection.
• Lid with dual side clips for extra secure fit.
• Dual USB Ports with high current output (2 x 2.4A)
• Handy bar graph LED Voltmeter
• Circuit Breaker Switch
