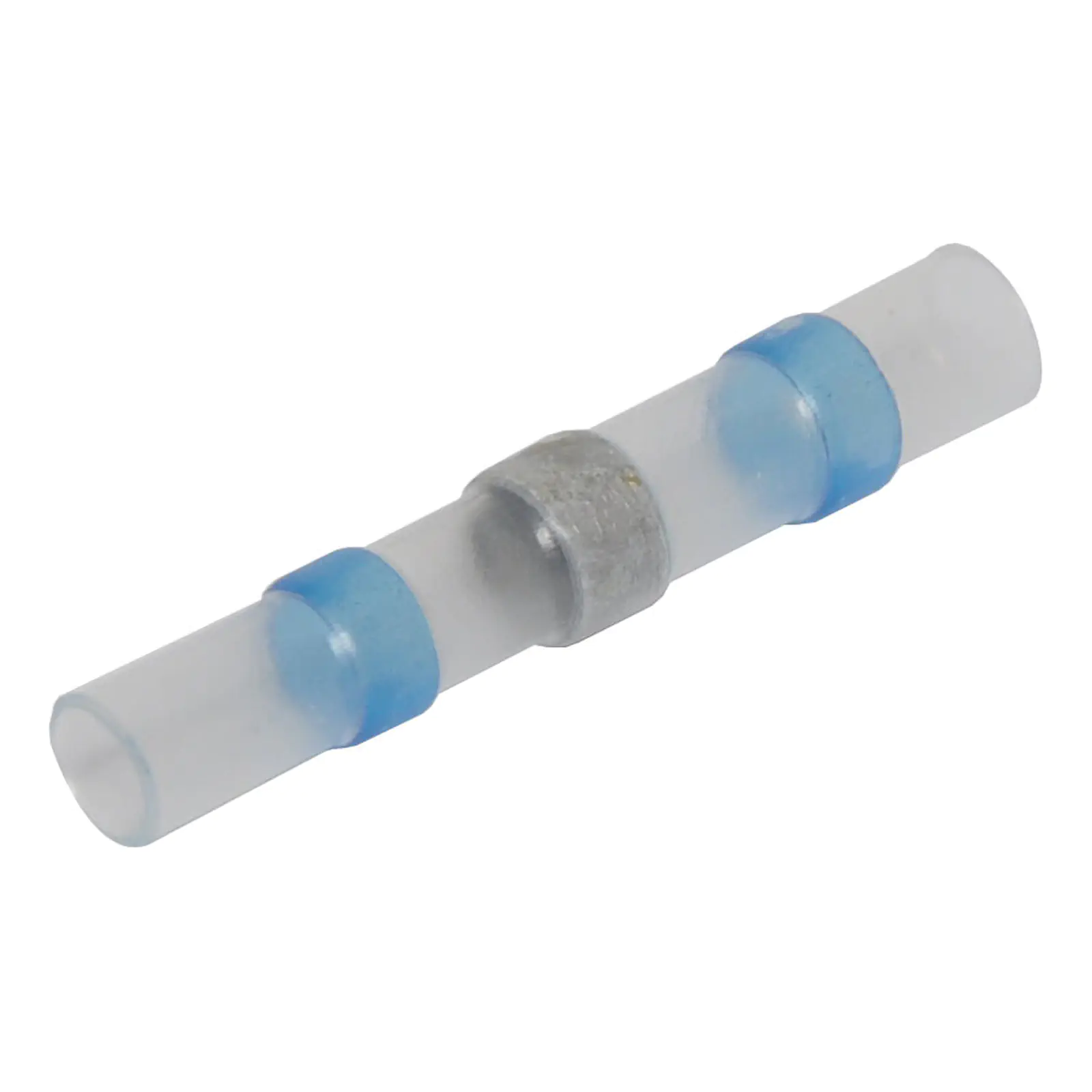

Solder Sleeve Heat Shrink Blue Tube Pk50

SKU: W0810
Solder sleeves are heatshrink tubing fitted with central ring of solder which melts when heat is applied, allowing you to join two cables with minimum fuss! Suits 16AWG and 14AWG cabling.
$39.95

All Prices Shown are (ex GST)
Bulk Pricing
ea $39.95
3+ $36.32
6+ $32.68
i h

Overview

This heat shrink tubing, fitted with central ring of solder which melts when heat is applied, allows you to join two cables with minimum fuss! Insulate and join your wiring at the same time. The shrink ratio is 2:1 and suits AWG wire size 16-14.

Best Method for Shrinking/Melting

For best results use a flameless heat gun capable of 450°C or more (or wave a blow torch/lighter over the tubing). Heat will need to be applied long enough to allow the solder to liquify and flow inside whilst the outer tubing shrinks over the join. It's important to get even heat across the join, so be sure to rotate the join over the heat source, focusing mainly on the join itself and working outward to shrink the tubing around the cabling itself.



Specifications:



Dielectric Voltage Withstand: 2.0kV

Voltage Rating: 600V

Voltage Drop: Less than 2.0mV

Copper Corrosion: Non-corrosive

Length: 40mm

Inner Diameter: 4.5mm



Features:

  • Shrinkage 2:1
  • Contains glue that has a waterproof function
  • Hot melt adhesive label (shows size)
  • Designed for easy operation
  • Working temperature: - 55°C~125°C
  • Fully contraction temperature: 130°C
  • Solder began to melt temperature: 125°C
  • Solder completely melt temperature: 150°C








Details

Products specifications

Warranty 12 Months
Cable
Type Solder Splice Sleeves
