This heatshrink kit contains a variety of solder sleeves to suit different AWG sizes.

Solder Sleeve Heat Shrink Kit 50pcs

Name: Solder Sleeve Heat Shrink Kit 50pcs
SKU: W0816
Price: 32.68 AUD
Availability: InStock

SKU: W0816

This heatshrink kit contains a variety of solder sleeves to suit different AWG sizes.

$32.68

All Prices Shown are (ex GST)

Bulk Pricing

ea	$32.68
3+	$29.55
6+	$26.32

i h

Overview
Details
Warranty

Overview

This heat shrink kit contains a variety of solder sleeves to suit different AWG sizes with a shrink rating of 2:1. The heat shrink tubing is fitted with a central ring of solder which melts when heat is applied, allowing you to join two cables with minimum fuss! Insulate and join your wiring at the same time.

Best Method for Shrinking/Melting

For best results use a flameless heat gun capable of 450°C or more (or wave a blow torch/lighter over the tubing). Heat will need to be applied long enough to allow the solder to liquify and flow inside whilst the outer tubing shrinks over the join. It's important to get even heat across the join, so be sure to rotate the join over the heat source, focusing mainly on the join itself and working outward to shrink the tubing around the cabling itself.

Specifications:

Shrink Ratio: 2:1

Working Temperature: -55°C to +125°C

Fully Contraction Temperature: 130°C

Solder began to melt temperature: 125°C

Solder completely melt temperature: 150°C

Features:

Dust proof
Contains glue that has a waterproof function
Hot melt adhesive label (shows size)
Designed for easy operation

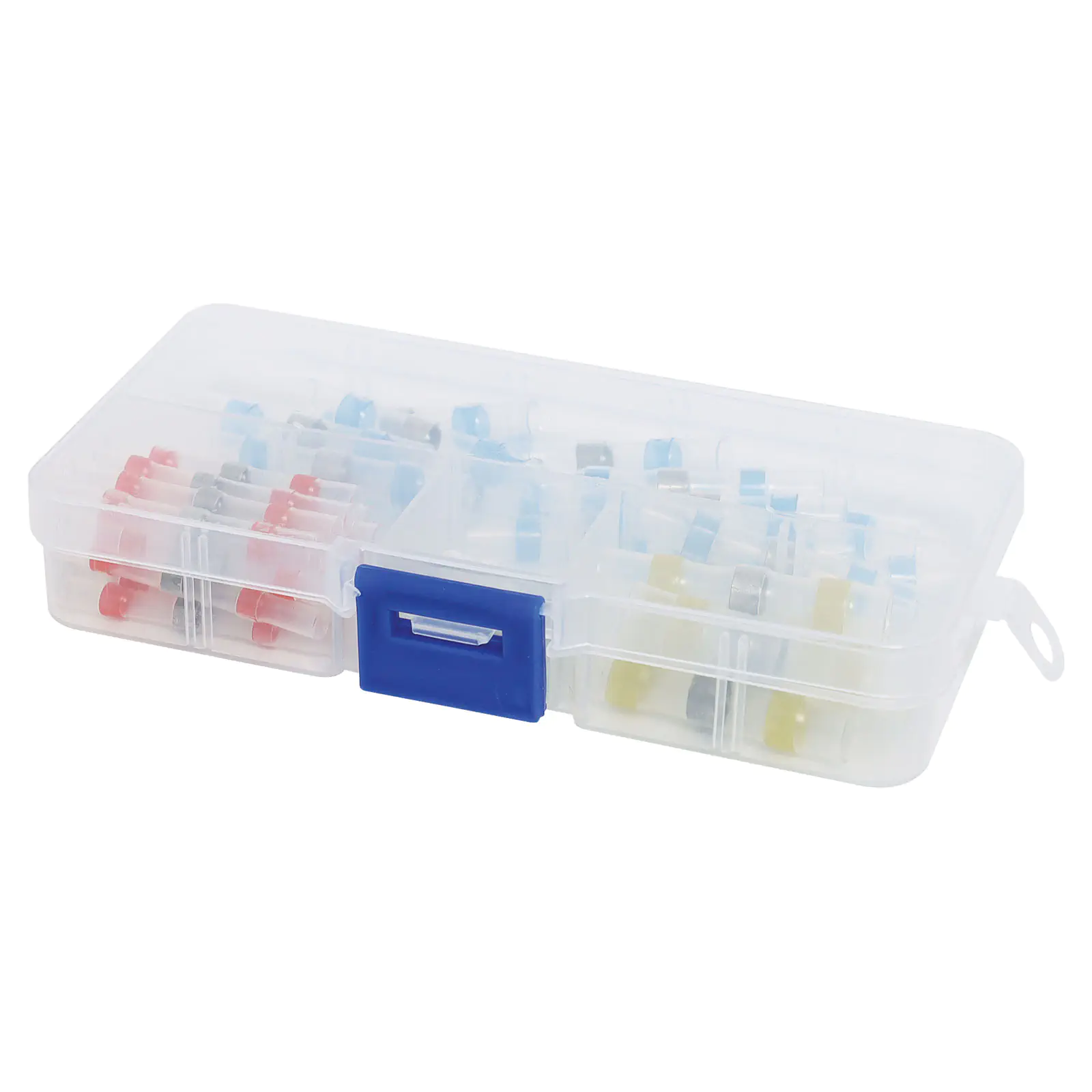

Kit Contents:

10 x White Sleeves to suit 26-24 AWG
20 x Red Sleeves to suit 22-18 AWG
15 x Blue Sleeves to suit 16-14 AWG
5 x Yellow Sleeves to suit 12-10 AWG

Details

Products specifications

Warranty	12 Months
Cable
Type	Solder Splice Sleeves

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
