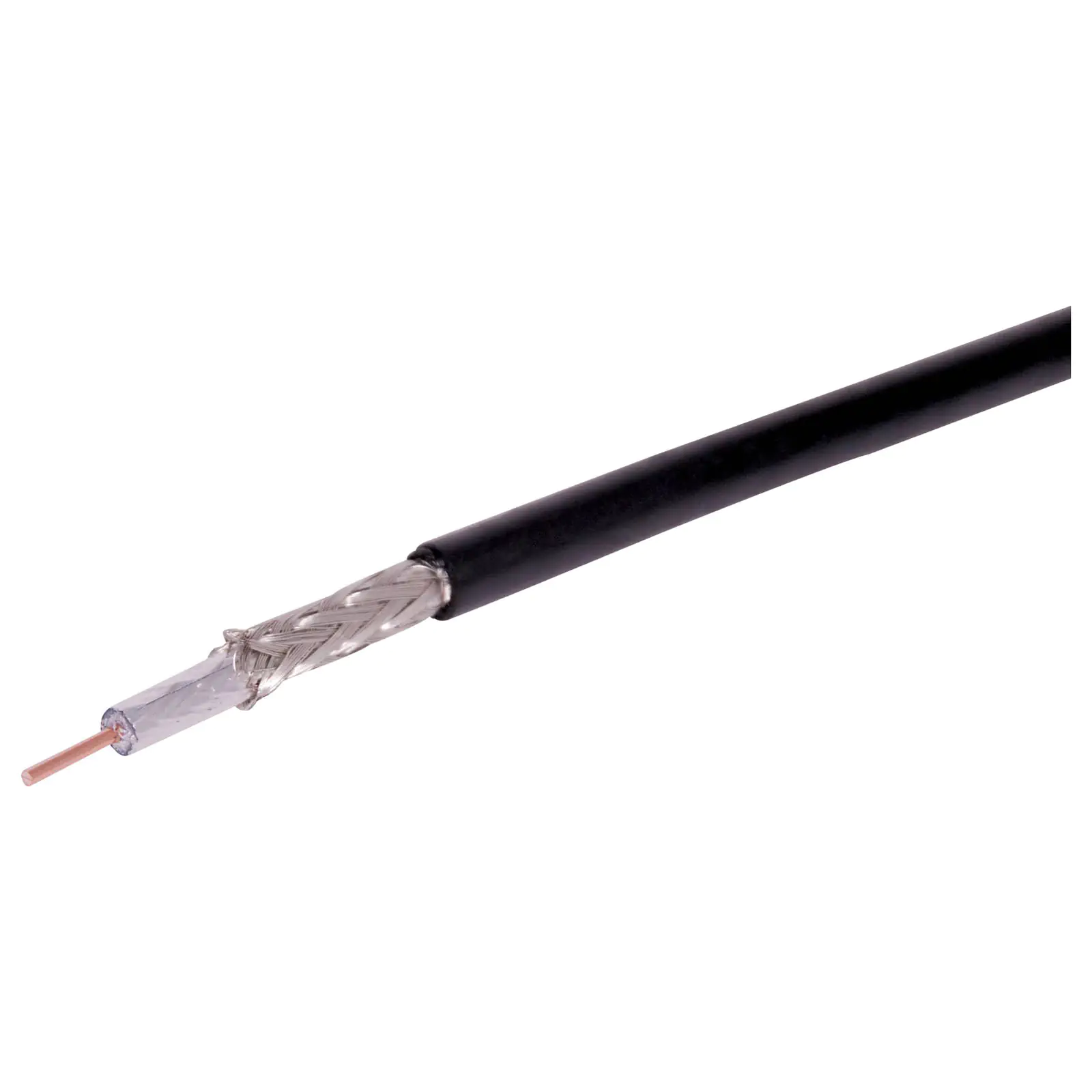

RF200 50 Ohm Low Loss Coaxial Cable

SKU: W2227
Also known as LMR-200 or LL195 cable. Available on 100m rolls.
$4.00
Per m

All Prices Shown are (ex GST)

Bulk Pricing
m $4.00
100+ $3.59
200+ $3.18
i h

Overview

A low loss 50 Ohm RF coaxial cable designed for amateur, CB radio and marine radio applications. Also known as LMR-200 or LL195 cabling.



Features:

  • Insulated by sign pressure, gas injected foamed dielectric
  • Provide supper low attenuation loss in wider frequency range
  • Maintain low loss and stable VSWR in high frequency against aging
  • Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station



Specifications:

Outside diameter: 4.95±0.15mm

Shielding size: 16/7/0.12

Conductor: 1.12mm Solid Bare copper wire

Conductor area: 0.27mm2

Insulation Nominal: 2.95mm Gas Injected foam PE

Jacket Nominal: 4.95mm Black PVC

Shield Material & Coverage: Bonded Aluminum Foil and 95% Tinned Copper Braid

Nom Imp Ohm: 50

Nom Vel Prop: 83%

Nominal Capacitance PF/m: 80



Nominal Attenuation:

30MHz : 5.8dB/100m

50MHz : 7.5dB/100m

150MHz : 13.1dB/100m

200MHz : 15.9dB/100m

450MHz : 22.8dB/100m

900MHz : 32.6dB/100m

1500MHz : 42.4dB/100m

1800MHz : 46.6dB/100m

2000MHz : 49.3dB/100m

2500MHz : 55.4dB/100m

5800MHz : 86.5dB/100m

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
