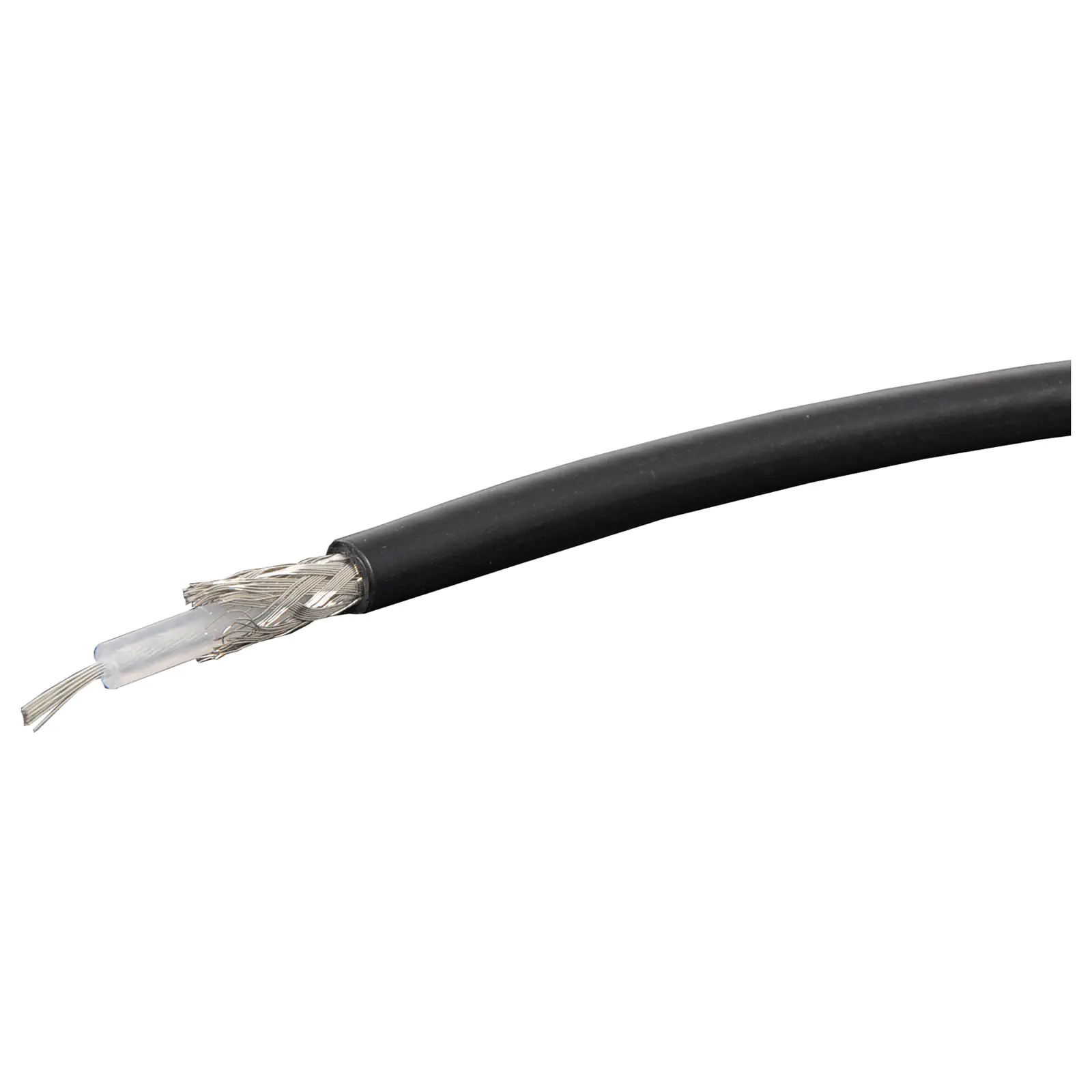

RG58C/U 50 Ohm Mil Spec Coaxial Cable

SKU: W2230
Military MIL-C-17 standard. RG58C/U. Available on 100m rolls.
$1.82
Per m

All Prices Shown are (ex GST)
Bulk Pricing
m $1.82
100+ $1.41
200+ $1.27
i h

Overview

Typically used in CBs, two way radios and marine applica- tions. Military MIL-C- 17 standard.



Features:

  • Insulated by sign pressure, gas injected foamed dielectric
  • Provide supper low attenuation loss in wider frequency range
  • Maintain low loss and stable VSWR in high frequency against aging
  • Suitable for Radio Transmission, Amateur Radio and Base Radio Antenna Station



Specifications:

Outside diameter: 4.95

Shielding size: 16/7/0.127

Conductor Area: 0.48mm2

Conductor: 19/0.18mm Stranded Tinned Copper

Insulation Nominal: 2.95mm Solid Polythylene

Loss @ 100MHz: 17.4dB/100m

Jacket Nominal: 4.95mm Black PVC

Shield Material & Coverage: 95% Tinned Copper Braid

Nom Imp Ohm: 50

Nom Vel Prop: 67%

Nominal Capacitance PF/m: 101



Nominal Attenuation:

50MHz : 10.9dB/100m

100MHz : 16.4dB/100m

200MHz : 24.0dB/100m

400MHz : 37.9dB/100m

700MHz : 55.6dB/100m

900MHz : 65.8dB/100m

1000MHz : 70.7dB/100m

Details

Products specifications

Warranty 12 Months
Cable
Type RG58C/U Coaxial Cable
