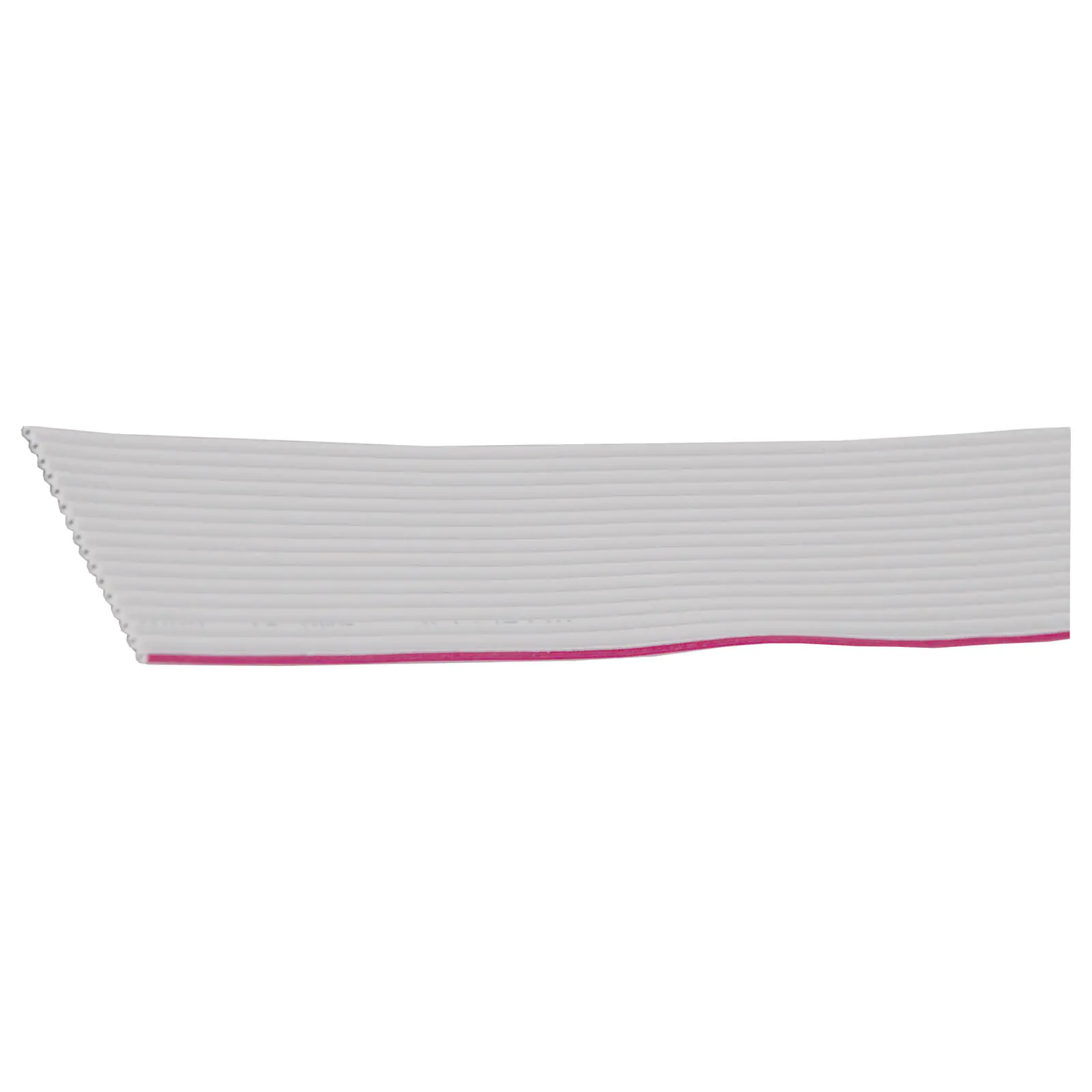

16 Wire IDC Cable

SKU: W2616
16 Way. Grey insulation. Available on 30m rolls.
$3.18
Per m

All Prices Shown are (ex GST)
Bulk Pricing
m $3.18
30+ $2.86
120+ $2.55
i h

Overview

This ribbon cable is a quick and convenient way to connect circuit boards and IDE drives. Termination is very straightforward and it is compatible with both our IDC P 5310- P5350 cable sockets and our P4120-4153 range of D-sub connectors. 16 Way, Grey insulation. 30m Reel 1.27mm pitch



Specifications:



Conductor:

Size: 28AWG (0.89mm2)

Material: tinned copper

Construction: 7/0.127mm



Insulation:

Material: Fire resistant PVC 105ºC

Average thickness: 0.26mm

Minimum thickness: 0.18mm

Diameter: 16 x 1.29±0.15mm

Colour: grey (edge with red trace)



Electric:

Conductor resistance: max. 237Ω/km, 20ºC

Insulation resistance: min. 100MΩ/km, 20ºC

Capacitance: 60pF/m (G-S-G), 42pF/m (G-S)

Inductance: 1.45µH/m

Impedance: 100±10Ω (G-S-G)

Propagation delay time 5.0ns/m

Spark test 2500V

Dielectric strength: min. 2kV in 1 minute

Rating voltage: max. 300V

Rating temperature: -20ºC to 105ºC

Standard: UL2651/CSA C22.2 No. 210.2
