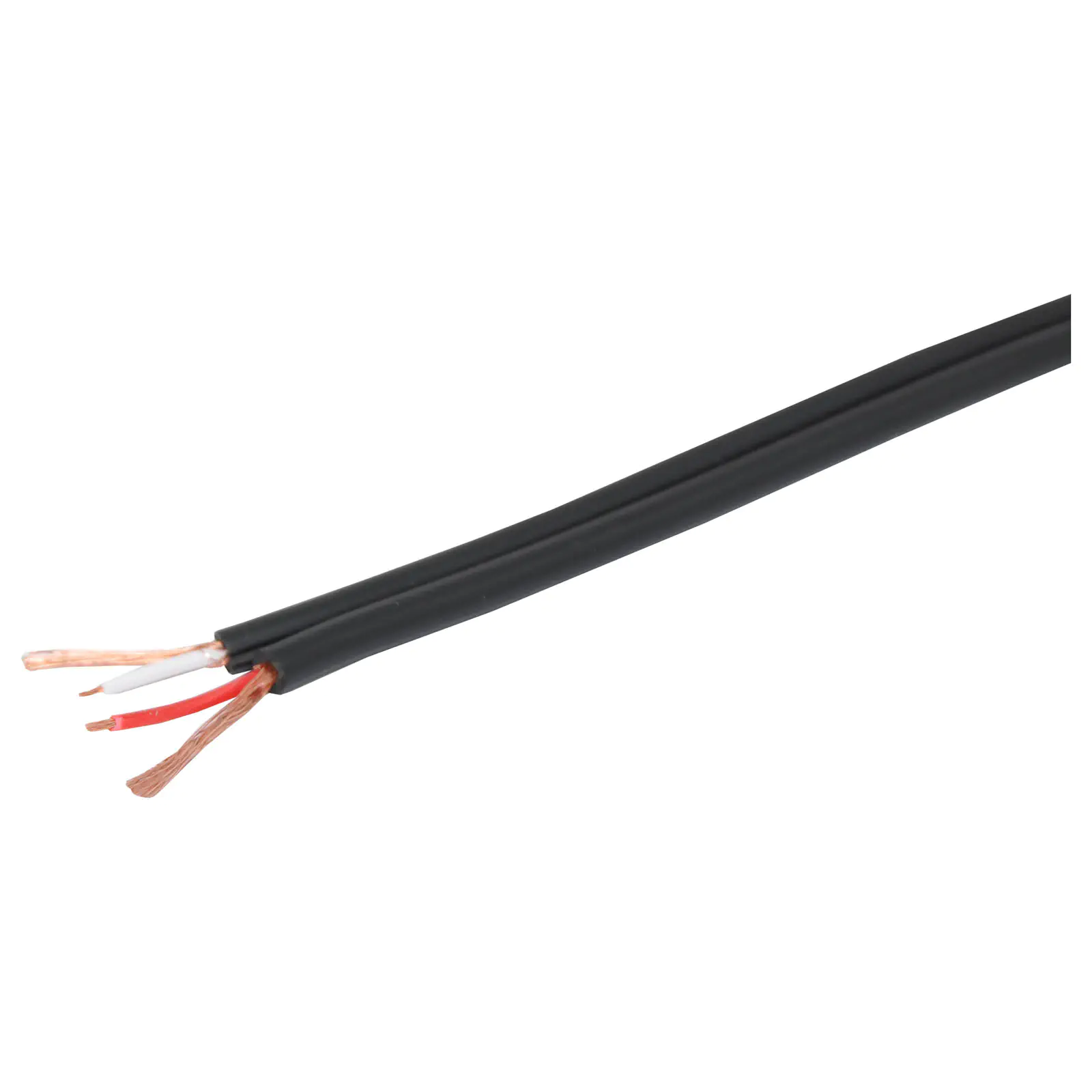

Heavy Duty Figure 8 Shielded Cable

SKU: W2995
High quality shielded audio cable suitable for use in professional and domestic sound applications. Available on 100m rolls.
$1.50
Per m

All Prices Shown are (ex GST)
Bulk Pricing
m $1.50
100+ $0.91
i h

Overview

High quality shielded audio cable suitable for use in professional and domestic sound applications. 100m roll.



Specifications:

Conductor:

Material: Bare Copper

AWG: 25AWG

Construction: 16/0.12mm ± 0.008mm

Stranded Diameter: 0.55mm

Insulation:

Material: SR-PVC

Average Thickness: 0.33mm

Insulation Diameter: 1.30mm ± 0.008mm

Core Assembly: 2 Cores

Shielded:

Material: Bare Copper

Construction: 34/0.12mm ± 0.008mm

Diameter: 1.54mm (each shielded)

Jacket:

Material: PVC

Average Thickness: 0.92mm

Cable Diameter: 3.6 x 7.2 ± 10mm

Colour:

Insulation: Red/White

Jacket: Black

Physical & Electrical Characteristics:

Maximum DC Resistance: 11.1Ω/100m @ 20°C (max)

Tensile Strength (Insulation): = 2.11kgf/mm2

Tensile Strength (Jacket): = 1.05kfg/mm2

Elongation (Insulation & Jacket): = 100%

Mechanical Characteristics:

Cold Blend: -20 ± 2°C/4hr No Crack

Packaging:

Drum Size: 100m

Details

Products specifications

Warranty 12 Months
Cable
Type Shielded Audio Cable
