Shielded Audio/Data Cable

SKU: W3036
Aluminium mylar shield with drain wire. Available on 100m rolls.
$1.32
Per m

All Prices Shown are (ex GST)
Bulk Pricing
m $1.32
300+ $1.18
600+ $1.05
i h

Overview

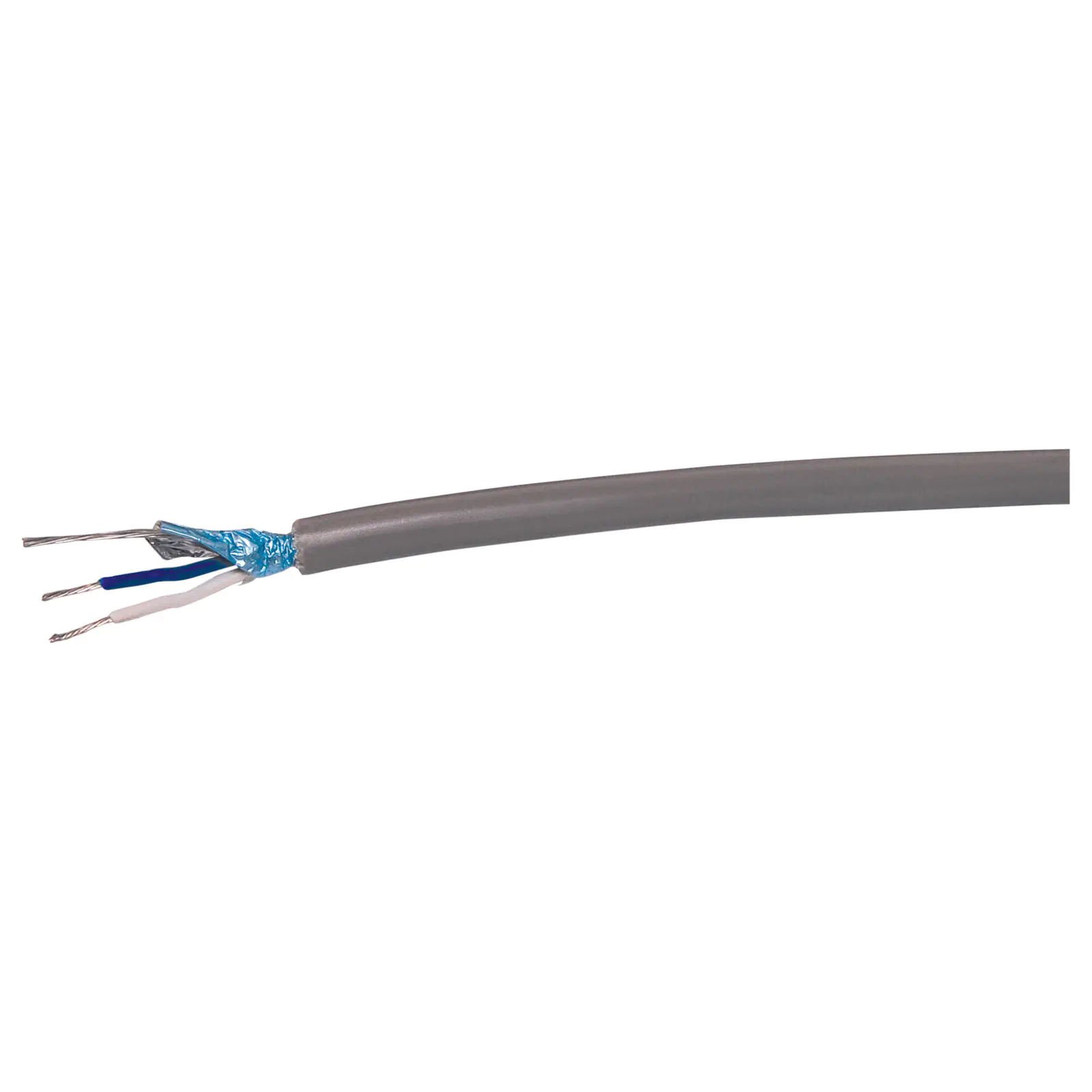

This twisted pair data cable has an aluminium mylar shield with drain wire. 15 twists per meter.



Specifications:

Conductor colours: Blue & White

Gauge: 24AWG

Material: Tinned copper

Construction: 7/0.20 +/-0.008mm

Twist pitch: 65mm



Insulation:

Standard thickness: 0.29mm

Minimum thickness: 0.25mm

Diameter: 1.20 +/-0.05mm

Material: Poly vinyl chloride

Colour: White/Blue



Drain Wire:

Material: Tinned copper

Construction: 7/0.20 +/-0.008mm

Strand Construction: 24AWG + mylar + drain wire + aluminium foil



Jacket:

Reference Thickness: 1.0mm

Diameter: 5.0 +/-0.05mm

Material: Poly vinyl chloride

Colour: Gray

Conductor Area: 0.22mm2 (24AWG)

Temperature Rating: 60ºC

Roll Size: 100m

Details

Products specifications

Warranty 12 Months
Cable
Type Shielded Audio Cable, Shielded Data Cable
