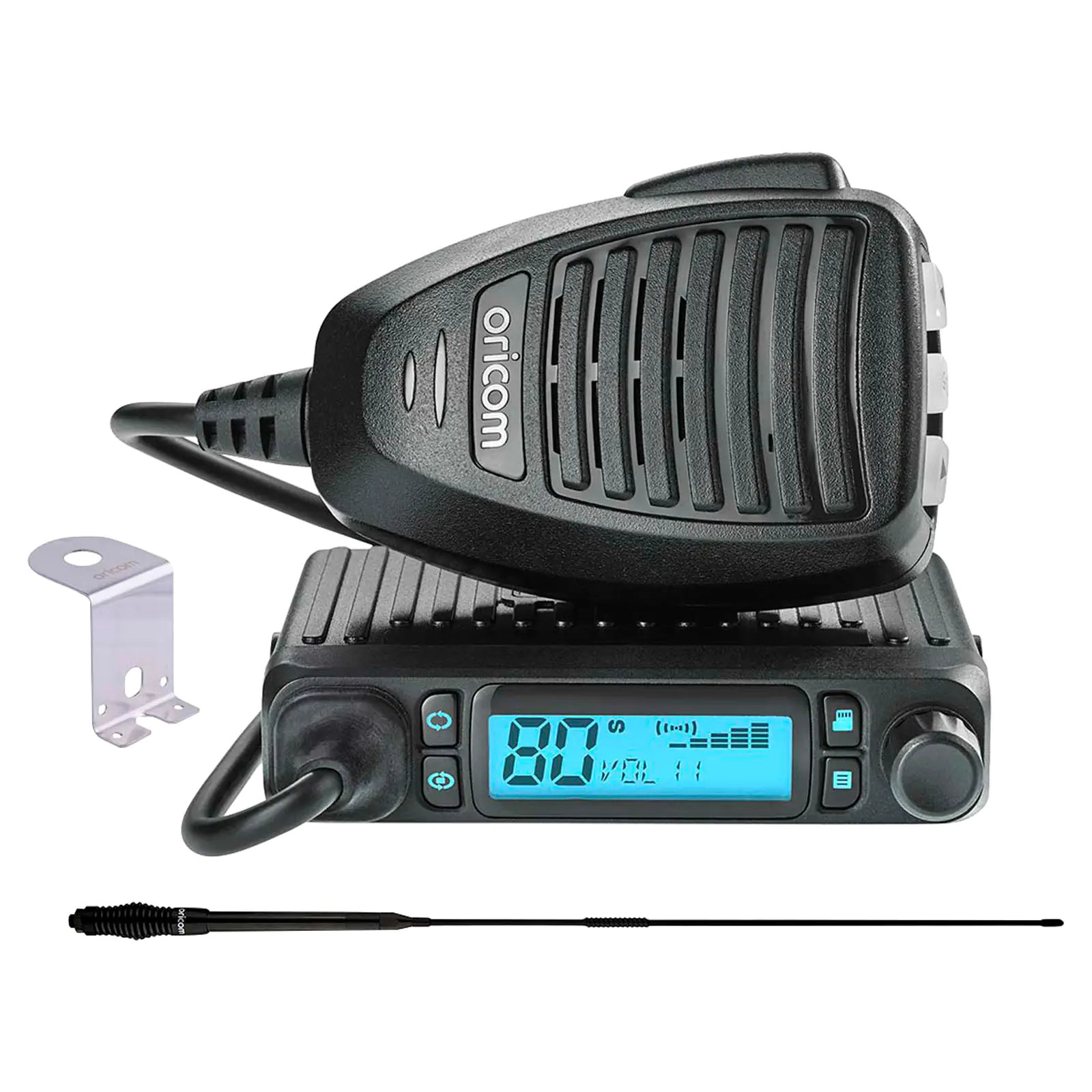

A 5W dash mount 80 channel transceiver equipped with a host of modern features and a range of up to 10km. Includes a complete set of accessories: handheld mic, cradle, antenna and mounting bracket. DTX4300PK

DTX4300PK 80Ch 5W UHF Dash Transceiver

Name: DTX4300PK 80Ch 5W UHF Dash Transceiver
SKU: X0562
Price: 231.82 AUD
Availability: InStock

by: Oricom

SKU: X0562

Save $21.82 $231.82 ~~$253.64~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$231.82 $253.64

i h

Overview
Details
Warranty
Downloads

Overview

A 5W dash mount 80 channel transceiver equipped with a host of modern features and a range of up to 10km. Includes a complete set of accessories: handheld mic, cradle, antenna and mounting bracket. This amazingly compact design is only 76W x 100D x 22Hmm.

Pack Includes:
1x Premium UHF CB Radio (DTX4300)
1x Heavy Duty Microphone (MIC110)
1x Microphone mounting bracket
1x Transceiver mounting bracket
1x 6.5dBi Antenna (ANU220)
1x Antenna Mounting Bracket (BR100)
1x Pack of supplied mounting screws
1x User Guide

Features:

5W RF power
80 channels
Flip LCD function
Automatic level control (ALC)
Heavy-duty microphone with volume control
CTCSS & DCS
7 colour backlit display
Duplex (range extender)
Open/group scan
Priority channel
Rotary channel select
Digital squelch control
Busy channel lockout

Specifications:

General:

Compliance: AS/NZS 4365:2011

Frequency Range TX/RX: 476.425 - 477.4125 MHz

Number of TX/RX Channels: 80 UHF CB Channels (75 voice)

Channel Spacing TX/RX: 12.5KHz

Operating modes: Simplex, Repeater TX offset (+750KHz)

Scanning Speed: 50 msec per channel

Antenna Impedance: 50 Ohms

Operating Volts nominal: 13.8V DC

Operating Volts Range: 10 to 16 VDC

Over Voltage Protection: Diode and Voltage regulator system

Over Current Protection: 2 AMP fuse

Reverse Polarity Protection: Shunt diode

Frequency stability: +/- 5 ppm

Transmitter:

RF Output Power: 5 watts max

Modulation: F3E(FM)

Maximum deviation: 2.5KHz

Spurious Emissions: <-30dBm

TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz

Current consumption during TX: 1.7 AMP with 50 ohm antenna termination

Receiver:

Circuit Type: Dual conversion superheterodyne

Intermediate Frequencies: 1st IF = 21.4MHz , 2nd IF = 450kHz

Maximum useable sensitivity: -123dBm for 12dB SINAD

Audio output power: 2 Watts at 8 ohm load

RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz

Mechanical:

Dimensions: 22.5 (d) x 100 (w) x 76 (h) mm

Weight: 210g transceiver only
